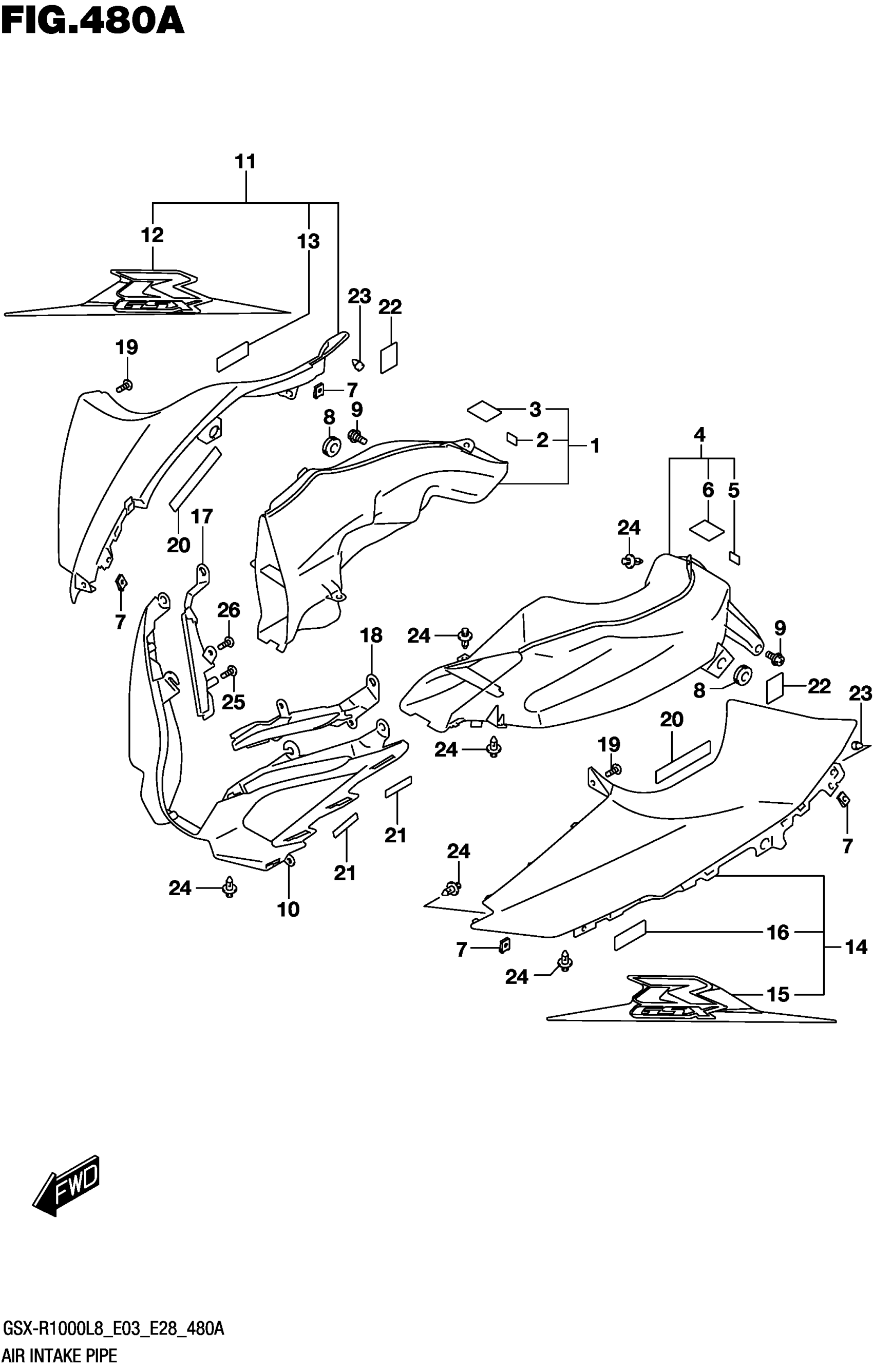

Suzuki GSX-R1000AL8 (2018) AIR INTAKE PIPE (GSX-R1000L8 E03) Diagram

#

Description
Price

1

PIPE,AIR INTAKE,R

94420-17K00

$61.28

2

CUSHION (10X10X1)

63115-37H00

$3.64

3

.CUSHION, INTAKE PIPE

36930-60A10

$2.92

4

PIPE,AIR INTAKE,L

94430-17K00

$72.08

5

CUSHION (10X10X1)

63115-37H00

$3.64

6

.CUSHION, INTAKE PIPE

36930-60A10

$2.92

7

NUT

09148-05052

$3.37

8

CUSHION

09320-08028

$3.04

9

BOLT (6X12)

09111-06106

$2.44

10

COVER, INTAKE (BLACK)

94671-17K00-YKV

$86.57

11-1

COVER, INTAKE RH (BLACK) | FOR YKV

94670-17K00-4UX

$183.10

11-2

COVER, INTAKE RH (WHITE) | FOR YWW

94670-17K10-YWW

$183.10

12-1

.TAPE, INTAKE COVER RH | FOR 4UX

68275-17K00-BQV

$42.98

12-2

.TAPE, INTAKE COVER RH | FOR YWW

68275-17K10-BQQ

$26.48

13

PAD (8X20X2)

73415-70A00

$1.56

14-1

COVER, INTAKE LH (BLACK) | FOR YKV

94680-17K00-4UX

$190.08

14-2

COVER, INTAKE LH (WHITE) | FOR YWW

94680-17K10-YWW

$183.10

15-1

.TAPE, INTAKE COVER LH | FOR 4UX

68276-17K00-BQV

$42.98

15-2

.TAPE, INTAKE COVER LH | FOR YWW

68276-17K10-BQQ

$26.48

16

PAD (8X20X2)

73415-70A00

$1.56

17

COVER,INTAKE UPPER,R

94414-17K00

$9.35

18

COVER,INTAKE UPPER,L

94415-17K00

$9.35

19

SCREW (5X12)

09132-05050

$1.92

20

CUSHION, COVER INTAKE NO.1

36930-82010

$3.05

21

CUSHION, COVER INTAKE CTR | CUT AS REQUIRED

94476-38C00

Unavailable

22

CUSHION, COVER SIDE

94633-31J00

$2.44

23

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

24

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

25

SCREW

03541-0412B

$1.49

26

SCREW

03541-0512B

$1.78
