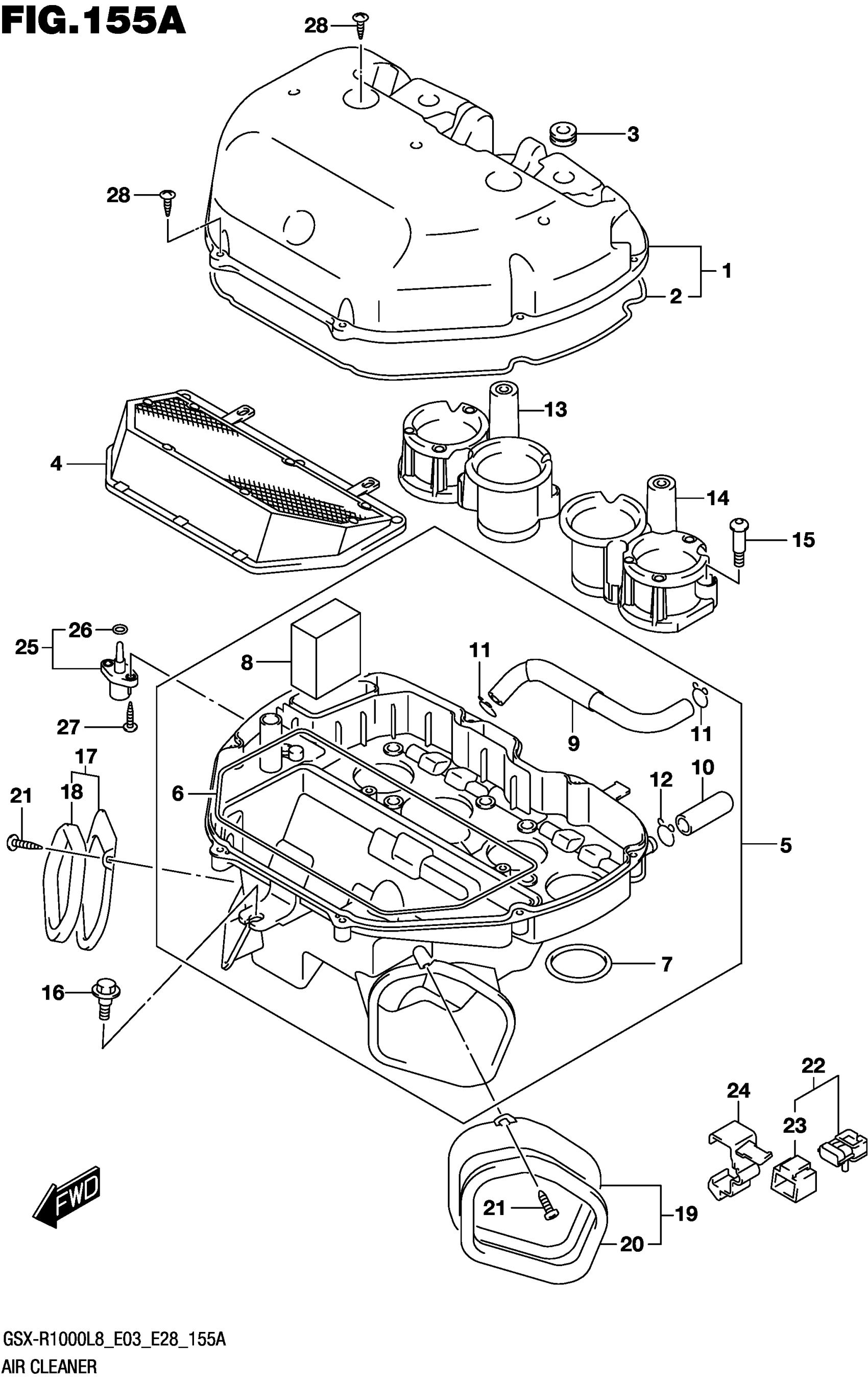

Suzuki GSX-R1000AL8 (2018) AIR CLEANER Diagram

#

Description
Price

1

CAP,AIR CLEANER This part replaces 13740-17K00.

13740-17K01

$85.80

2

.GASKET, CAP

13746-35F00

$7.82

3

.INSULATOR,INJECTOR

15911-17K00

$9.35

4

FILTER ASSY

13780-17K00

$37.94

5

CASE,AIR CLEANER This part replaces 13720-17K00.

13720-17K01

$161.88

6

.GASKET CASE A

13756-17K00

$4.63

7

.GASKET CASE B

13757-17K00

$3.22

8

.FILTER,BREATHER

13788-17K00

$7.08

9

.TUBE,BREATHER This part replaces 13853-17K00.

13853-17K01

$21.28

10

.PLUG,DRAIN This part replaces 13878-09F00.

13878-09F01

$5.48

11

.CLIP

09401-14101

$2.34

12

.CLIP

09401-14101

$2.34

13

FUNNEL OUTLET,R

13880-17K00

$54.35

14

FUNNEL OUTLET,L

13880-17K10

$54.35

15

BOLT

13831-47H00

$8.44

16

BOLT (6X16)

09111-06089

$2.62

17

PLATE,CLNR DUCT,R

13820-17K00

$31.97

18

.CUSHION,CLNR DUCT

13736-17K00

$7.96

19

PLATE,CLNR DUCT,L

13820-17K10

$31.97

20

.CUSHION,CLNR DUCT

13736-17K00

$7.96

21

SCREW

03541-0412A

$1.49

22

SENSOR,BOOST

15630-29G40

$307.68

23

.COVER

15625-29G40

Unavailable

24

HOLDER,BOOST SENSOR

15632-17K00

Unavailable

25

SENSOR, AIR TEMPERATURE

13650-14G10

$52.06

26

.O RING

13655-14G10

$9.90

27

SCREW

03511-0516A

$1.86

28

SCREW

03541-0525A

$1.98
