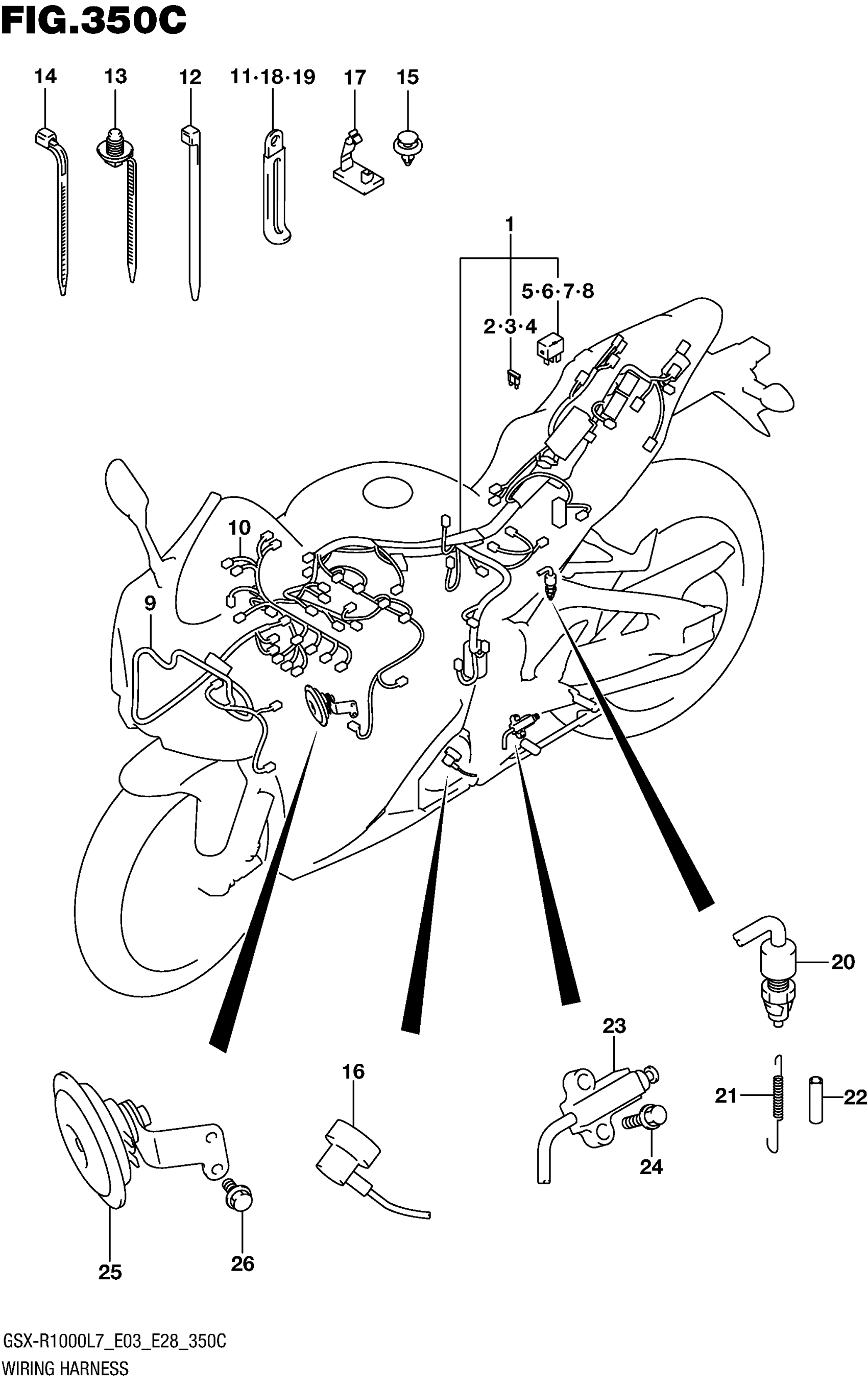

Suzuki GSX-R1000AL7 (2017) WIRING HARNESS (GSX-R1000L7 E33) Diagram

#

Description
Price

1

HARNESS, WIRING NO.1

36610-17K40

$964.25

2

.FUSE (7.5A)

09481-07504

$1.49

3

.FUSE (10A)

09481-10504

$2.06

4

.FUSE (15A)

09481-15504

$2.07

5

.RELAY | FUEL PUMP

38860-76F01

$34.37

6

.RELAY | FAN MOTOR

38860-76F01

$34.37

7

.RELAY | SIDE STAND

38860-76F01

$34.37

8

.RELAY | HEADLAMP

38860-76F01

$34.37

9

HARNESS, WIRING NO.2

36620-17K10

$250.95

10

HARNESS,WIRING NO.3 This part replaces 36630-17K10.

36630-17K11

$164.18

11

CLAMP (L:45)

09404-06429

$1.83

12

CLAMP (L:145)

09407-14407

$3.57

13

CLAMP (L:154)

09407-17403

$4.91

14

CLAMP (L:125)

09407-14403

$2.26

15

CLIP

09409-06328

$3.23

16

WIRE,OIL PRESSURE SWITCH LEAD

36851-17K00

Unavailable

17

CLAMP

09403-04310

$5.35

18

CLAMP (L:45)

09404-06429

$1.83

19

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

20

SWITCH ASSY,STOP LAMP

37740-17K00

$25.37

21

SPRING

09443-06087

$4.10

22

HOSE,5X10X600 | L:600->60 This part replaces 09352-50823-600.

44421-13ER0

$10.06

23

SWITCH ASSY,SIDE STAND This part replaces 37840-35F00.

37840-35F02

$56.65

24

BOLT

01550-0620A

$1.97

25

HORN ASSY

38500-17K00

$66.93

26

BOLT

01550-0612A

$1.97
