2017 Suzuki GSX-R1000AL7 Stand Diagram

← All diagrams

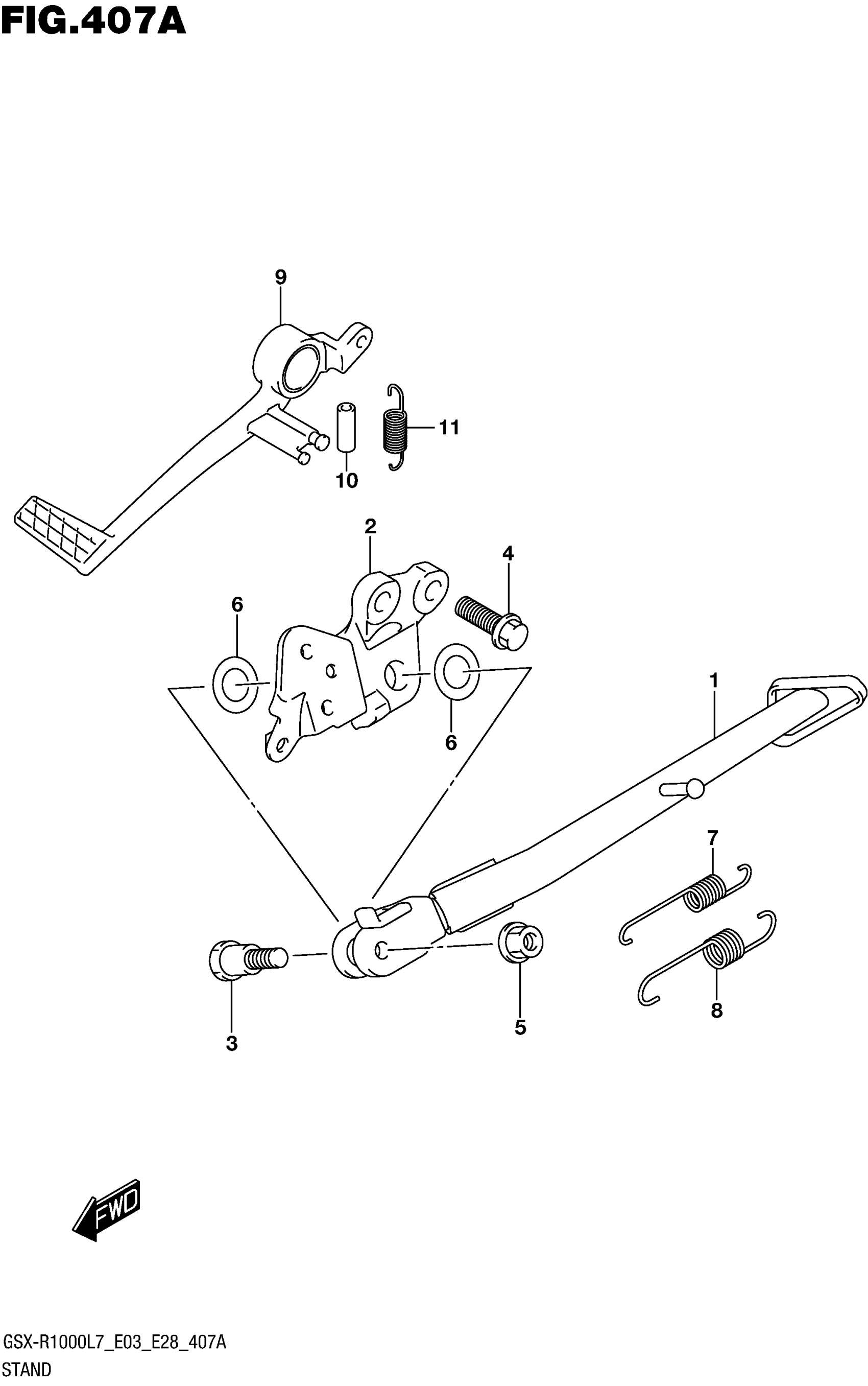

Find the part on the Stand diagram for your 2017 Suzuki GSX-R1000AL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki GSX-R1000AL7 Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND,PROP

42310-17K00

1
Out of stock

2

BRACKET,PROP STAND

42330-17K10

1
Out of stock

3

BOLT

42411-47H00

1
Out of stock

4

BOLT (10X30)

09103-10366

2
Out of stock

5

NUT

09159-10103

1
Out of stock

6

SHIM (16X28X0.5)

09181-16214

2
Out of stock

7

SPRING | NO.1

09443-14070

1
Out of stock

8

SPRING | NO.2

09443-19016

1
Out of stock

9

PEDAL,BRAKE

43110-47H10

1
Out of stock

10

HOSE | L:600->22 This part replaces 09352-11153-600.

09352-11154-600

1
Out of stock

11

SPRING

09443-11033

1
Out of stock
