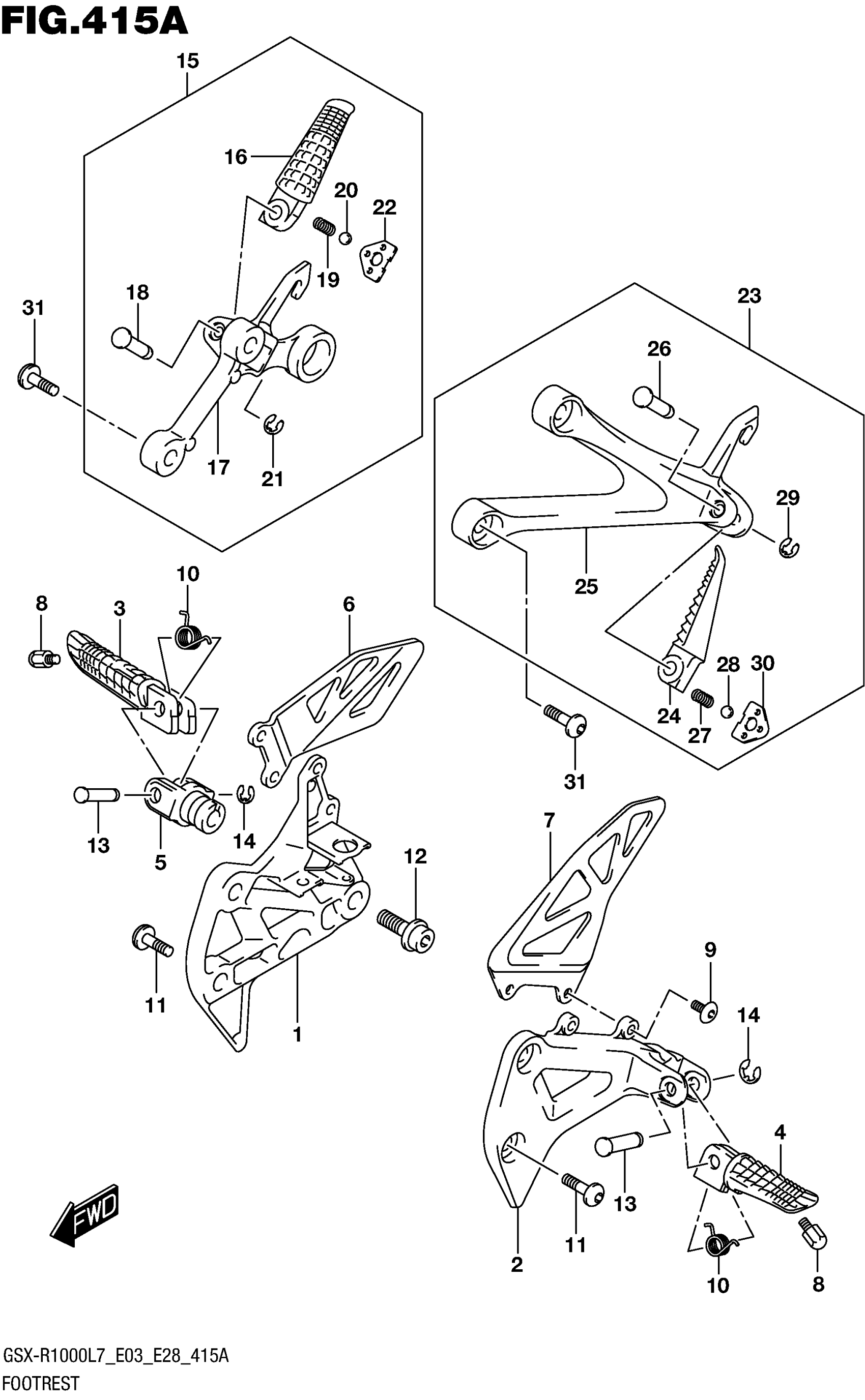

Suzuki GSX-R1000AL7 (2017) FOOTREST Diagram

#

Description
Price

1

BRACKET,FR FOOTREST,R

43511-17K00

$133.12

2

BRACKET,FR FOOTREST,L

43521-17K00

$147.03

3

BAR,FRONT FOOTREST,R

43516-37H10

$30.90

4

BAR,FRONT FOOTREST,L

43526-37H10

$47.67

5

HOLDER,FOOTREST

43531-41G20

$100.83

6

GUARD,FR FOOTREST,R

43571-17K00

$96.95

7

GUARD,FR FOOTREST,L

43576-17K00

$96.95

8

BOLT,BANK SENSOR

43576-48B40

$10.39

9

SCREW,FOOTREST GUARD,L

43577-35F10

$3.65

10

SPRING, FRONT FOOTREST

43581-47H00

$3.05

11

BOLT (8X23)

09106-08186

$3.08

12

BOLT (10X28)

09106-10064

$4.42

13

PIN

09208-08018

$2.77

14

E RING

08332-1106A

$1.43

15

FOOTREST ASSY,PILLION,R

43600-17K00

$228.36

16

BAR,PILLION FOOTREST,R

43611-37H30

$57.52

17

.BRACKET,PILLION FOOTREST,R

43811-17K00

$161.82

18

.PIN

09208-08020

$3.62

19

.SPRING

09440-05005

$1.45

20

BALL

06111-07004

$1.22

21

.E RING

08332-1106A

$1.43

22

PLATE,PILLION FOOTREST

43816-01H20

$7.43

23

FOOTREST ASSY,PILLION,L

43700-17K00

$227.23

24

BAR,PILLION FOOTREST,L

43621-37H30

$62.92

25

.BRACKET,PILLION FOOTREST,L

43821-17K00

$161.82

26

.PIN

09208-08020

$3.62

27

.SPRING

09440-05005

$1.45

28

BALL

06111-07004

$1.22

29

.E RING

08332-1106A

$1.43

30

PLATE,PILLION FOOTREST

43816-01H20

$7.43

31

BOLT (8X23)

09106-08186

$3.08
