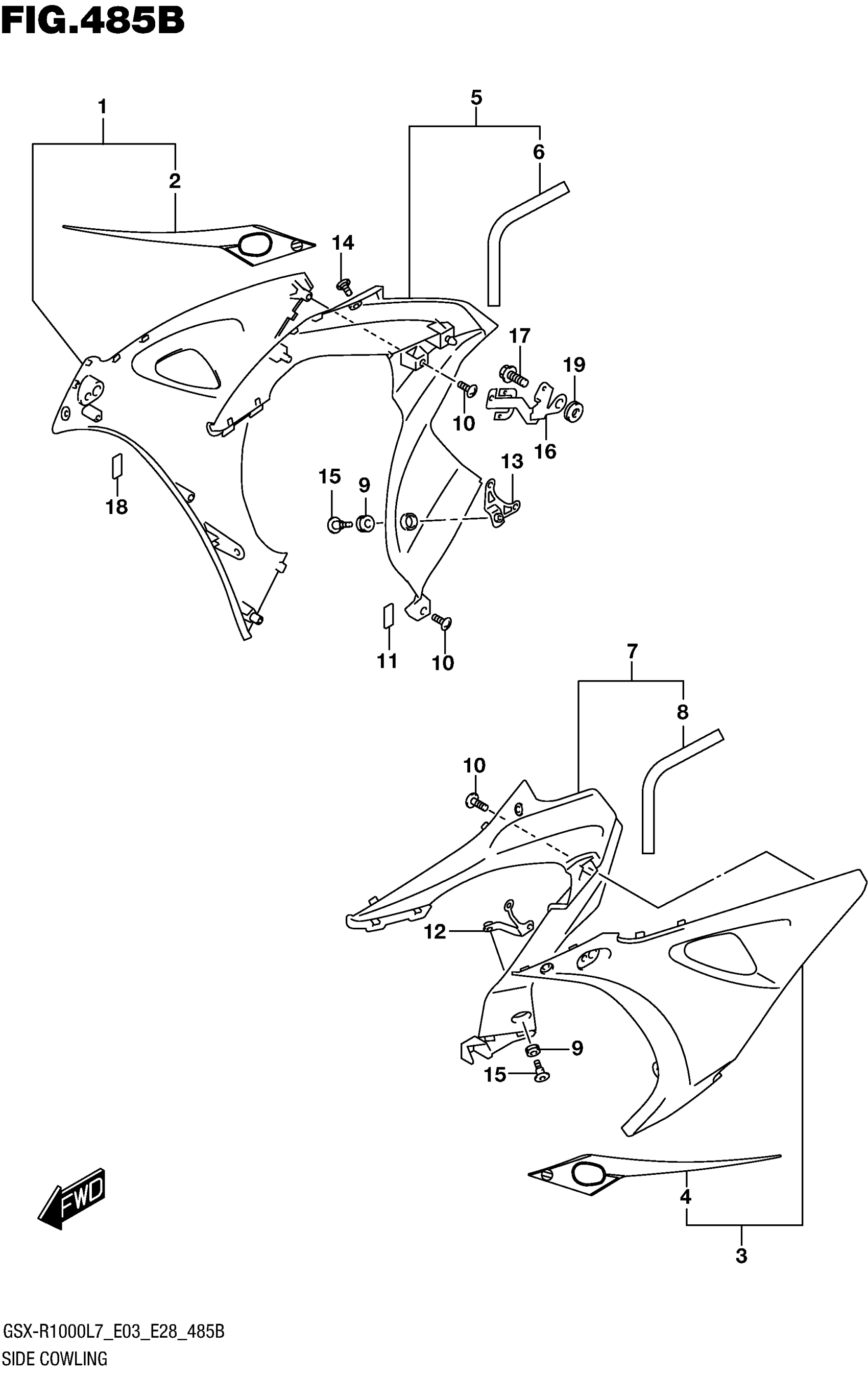

Suzuki GSX-R1000AL7 (2017) SIDE COWLING (YKV,YVZ) Diagram

#

Description
Price

1-1

COWLING, SIDE RH (BLACK) | FOR YKV

94470-17K00-YKV

$329.73

1-2

COWLING, SIDE RH (RED) | FOR YVZ

94470-17K00-YVZ

$329.73

2-1

TAPE,SIDE COWLI | FOR YKV This part replaces 68685-17K00-AX2.

68685-17K01-AX2

$32.23

2-2

TAPE,SIDE COWLI | FOR YVZ This part replaces 68685-17K00-JSP.

68685-17K01-JSP

$31.92

3-1

COWLING, SIDE LH (BLACK) | FOR YKV

94480-17K00-YKV

$329.73

3-2

COWLING, SIDE LH (RED) | FOR YVZ

94480-17K00-YVZ

$329.73

4-1

TAPE,SIDE COWLI | FOR YKV This part replaces 68695-17K00-AX2.

68695-17K01-AX2

$31.28

4-2

TAPE,SIDE COWLI | FOR YVZ This part replaces 68695-17K00-JSP.

68695-17K01-JSP

$28.07

5-1

COWLING,SIDE REAR,R (BLACK) | FOR YKV

94450-17K00-YKV

$246.50

5-2

COWLING, SIDE REAR RH (RED) | FOR YVZ

94450-17K00-YVZ

$246.50

6

.CUSHION,SIDE REAR,R NO.1

94477-17K00

$4.63

7-1

COWLING,SIDE REAR,L (BLACK) | FOR YKV

94460-17K00-YKV

$246.50

7-2

COWLING, SIDE REAR LH (RED) | FOR YVZ

94460-17K00-YVZ

$246.50

8

.CUSHION,SIDE REAR,L NO.1

94487-17K00

$2.33

9

CUSHION

09320-09016

$1.97

10

SCREW

03541-0516A

$1.37

11

CUSHION,SIDE REAR,R NO.3

94477-17K20

$2.22

12

BRACKET,UNDER COWL,L

94520-17K00

$12.32

13

BRACKET,UNDER COWL,R

94540-17K00

$3.59

14

SCREW (5X13)

09139-05091

$2.01

15

SCREW (6X20)

09139-06206

$2.99

16

BRACKET,SIDE COWL,R

94530-17K00

$30.58

17

BOLT

01550-0625A

$1.97

18

CUSHION, SIDE FRONT

36930-60A10

$2.80

19

CUSHION, UNDER COWLING

94478-14J00

$5.42
