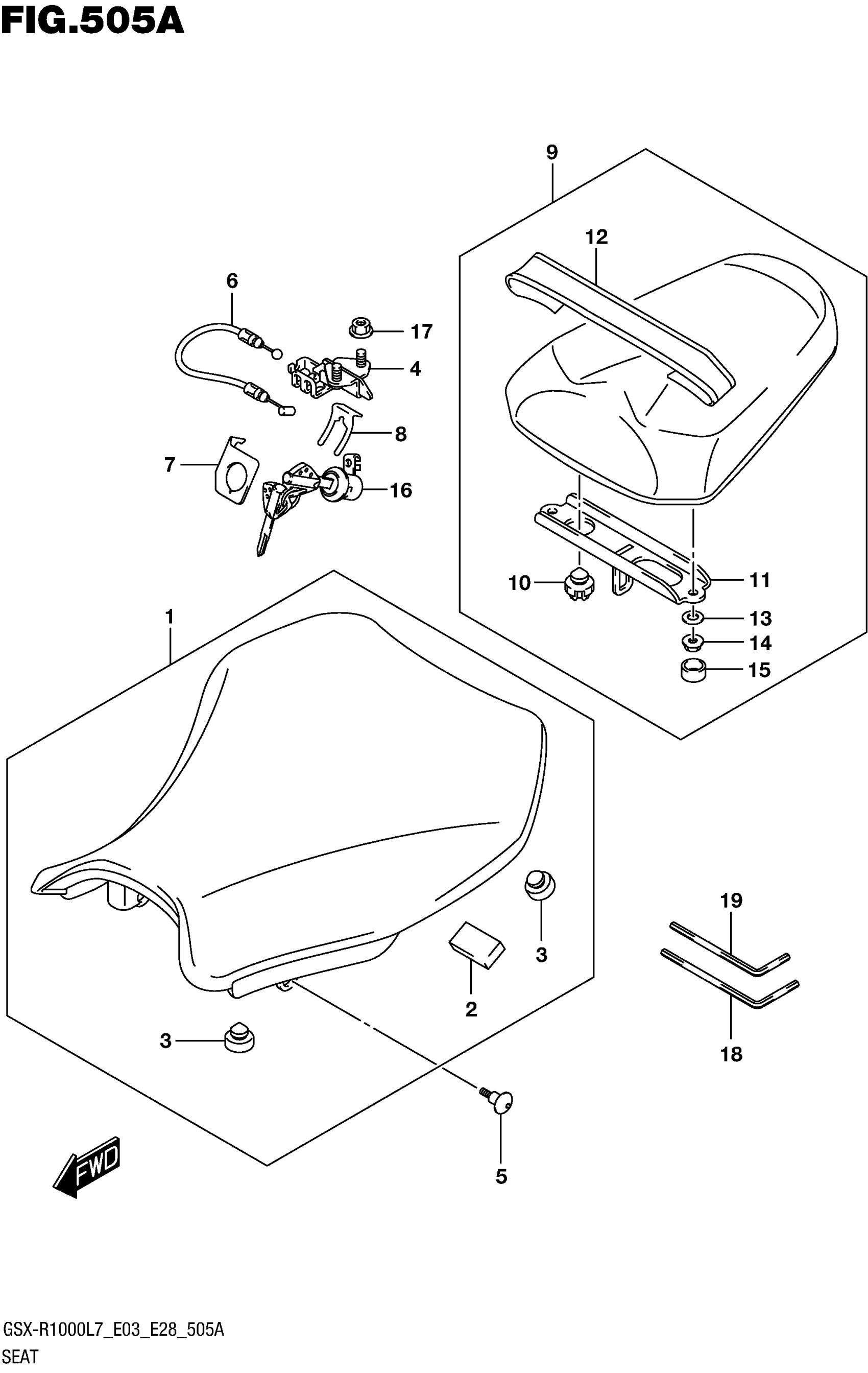

Description

Price

1

SEAT ASSY (BLACK) This part replaces 45100-17K00-W05.

45100-17K03-W05

$294.62

2

.CUSHION

45149-37H00

$6.88

3

.CUSHION (11.5X22X20)

09321-10002

$2.22

4

BRACKET,STRIKER SUPPORT

45220-04K20

$31.88

5

SCREW

45241-17K00

$3.35

6

CABLE,SEAT LOCK

45280-17K00

$15.37

7

GUIDE, SEAT LOCK CABLE

45288-14F00

$5.36

8

PLATE, SEAT LOCK ASSY

45289-11F00

$6.20

9

SEAT ASSY,PILLION (BLACK) This part replaces 45300-17K00-W05.

45300-17K02-W05

$218.58

10

.CUSHION SEAT MOUNT

45148-20G90

$5.55

11

.STRIKER

45290-17K00

$38.82

12

.BAND ASSY, SEAT (BLACK)

45380-17K00-W05

Unavailable

13

WASHER (6.5X14X2.0)

09160-06126

$1.91

14

.NUT

08316-1006A

$2.19

15

CAP (OD:13.6) This part replaces 09251-09002.

09251-09008

$4.12

16

LOCK SET, SEAT

95700-14810

$107.30

17

NUT
