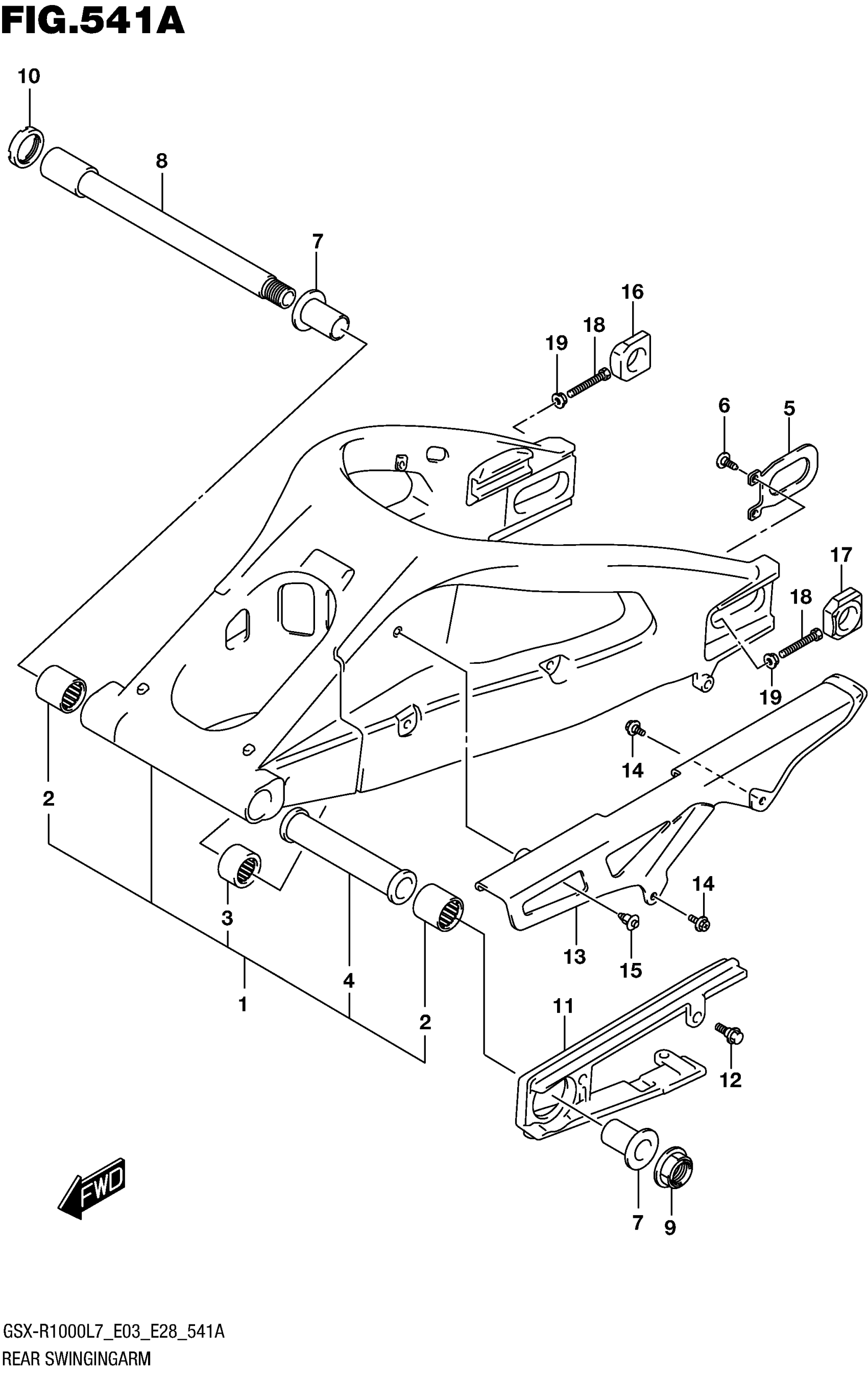

Suzuki GSX-R1000AL7 (2017) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGINGARM ASSY,REAR (BLACK) This part replaces 61000-17K00-YAP.

61000-17K01-YAP

$2,347.40

1

SWINGINGARM ASSY,REAR (BLACK) This part replaces 61000-17K00-YAP.

61000-17K01-YAP

$2,347.40

2

.BEARING (27X35X35) This part replaces 09263-27013.

09263-27015

$27.55

3

.BEARING (20X27X30)

09263-20070

$37.72

4

.SPACER, CENTER

61281-41G00

$55.68

5

PLATE,RR SWGARM BRKT

61124-41G00

$8.73

6

SCREW (6X12)

09125-06060

$1.78

7

SPACER, BEARING

61251-41G00

$38.37

8

SHAFT,RR SWINGINGARM PIVOT

61211-01H00

$171.00

9

NUT

09159-20006

$27.12

10

NUT, PIVOT

61214-42E10

$42.53

11

BUFFER,CHAIN TOUCH DEFENSE

61273-17K00

$28.28

12

BOLT (6X17.8)

09111-06072

$2.03

13

CASE, CHAIN

61311-21H00

$63.58

14

BOLT (6X12)

09111-06107

$2.60

15

CLIP (BLACK)

09409-08308-5ES

$1.97

16

ADJUSTER, CHAIN | RH

61446-40F00

$47.20

17

ADJUSTER, CHAIN | LH

61445-40F00

$47.20

18

BOLT (8X60)

09100-08305

$3.49

19

NUT

08316-1008A

$2.45
