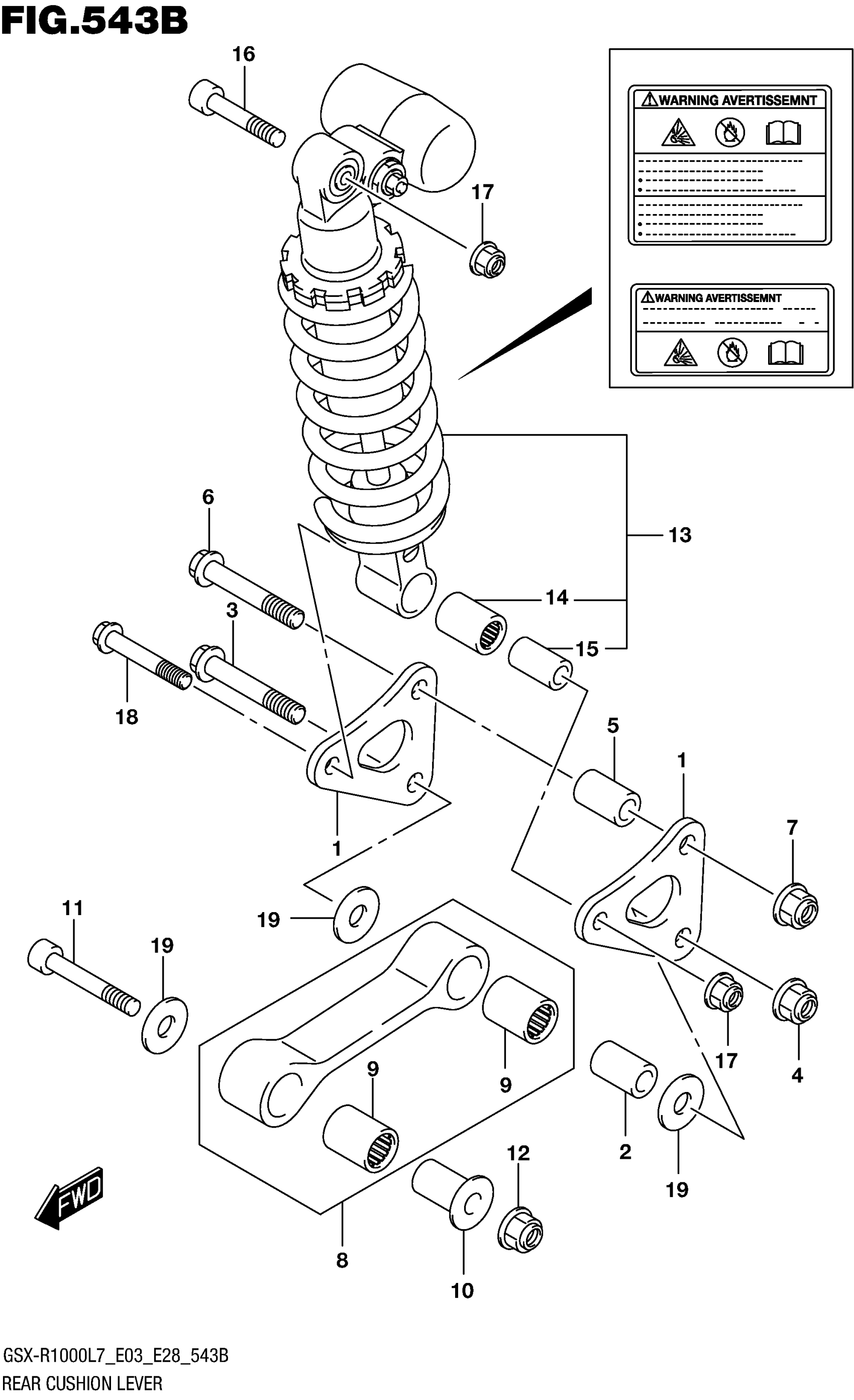

Suzuki GSX-R1000AL7 (2017) REAR CUSHION LEVER (GSX-R1000L7 E28) Diagram

#

Description
Price

1

LEVER,REAR CUSHION

62611-17K00

$27.67

2

SPACER, REAR

62317-27C10

$15.78

3

BOLT, LOWER

62658-47H00

$12.13

4

NUT

09159-12056

$6.65

5

SPACER, UPPER

62317-44B00

$23.73

6

BOLT, UPPER

62658-47H00

$12.13

7

NUT

09159-12056

$6.65

8

ROD SET,RR CUSH This part replaces 62600-47810.

62600-47811

$174.97

9

.BEARING This part replaces 09263-20074.

09263-20116

$28.11

10

SPACER, FRONT

62647-47H00

$39.83

11

BOLT,RR CUSHION ROD

62658-04K00

$16.23

12

NUT

09159-12056

$6.65

13-1

ABSORBER ASSY, REAR SHOCK | ARABIC, RUSSIAN, SPA

62100-17810-019

Unavailable

13-1

(BLACK)

62100-17810-019

Unavailable

13-2

ABSORBER ASSY, REAR SHOCK | ENGLISHE, FRENCH

62100-17820-019

$1,155.40

13-2

(BLACK)

62100-17820-019

$1,155.40

14

.BEARING (17X24X32)

09263-17046

$45.05

15

.SPACER, SHOCK ABS LOWER

62317-47H00

$23.08

16

BOLT, RR SHOCK ABSORBER UPR | UPPER

62658-04K10

$16.23

17

NUT

09159-10115

$3.21

18

BOLT | LOWER

62313-47H00

$13.50

19

WASHER (12X34X1)

09160-12037

$3.52
