2017 Suzuki GSX-R1000AL7 Handlebar Diagram

← All diagrams

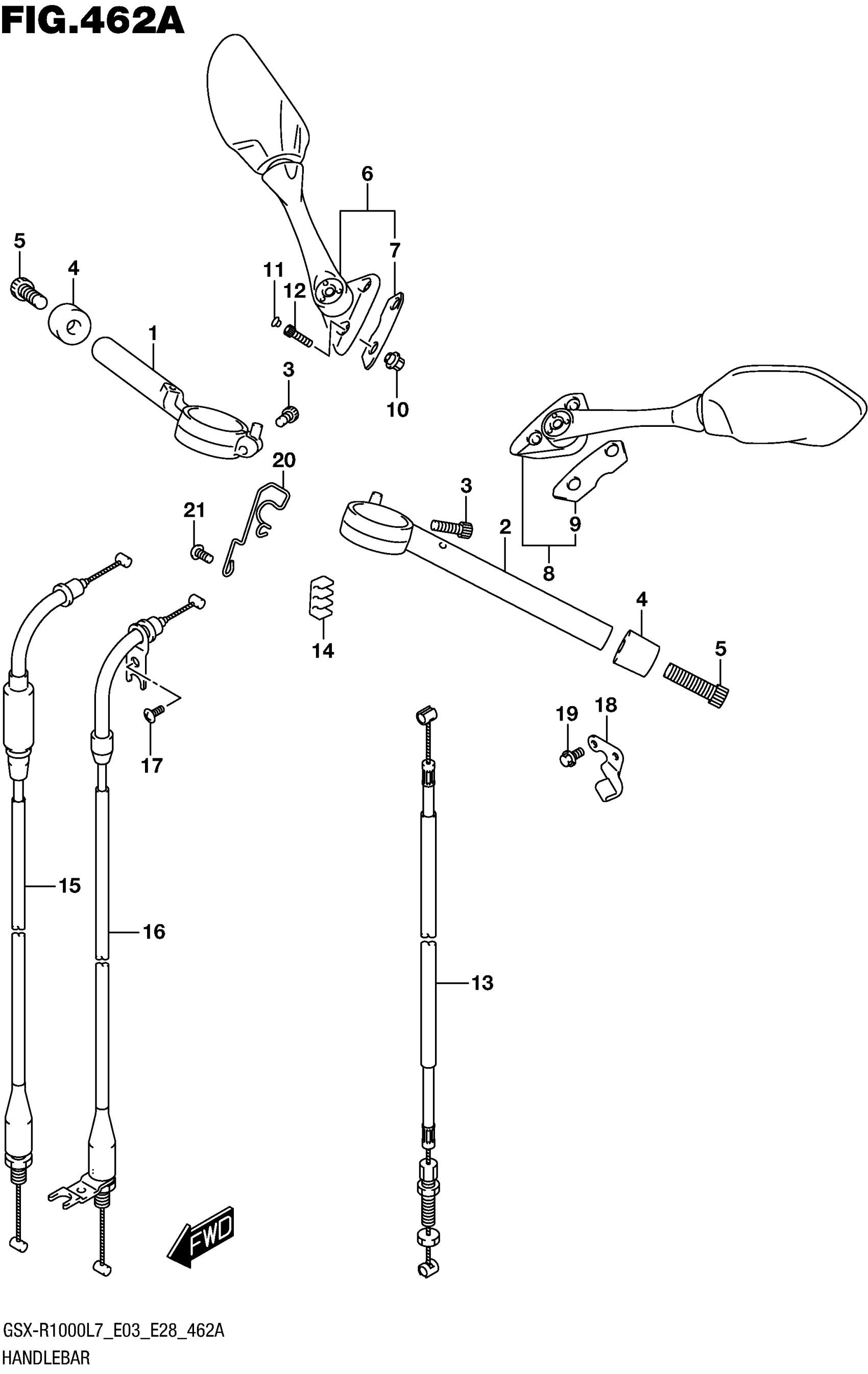

Find the part on the Handlebar diagram for your 2017 Suzuki GSX-R1000AL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki GSX-R1000AL7 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR,R This part replaces 56111-17K00.

56111-17K01

1
Out of stock

2

HANDLEBAR,L This part replaces 56151-17K00.

56151-17K01

1
Out of stock

3

BOLT (8X32)

09106-08185

2
Out of stock

4

BALANCER,HANDLEBAR

56278-17K00

2
Out of stock

5

BOLT (12X45)

09106-12001

2
Out of stock

6

MIRROR ASSY,REAR VIEW,R

56500-17K00

1
Out of stock

7

.CUSHION,MIRROR

56525-17K00

1
Out of stock

8

MIRROR ASSY,REAR VIEW,L

56600-17K00

1
Out of stock

9

.CUSHION,MIRROR

56525-17K00

1
Out of stock

10

NUT,RR VIEW MIRROR

56619-41G01

4
Out of stock

11

CAP (OD:10)

09250-05009

4
Out of stock

12

BOLT

07130-0620B

4
Out of stock

13

CABLE ASSY,CLUTCH This part replaces 58200-17K00.

58200-17K01

1
Out of stock

14

CLAMP

58285-17K00

1
Out of stock

15

CABLE ASSY,THROTTLE NO.1 This part replaces 58300-17K00.

58300-17K01

1
Out of stock

16

CABLE ASSY,THROTTLE NO.2 This part replaces 58300-17K10.

58300-17K11

1
Out of stock

17

SCREW (5X10)

09125-05042

2
Out of stock

18

STOPPER,CLUTCH CABLE

58635-17K00

1
Out of stock

19

BOLT

01550-0616A

2
Out of stock

20

GUIDE, CABLE

58621-17K00

1
Out of stock

21

SCREW (6X16)

09139-06109

2
Out of stock
