Description

Price

1

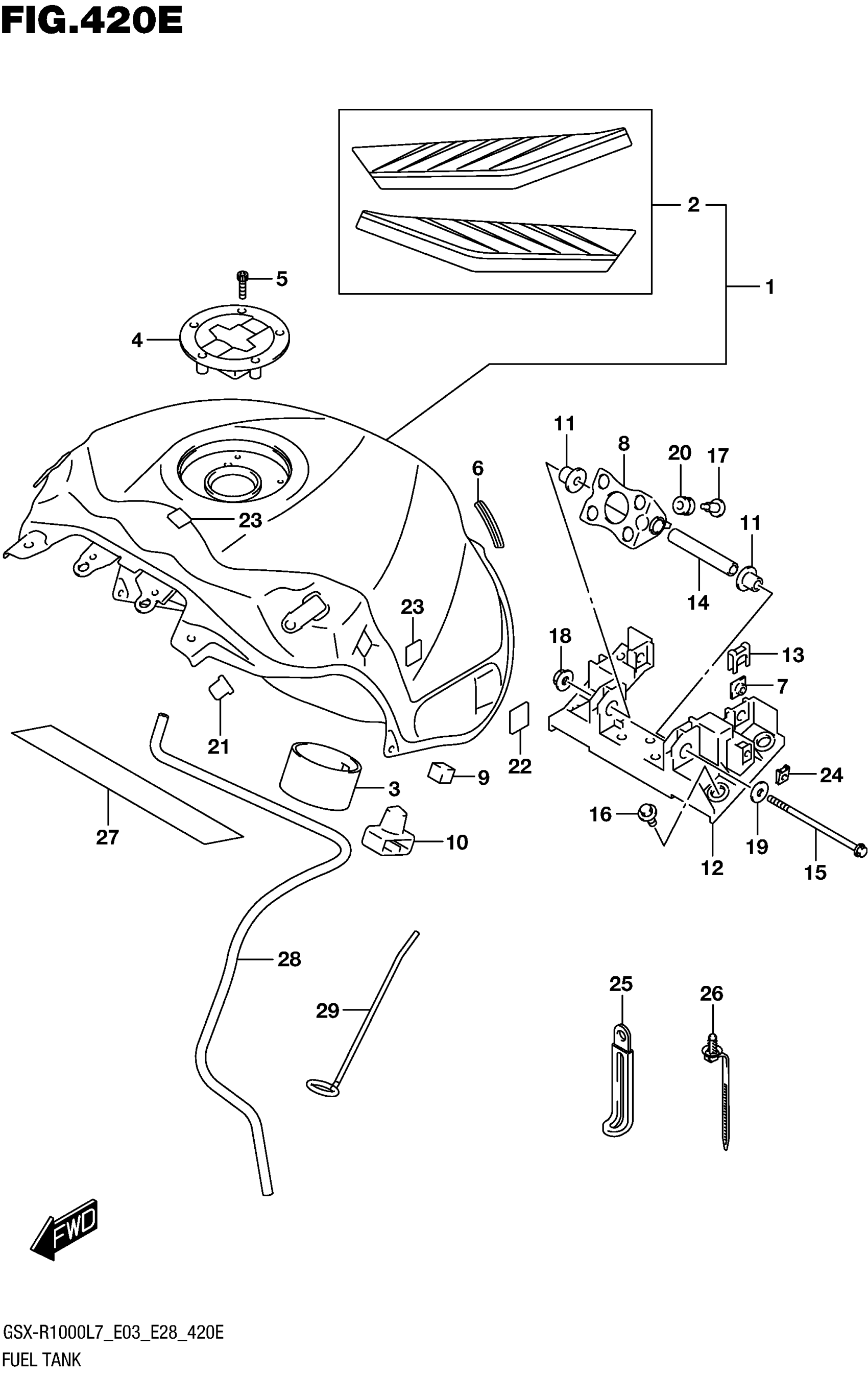

TANK ASSY, FUEL (BLUE)

44100-17KA0-YSF

$1,134.93

2

.TAPE SET, FUEL TANK

68110-17K00-BDH

$56.40

3

VESSEL,FUEL TANK INNER This part replaces 44121-17K00.

44121-17K01

$18.47

4

CAP SET,FUEL TANK FILLER

44200-17820

$242.68

5

BOLT, FUEL TANK FILLER CAP

44244-11J00

$3.76

6

MOLDING, FUEL TANK REAR

44552-24B10

$12.62

7

NUT

44523-47H00

$13.30

8

BRACKET,FUEL TANK NO.1

44530-17K00

$32.53

9

CUSHION,FUEL TANK SIDE

44541-17K00

$5.80

10

CUSHION,FUEL TANK REAR

44542-17K00

$9.08

11

SPACER,FUEL TANK REAR BRKT

44544-17K00

$8.75

12

BRACKET,FUEL TANK REAR

44551-17K00

$70.78

13

CLIP,NUT

44552-17K00

$5.90

14

SPACER, JOINT

44561-18G00

$15.52

15

BOLT (6X125)

09103-06033

$3.52

16

BOLT (6X18)

09111-06081

$3.85

17

SCREW (6X22)

09139-06191

$3.69

18

NUT (M6)

09159-06086

$2.12

19

WASHER This part replaces 09160-06012.

09160-06054

$1.62

20

CUSHION

09320-08071

$3.05

21

CUSHION,FUEL TANK COVER

44543-17K00

$4.63

22

FASTENER, COVER SIDE

44572-13G00

$10.13

23

FASTENER, COVER FRONT

44572-44G00

$9.32

24

NUT

09148-05052

$3.04

25

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.76

26

CLAMP (L:154)

09407-17403
