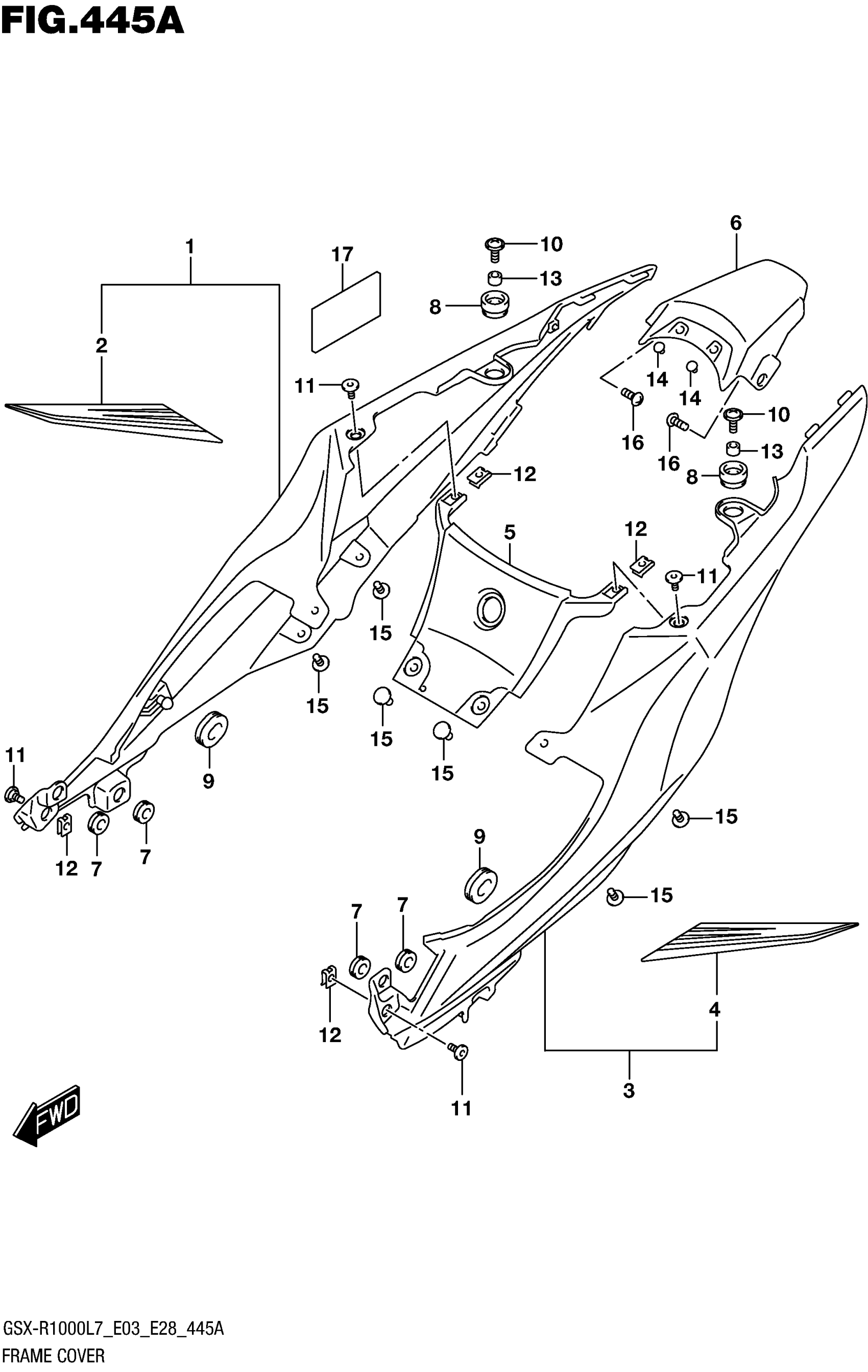

Suzuki GSX-R1000AL7 (2017) FRAME COVER (YSF) Diagram

#

Description
Price

1

COVER, FRAME RH (BLUE)

47110-17K10-YSF

$151.42

2

.TAPE, FRAME COVER RH

68135-17K10-BDH

$32.33

3

COVER, FRAME LH (BLUE)

47210-17K10-YSF

$151.42

4

.TAPE, FRAME COVER LH

68145-17K10-BDH

$32.33

5

COVER,FRAME CENTER FRONT

47311-17K00

$30.67

6

COVER, FRAME CENTER REAR

47411-17K00-YSF

$57.59

6

(BLUE)

47411-17K00-YSF

$57.59

7

CUSHION

44173-14J00

$4.16

8

CUSHION (10X24X13) This part replaces 47312-37H00.

47312-37H10

$2.91

9

CUSHION, FRAME COVER

94478-14J00

$5.92

10

SCREW (6X16)

09139-06139

$3.23

11

SCREW (5X13)

09139-05092

$2.25

12

NUT

09148-05052

$3.37

13

SPACER (6.5X10X7)

09180-06283

$1.91

14

PLUG (OD:10) This part replaces 09250-06012.

09250-06017

$2.71

15

CLIP

09409-06328

$3.23

16

SCREW

03541-0516A

$1.49

17

CUSHION

33652-17K10

$3.88
