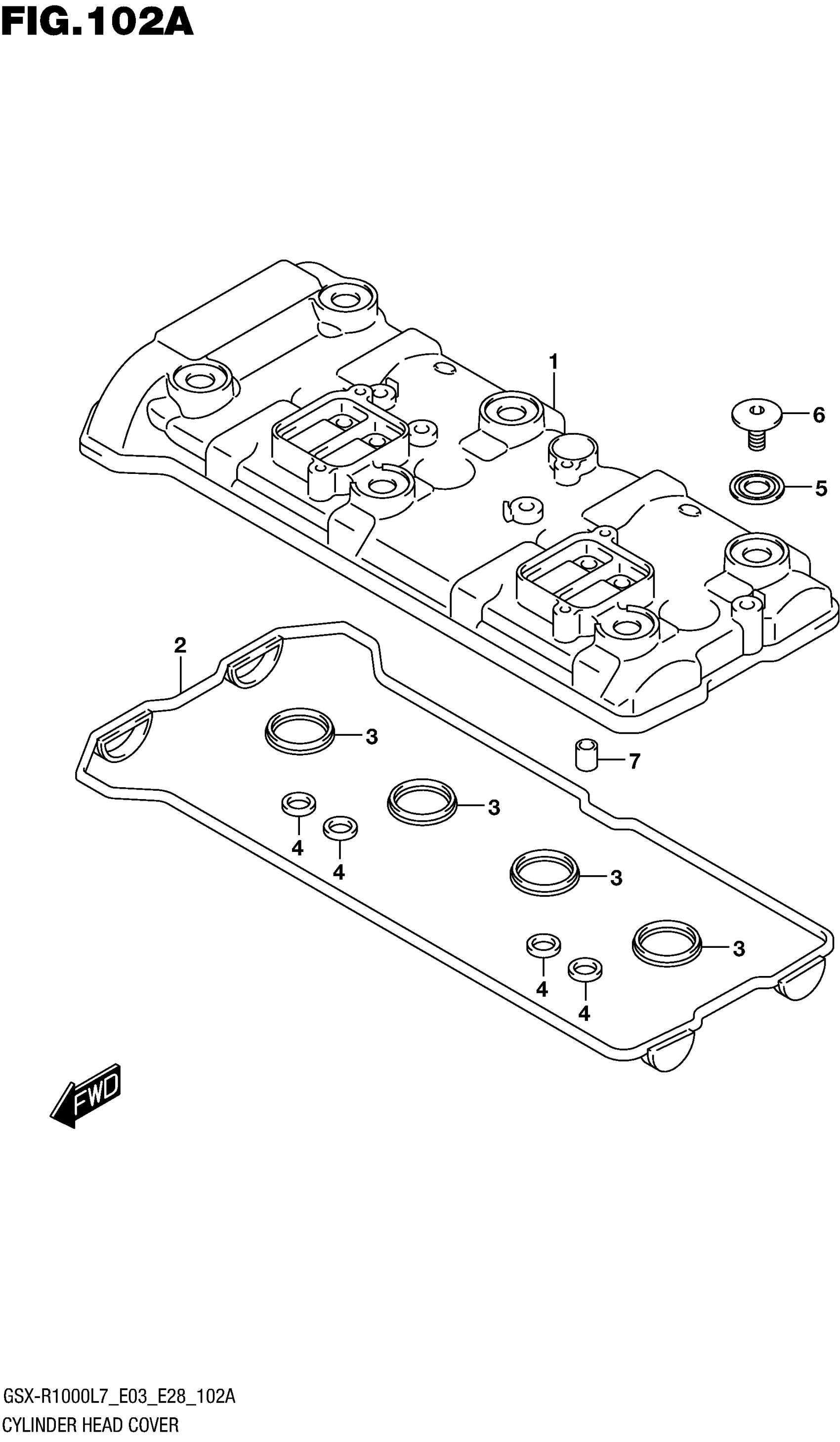

Suzuki GSX-R1000AL7 (2017) CYLINDER HEAD COVER Diagram

#

Description

Price

1

COVER,CYLINDER HEAD

11171-17K00

$375.05

2

GASKET, HEAD COVER

11173-17K00

$38.02

3

GASKET, HEAD COVER NO.2

11178-33E00

$6.20

4

GASKET, 2ND AIR PASSAGE

11182-35F10

$4.72

5

WASHER

11191-27E00

$4.27

6

BOLT (7X17.5)

09106-07021

$4.50

7

PIN (8.2X10X13)

09206-10016

$8.04
