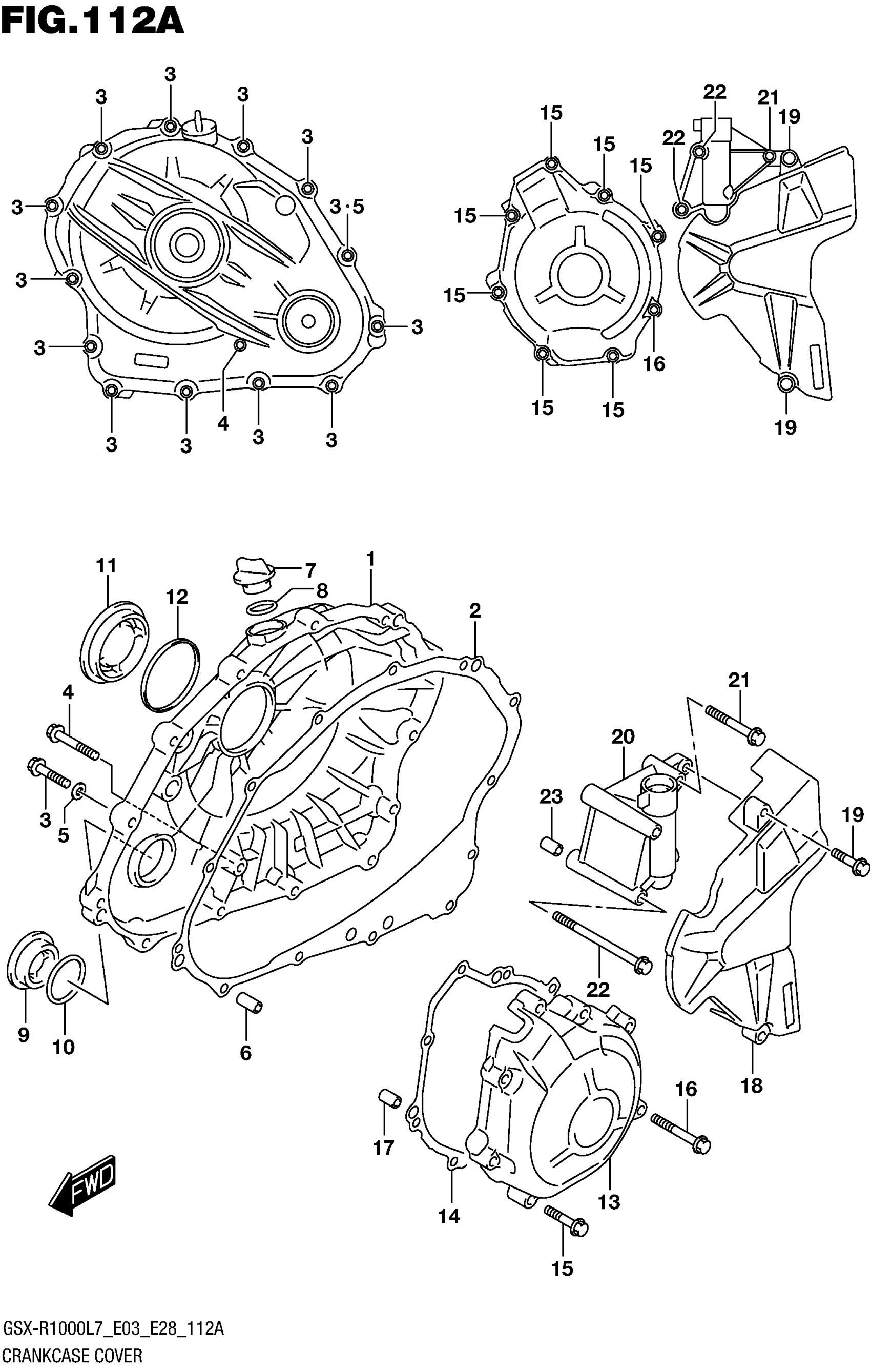

Suzuki GSX-R1000AL7 (2017) CRANKCASE COVER Diagram

#

Description
Price

1

COVER,CLUTCH

11341-17K00

$260.09

2

GASKET, CLUTCH COVER

11482-17K00

$15.24

3

BOLT (6X30)

09103-06213

$2.47

4

BOLT (6X40)

09103-06215

$2.78

5

GASKET (5.8X13X1.2)

09168-06023

$2.35

6

PIN

04211-09189

$1.65

7

PLUG,ENGINE OIL FILLER

11971-25D00

$5.11

8

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

9

PLUG (36X10)

09259-36021

$13.80

10

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

11

CAP,CLUTCH RELEASE ADJUST

11342-41G10

$25.03

12

O RING

31156-17E00

$4.60

13

COVER,MAGNETO

11351-17K01

$137.01

14

GASKET, MAGNETOCOVER

11483-17K00

$8.40

15

BOLT (6X30)

09103-06213

$2.47

16

BOLT (6X45)

09103-06224

$2.70

17

PIN

04211-09149

$1.65

18

COVER,ENG SPROCKET

11360-17K00

$21.40

19

BOLT

01550-0625B

$2.42

20

HOLDER,CLUTCH RELEASE

11371-17K00

$126.97

21

BOLT

01547-0645A

$2.42

22

BOLT

01547-0690A

$2.70

23

PIN

04211-09149

$1.65
