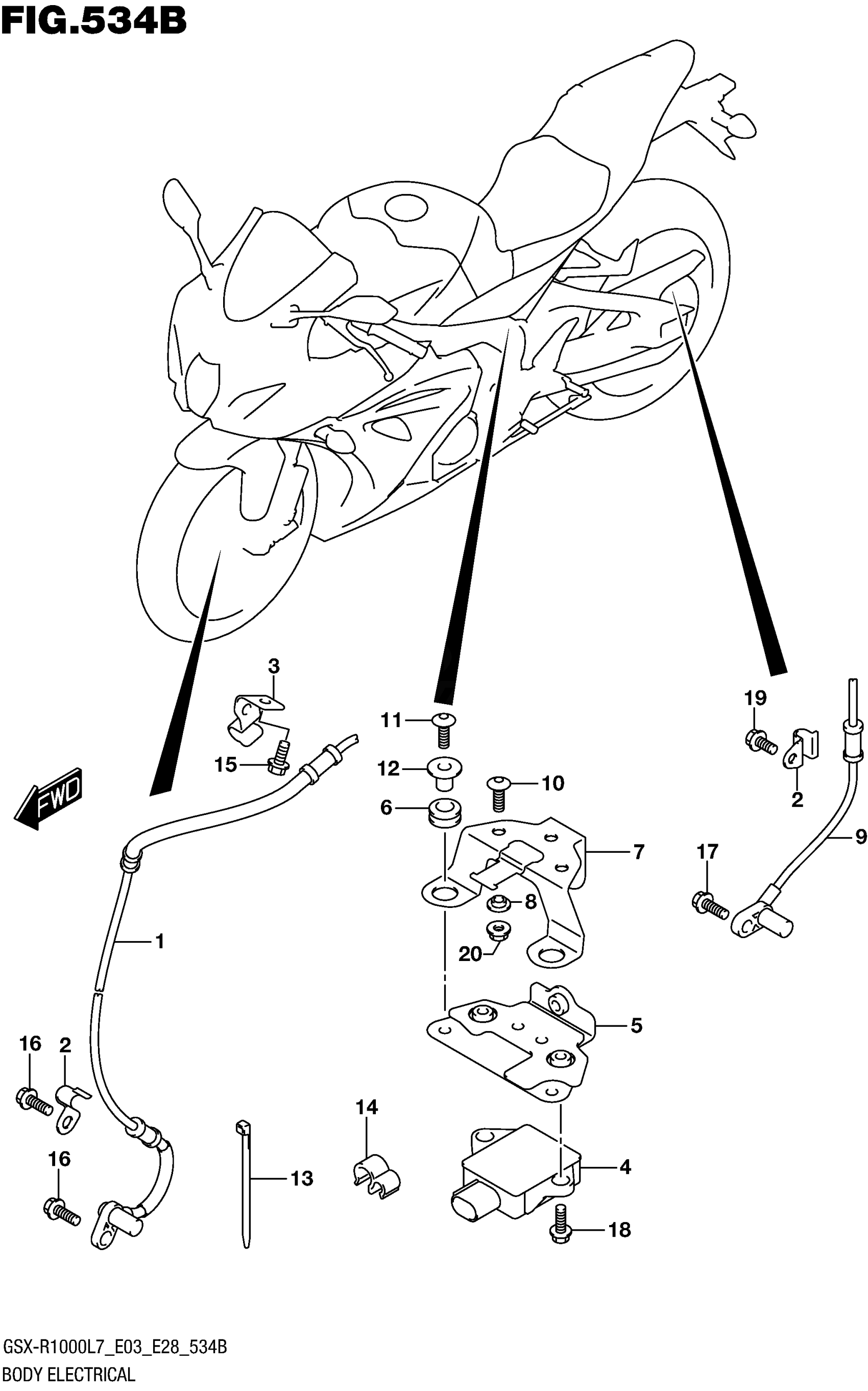

Suzuki GSX-R1000AL7 (2017) BODY ELECTRICAL (GSX-R1000L7 E28) Diagram

#

Description
Price

1

SENSOR, FR WHEEL SPEED

55710-17K10

$145.45

2

CLAMP, ABS SENSOR FR

55731-15H00

$4.83

3

CLAMP, FR WHL SPD SENSOR

55732-17K00

Unavailable

4

SENSOR, INERTIAL

55750-17K00

Unavailable

5

HOLDER,INERTIAL SENSOR This part replaces 55760-17K00.

55760-17K10

$30.02

6

RUBBER,INERTIAL SENSOR MTG

55763-17K00

$4.77

7

BRACKET,SENSOR HOLDER

55770-17K00

$45.33

8

SPACER,SENSOR HOLDER BRKT

55772-17K00

$11.33

9

SENSOR,RR WHEEL SPEED

65710-17K00

$65.94

10

SCREW (6X16)

09139-06139

$3.23

11

BOLT

09139-06208

$3.25

12

SPACER (6.2X8.4X10.9)

09180-06331

$4.77

13

CLAMP (L:145)

09407-14407

$3.57

14

CLAMP

09408-00266

$2.51

15

BOLT

01550-0612A

$1.97

16

BOLT

01547-0616B

$2.45

17

BOLT

01547-0616B

$2.45

18

BOLT

07120-0616A

$2.53

19

BOLT

01547-0612A

$2.03

20

NUT

08316-1006A

$2.19
