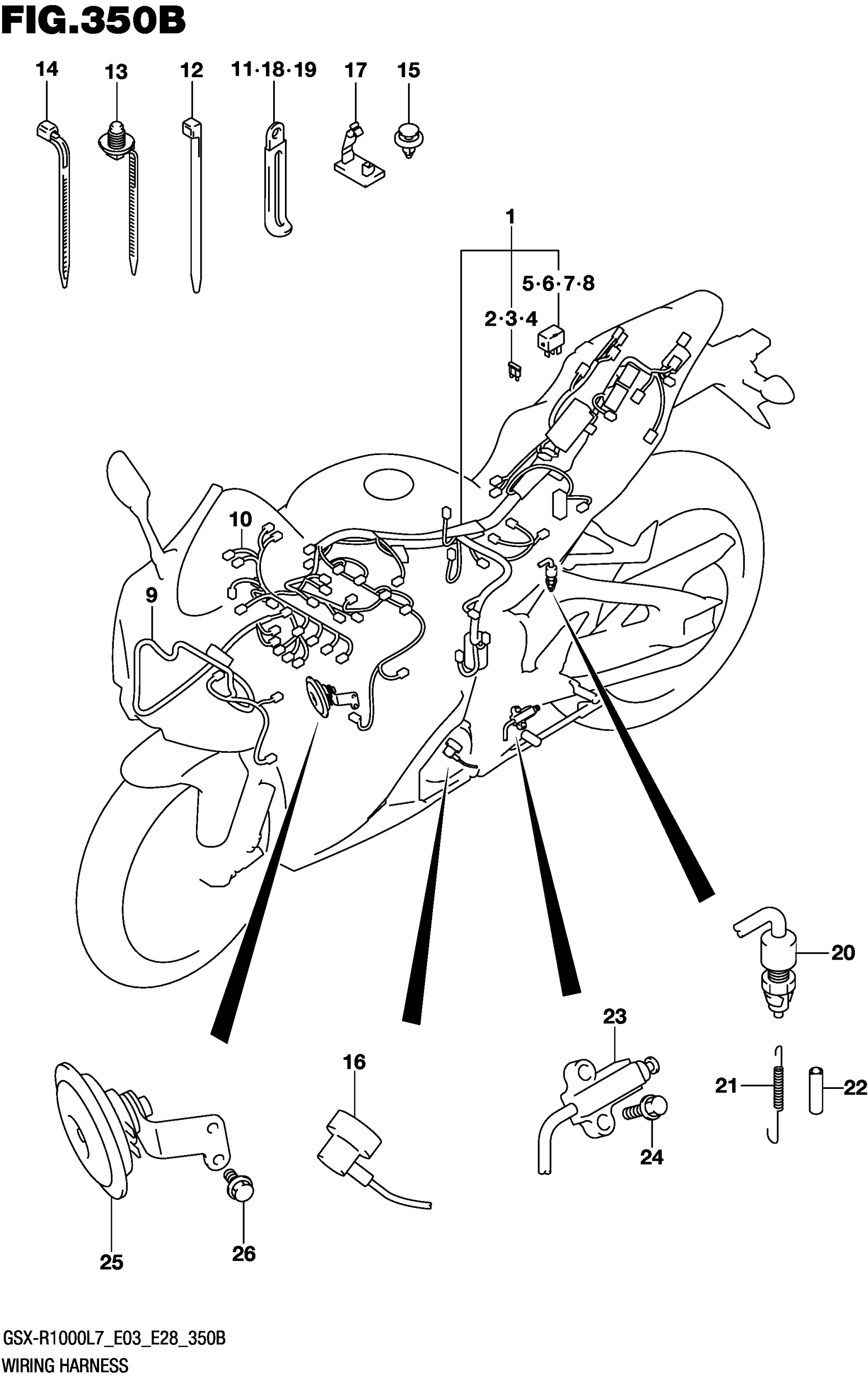

Suzuki GSX-R1000AL (2017) WIRING HARNESS (GSX-R1000L7 E28) Diagram

#

Description
Price

1

HARNESS, WIRING NO.1

36610-17K40

$1,057.50

2

.FUSE (7.5A)

09481-07504

$1.28

3

.FUSE (10A)

09481-10504

$2.04

4

.FUSE (15A)

09481-15504

$2.57

5

.RELAY | FUEL PUMP

38860-76F01

$31.02

6

.RELAY | FAN MOTOR

38860-76F01

$31.02

7

.RELAY | SIDE STAND

38860-76F01

$31.02

8

.RELAY | HEADLAMP

38860-76F01

$31.02

9

HARNESS, WIRING NO.2

36620-17K10

$279.25

10

HARNESS,WIRING NO.3

36630-17K00

$223.95

11

CLAMP (L:45)

09404-06429

$1.82

12

CLAMP (L:145)

09407-14407

$2.80

13

CLAMP (L:154)

09407-17403

$4.63

14

CLAMP (L:125)

09407-14403

$2.24

15

CLIP

09409-06328

$2.92

16

WIRE,OIL PRESSURE SWITCH LEAD

36851-17K00

Unavailable

17

CLAMP

09403-04310

$5.82

18

CLAMP (L:45)

09404-06429

$1.82

19

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.76

20

SWITCH ASSY,STOP LAMP

37740-17K00

$28.63

21

SPRING

09443-06087

$4.45

22

HOSE,5X10X600 | L:600->60 This part replaces 09352-50823-600.

44421-13ER0

$9.08

23

SWITCH ASSY,SIDE STAND This part replaces 37840-35F00.

37840-35F02

$45.34

24

BOLT

01550-0620A

$1.97

25

HORN ASSY

38500-17K00

$75.55

26

BOLT

01550-0612A

$1.97
