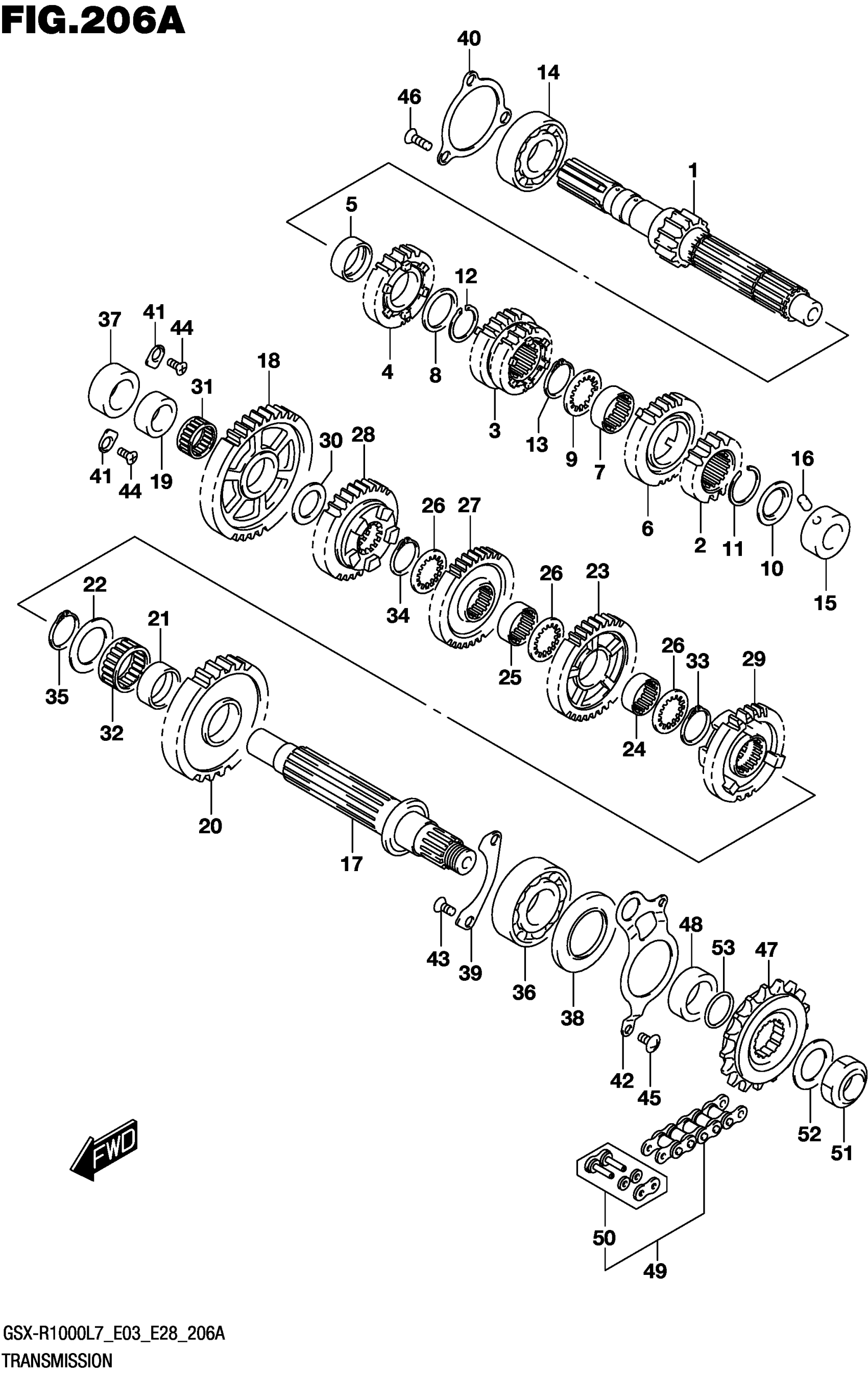

Suzuki GSX-R1000AL (2017) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, CNTR (NT:16)

24120-17K00

$267.97

2

GEAR,2ND DRIVE (NT:19)

24221-40F30

$118.08

3

GEAR, 3RD & 4TH DRIVE

24231-47H10

$156.55

3

(NT:21/24)

24231-47H10

$156.55

4

GEAR,5TH DRIVE (NT:25)

24251-47H20

$124.72

5

BUSH,5TH DRIVE GEAR

24252-24F20

$55.28

6

GEAR,6TH DRIVE (NT:26)

24261-47H20

$124.72

7

BUSH,6TH DRIVE GEAR

24262-24F20

$36.82

8

WASHER (27X36X1)

09160-27008

$3.68

9

LOCK WASHER

09167-27001

$3.63

10

OIL SEAL (20X31.2X2.7)

09285-20006

$6.51

11

CIRCLIP

09380-27004

$3.70

12

CIRCLIP

09380-27006

$2.73

13

CIRCLIP

09380-27006

$2.73

14

BEARING | RH

09262-25001

$53.05

15

BEARING | LH

09263-20114

$66.93

16

PIN

04221-07129

$1.86

17

SHAFT,DRIVE

24131-17K00

$239.78

18

GEAR,1ST DRIVEN (NT:41)

24311-47H00

$171.00

19

SPACER, IST DRIVEN GEAR

24315-17K00

$28.62

20

GEAR,2ND DRIVEN (NT:39)

24321-17K00

$126.32

21

BUSH,2ND DRIVEN GEAR

24322-17K00

$31.75

22

WASHER,2ND DRIVEN GEAR

24323-17K00

$5.10

23

GEAR,3RD DRIVEN (NT:36)

24331-47H20

$126.32

24

BUSH, 3RD DRIVEN GEAR

24332-24F20

$36.82

25

BUSH, 4TH DRIVEN GEAR

24332-24F20

$36.82

26

WASHER, 3RD & 4TH DRIVEN

24333-47H00

$7.77

27

GEAR,4TH DRIVEN (NT:36)

24341-47H10

$186.30

28

GEAR,5TH DRIVEN (NT:34)

24351-47H00

$171.00

29

GEAR,6TH DRIVEN (NT:33)

24361-17K00

$129.25

30

SHIM (24X34X1)

09181-24005

$3.55

31

BEARING (24X28X13)

09263-24030

$25.37

32

BEARING (35X40X12)

09263-35045

$22.75

33

CIRCLIP

09380-30009

$3.49

34

CIRCLIP

09380-30009

$3.49

35

CIRCLIP

09380-30009

$3.49

36

BEARING | LH

09262-30001

$56.35

37

BEARING | RH

09263-22074

$66.93

38

OIL SEAL

09283-40043

$23.02

39

RETAINER, DRIVE SHAFT BEARING

24741-06G00

$8.05

40

RETAINER,COUNTER SHAFT BRG

24741-17K00

$19.88

41

RETAINER

24741-20A00

$2.81

42

RETAINER,CL PUSH ROD OIL SEAL

24751-17K00

$12.62

43

SCREW (6X12)

09126-06011

$2.03

44

SCREW (6X12)

09126-06011

$2.03

45

SCREW (6X13)

09139-06153

$2.62

46

SCREW (6X20)

09139-06159

$4.10

47

SPROCKET,ENGINE (NT:17)

27510-17K00

$105.60

48

SPACER,ENGINE SPROCKET

27531-17K00

$25.48

49

CHAIN ASSY,DRIVE (DID525HV3)

27600-17K00-120

$304.02

50

.JOINT SET (DID525HV3)

27620-17K00

$17.35

51

NUT

09159-22008

$30.18

52

SHIM (27X42X1.5)

09181-27016

$5.70

53

O RING (D:2.4,ID:26.2)

09280-26005

$2.30
