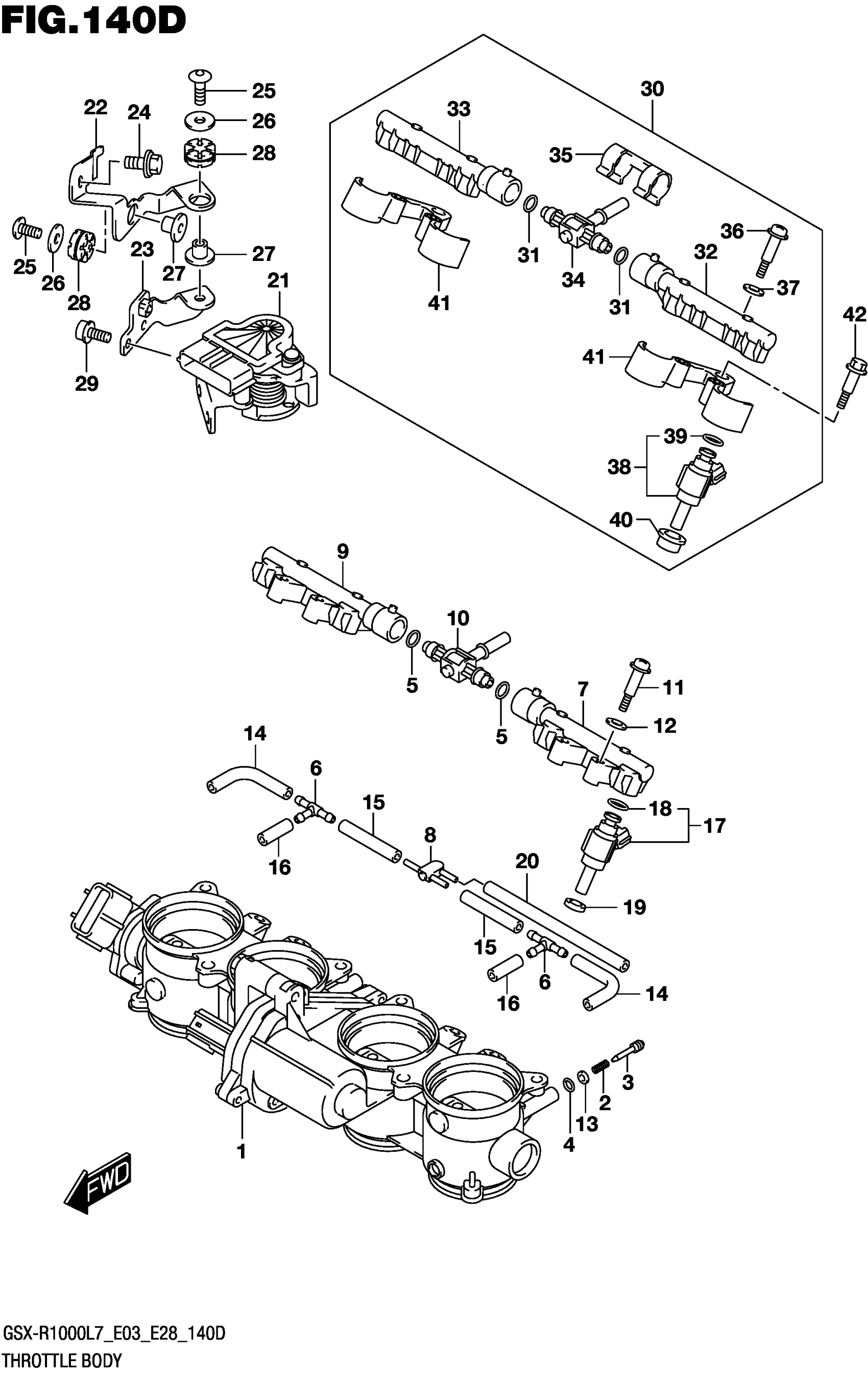

Suzuki GSX-R1000AL (2017) THROTTLE BODY (GSX-R1000AL7 E03) Diagram

#

Description
Price

1

BODY ASSY,THROTTLE This part replaces 13405-17K00.

13405-17K02

$1,555.00

2

SPRING,THROTTLE SCREW

13268-48700

$4.15

3

SCREW

13269-33E00

$14.73

4

O-RING This part replaces 13295-29900.

13295-29901

$4.15

5

O-RING

13374-32G00

$8.15

6

3WAY,VACUUM HOSE

13685-02FA0

$7.95

7

.DELIVERRY PIPE

13471-17K00

$79.90

8

.JOINT

13471-18H00

$11.83

9

DELIVERY PIPE

13472-17K00

$79.90

10

NIPPLE ASSY

13473-17K00

$80.53

11

.SCREW

13601-29G00

$3.37

12

PACKING This part replaces 13602-29G00.

13602-29G01

$2.62

13

WASHER

13606-47A00

$3.70

14

HOSE (3.2X7.4X60) This part replaces 13681-39F00-060.

13681-39F01-060

Unavailable

15

HOSE (L:425) | L:425->50 This part replaces 13683-10F60.

13683-10F61

$19.30

16

HOSE (L:425) | L:425->25 This part replaces 13683-10F60.

13683-10F61

$19.30

17

.INJECTOR ASSY

15710-04K00

$302.17

18

.O-RING

15717-58B00

$9.53

19

SEAL

15722-14J00

$11.17

20

.HOSE (3X7X600) | L:600->135 This part replaces 09355-30705-600.

09355-30001-600

$8.10

21

BODY ASSY,ACCELERATOR

13500-17K00

$372.35

22

BRACKET,ACCEL SENSOR NO.1

13571-17K00

$15.22

23

BRACKET , ACCEL SENSOR NO.2

13572-17K00

$10.57

24

BOLT (6X12)

09116-06197

$2.80

25

BOLT

09139-06208

$3.53

26

.WASHER (6.5X20X1.6)

09160-06088

$1.73

27

SPACER (6.5X10X11.6)

09180-06319

$4.92

28

CUSHION

09320-10055

$5.75

29

BOLT

07120-0612B

$2.88

30

BODY ASSY,2ND INJECTOR

15900-17K00

$682.77

31

O-RING

13374-32G00

$8.15

32

.DELIVERY PIPE

13471-17K00

$79.90

33

DELIVERY PIPE

13472-17K00

$79.90

34

NIPPLE ASSY

13473-17K00

$80.53

35

.CLIP

13474-17K00

$19.30

36

.SCREW

13601-29G00

$3.37

37

PACKING This part replaces 13602-29G00.

13602-29G01

$2.62

38

.INJECTOR ASSY

15710-17K10

$273.72

39

.O-RING

15717-58B00

$9.53

40

.INSULATOR

15722-17K00

$5.75

41

.BRACKET,2ND INJECTOR

15910-17K00

$58.03

42

BOLT

09111-06250

$9.68
