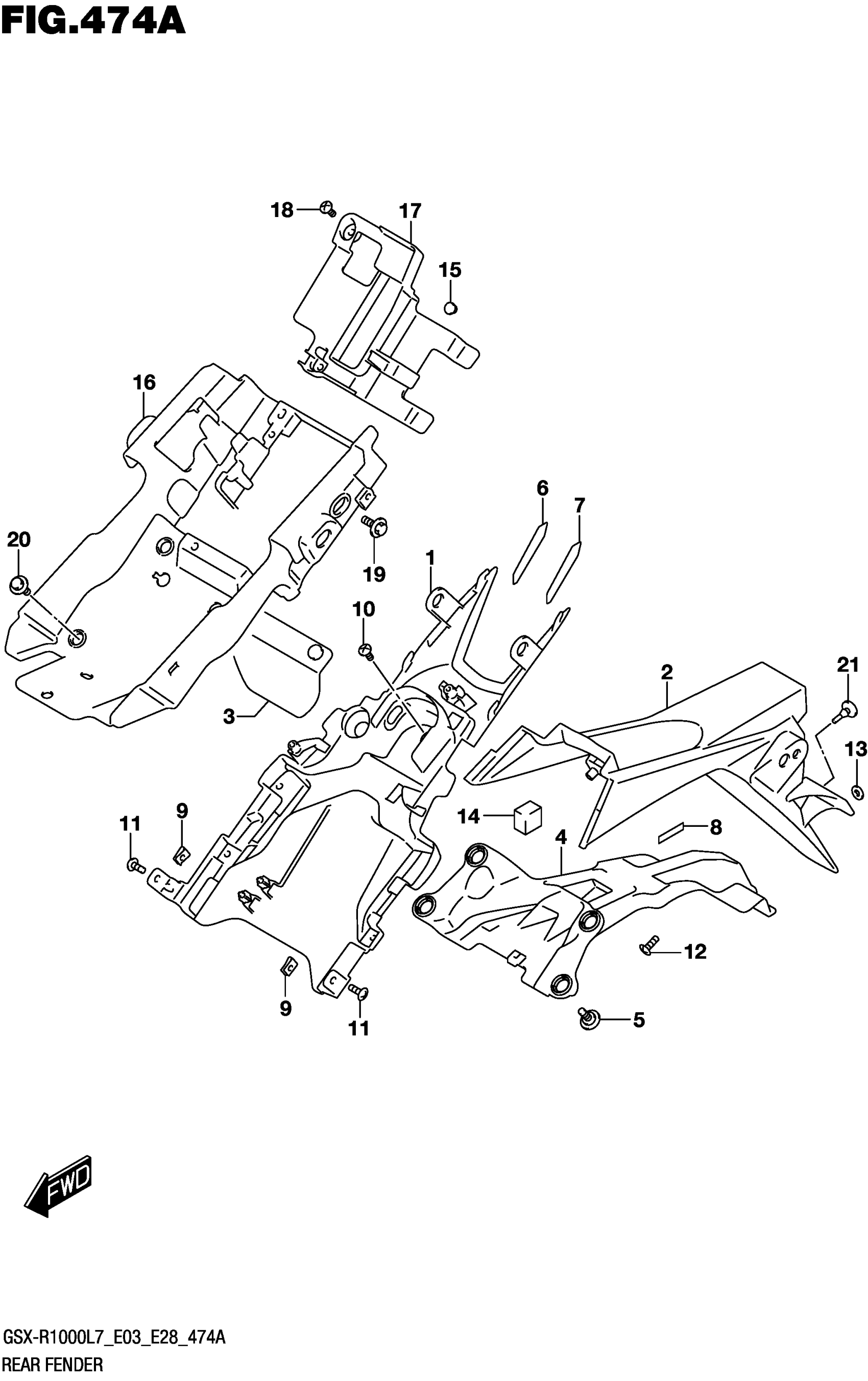

Suzuki GSX-R1000AL (2017) REAR FENDER (GSX-R1000L7 E03) Diagram

#

Description
Price

1

FENDER,REAR FRONT

63111-17K00

$33.17

2

FENDER,REAR REAR

63113-17K00

$40.55

3

MUDGUARD,REAR FENDER

63114-17K00

$10.98

4

FENDER,REAR REAR INNER

63116-17K00

$64.18

5

BOLT,REAR FENDER REAR

63117-17K00

$2.07

6

TAPE,REAR COMB,R

63121-17K00

$3.58

7

TAPE,REAR COMB,L

63122-17K00

$3.58

8

TAPE (6X25X0.13)

94443-06G00

$2.97

9

NUT

09148-05038

$1.97

10

SCREW

03541-0512A

$1.37

11

SCREW

03541-0516A

$1.37

12

SCREW

03541-0516B

$1.77

13

WASHER

08322-0106A

$1.83

14

CUSHION

33652-05G20

$2.87

15

PLUG, ELECTRIC PARTS HOLDER

45148-27J00

$19.43

16

HOLDER,BATTERY

47431-17K00

$31.92

17

HOLDER, ELECTRIC PARTS

47441-17K00

$26.55

18

BOLT (6X18)

09111-06081

$3.85

19

SCREW

03541-0516A

$1.37

20

BOLT (6X14.3)

09111-06041

$2.63

21

CUSHION

09321-06026

$2.15
