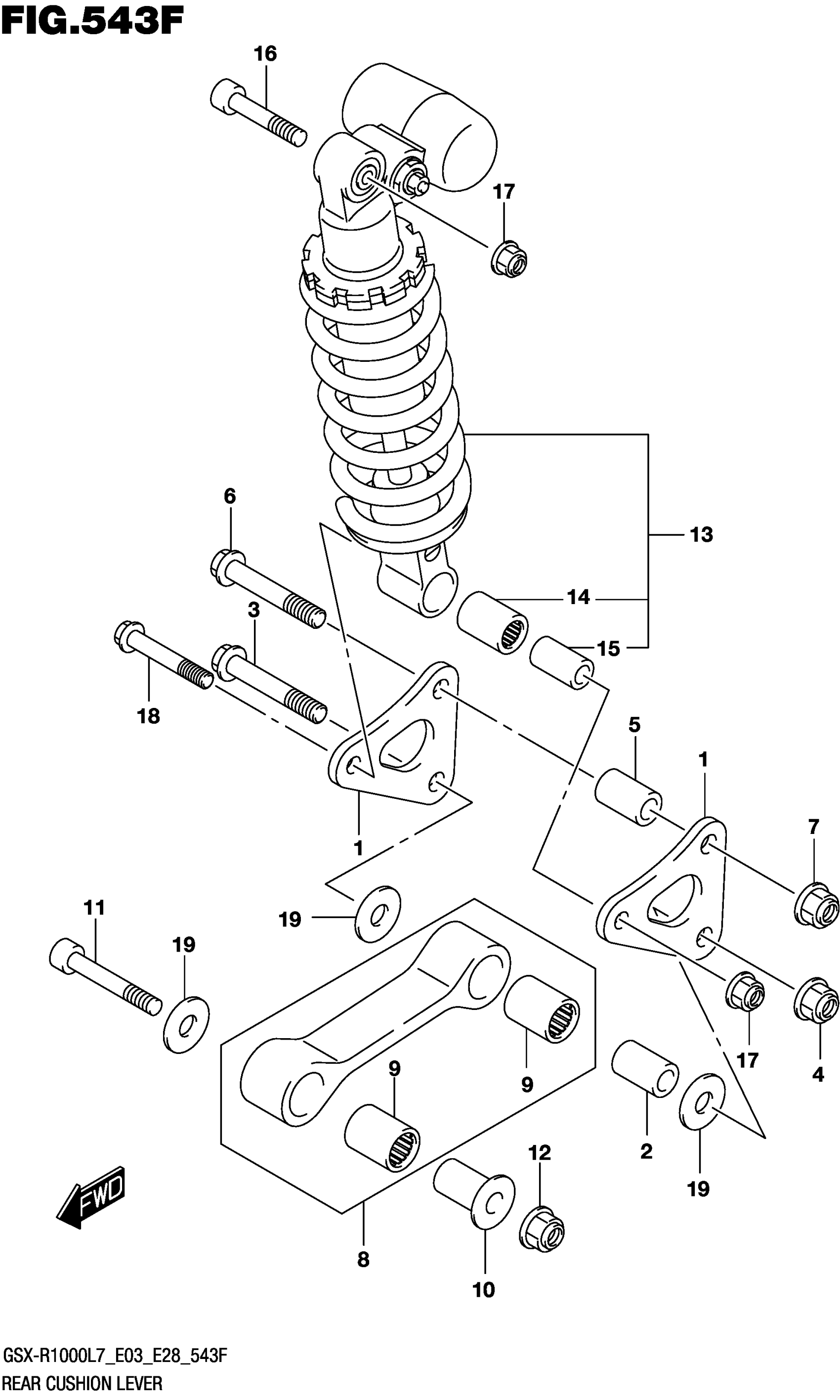

Suzuki GSX-R1000AL (2017) REAR CUSHION LEVER (GSX-R1000AL7 E33) Diagram

Description

Price

LEVER,REAR CUSHION

62611-17K00

$24.52

SPACER, REAR

62317-27C10

$16.76

BOLT, LOWER

62658-47H00

$10.75

NUT

09159-12056

$7.37

SPACER, UPPER

62317-44B00

$21.03

BOLT, UPPER

62658-47H00

$10.75

NUT

09159-12056

$7.37

ROD SET,RR CUSH This part replaces 62600-47810.

62600-47811

$157.23

.BEARING This part replaces 09263-20074.

09263-20116

$31.15

SPACER, FRONT

62647-47H00

$35.28

BOLT,RR CUSHION ROD

62658-04K00

$14.37

NUT

09159-12056

$7.37

ABSORBER ASSY, REAR SHOCK

62100-17820-019

$1,058.25

(BLACK)

62100-17820-019

$1,058.25

.BEARING (17X24X32)

09263-17046

$41.45

.SPACER, SHOCK ABS LOWER

62317-47H00

$20.45

BOLT, RR SHOCK ABSORBER UPR | UPPER

62658-04K10

$14.37

NUT

09159-10115

$3.55

BOLT | LOWER

62313-47H00

$11.95

WASHER (12X34X1)

09160-12037

$3.83
