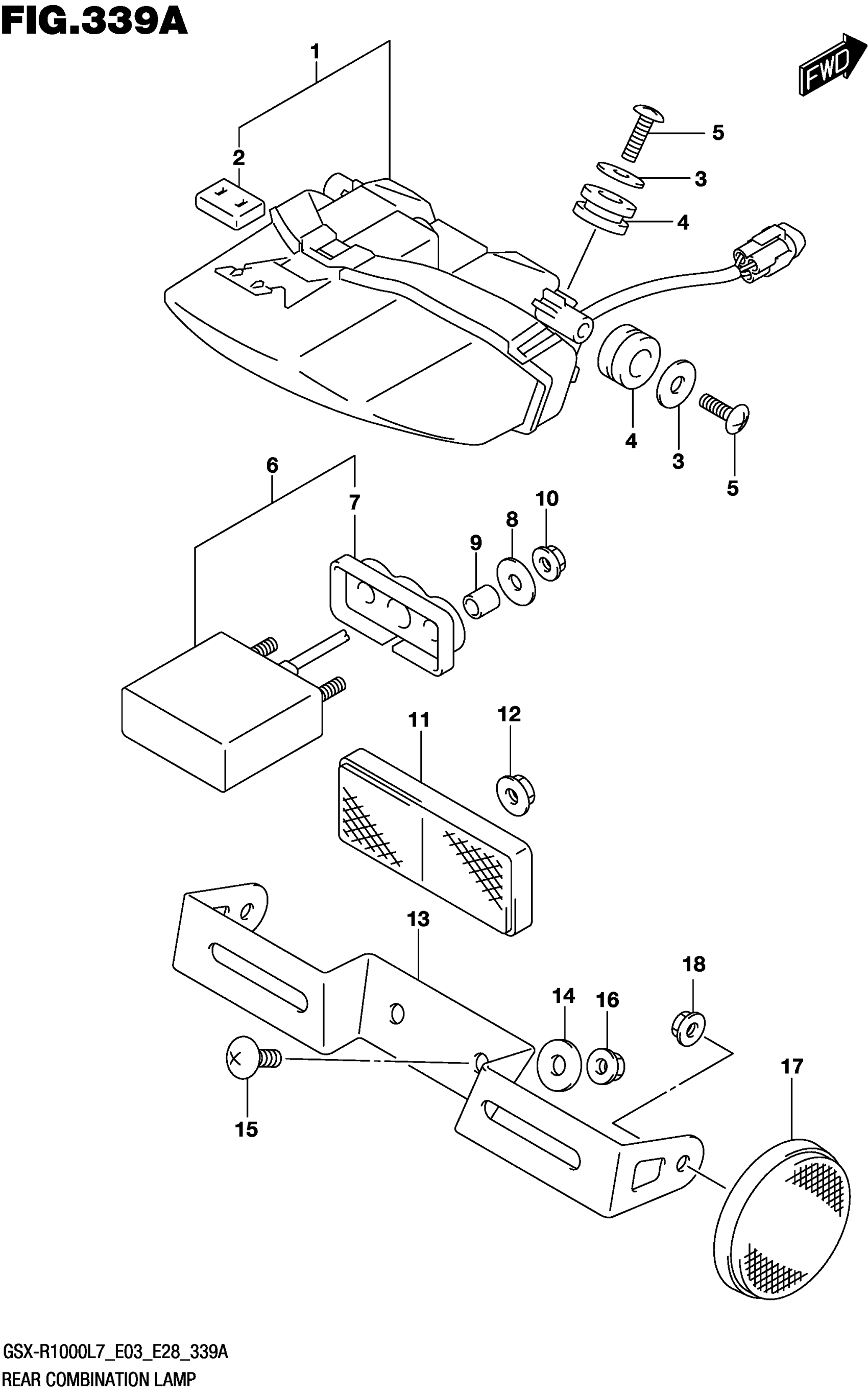

Suzuki GSX-R1000AL (2017) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REARCOMBINATION

35710-17KA0

$419.90

2

CUSHION

35781-17K00

$11.40

3

WASHER (5.5X18X1)

09160-05045

$2.01

4

CUSHION This part replaces 09320-10054.

09320-10073

$2.12

5

SCREW

03541-0516A

$1.41

6

LAMP ASSY,LICENSE

35910-17K00

$181.80

7

.RUBBER

35913-17K00

$19.03

8

WASHER (5.5X18X1)

09160-05045

$2.01

9

SPACER (6.5X9X9)

09180-06263

$1.68

10

NUT

08316-1005A

$2.25

11

REFLECTOR ASSY, RR

35970-07F01

$19.97

12

NUT

08316-1005A

$2.25

13

BRACKET,LICENSE PLATE

35927-17K00

$15.68

14

WASHER (6.5X18X1)

09160-06151

$2.08

15

SCREW

02142-0616A

$1.41

16

NUT

08316-1006A

$2.25

17

REFLECTOR ASSY, RR SIDE

35970-14A20

$14.87

18

NUT

08316-1005A

$2.25
