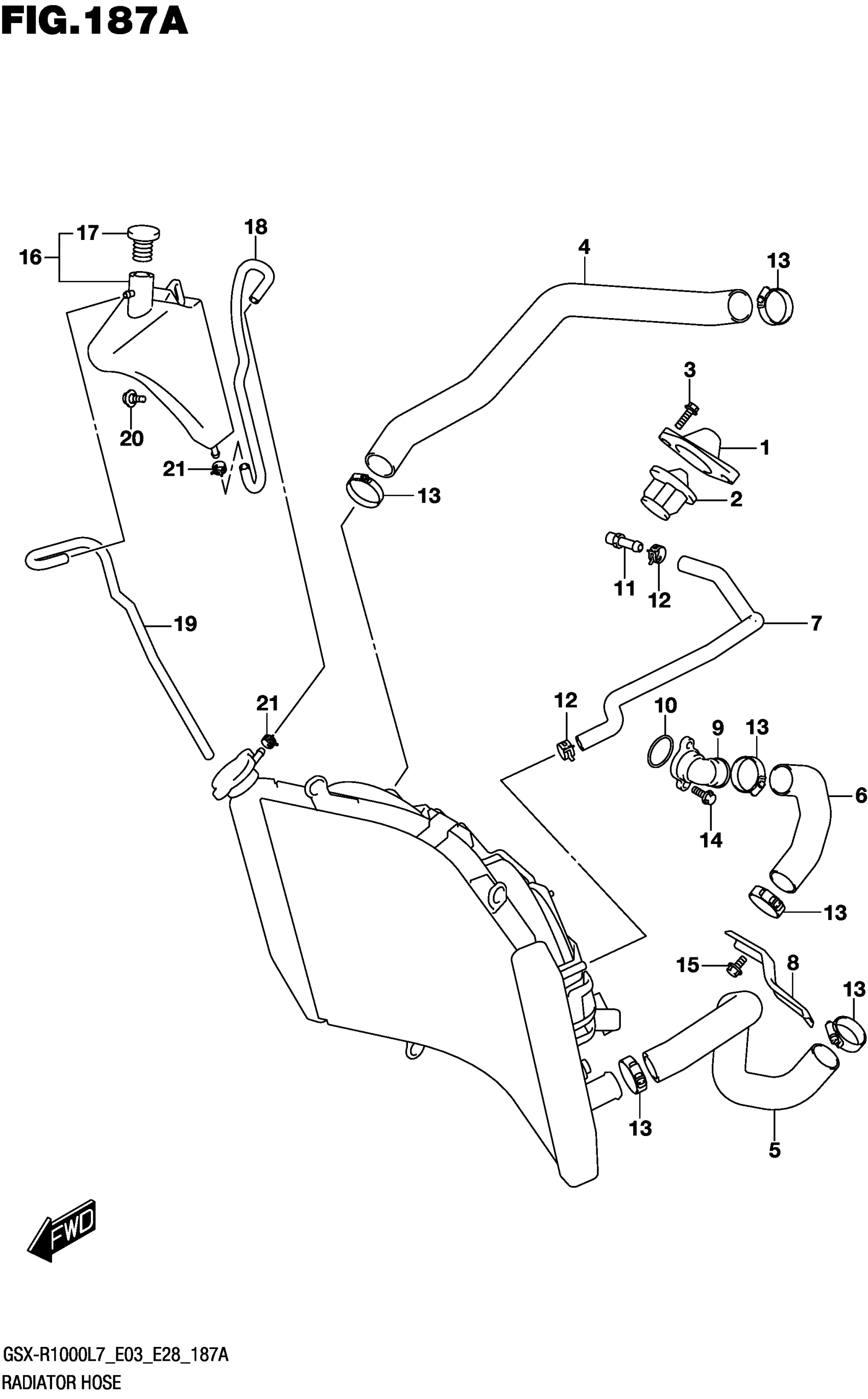

Suzuki GSX-R1000AL (2017) RADIATOR HOSE Diagram

#

Description
Price

1

COVER,THERMOSTAT

17661-37H00

$36.33

2

THERMOSTAT,WATER This part replaces 17670-06G60.

17670-06G61

$25.77

3

BOLT

01547-0620A

$2.03

4

HOSE,RDTR INLET

17851-17K00

$34.15

5

HOSE,RDTR OUTLET

17852-17K00

$31.02

6

HOSE,CYLINDER INLET

17853-17K00

$15.53

7

HOSE,WATER BYPASS

17854-17K00

$27.58

8

BRACKET,HOSE GUIDE

17859-17K00

$27.07

9

CONNECTOR,CYL WATER INLET

17861-17K00

$44.08

10

O RING (D:2.4,ID:27.7)

09280-28005

$2.43

11

UNION

09362-09011

$8.28

12

CLIP

09401-12414

$3.26

13

CLAMP

09402-35501

$7.29

14

BOLT

01547-0616A

$2.03

15

BOLT

01550-0612A

$1.97

16

TANK ASSY,RESERVOIR

17910-17K00

$77.37

17

.CAP

17931-31J00

$7.20

18

HOSE,RESERVOIR TANK INLET

17981-17K00

$14.85

19

HOSE,RSVR TANK OVFL

17982-47H10

$13.23

20

BOLT (6X12)

09111-06085

$4.54

21

CLIP

09401-08411

$1.78
