2017 Suzuki GSX-R1000AL Headlamp Diagram

← All diagrams

Find the part on the Headlamp diagram for your 2017 Suzuki GSX-R1000AL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

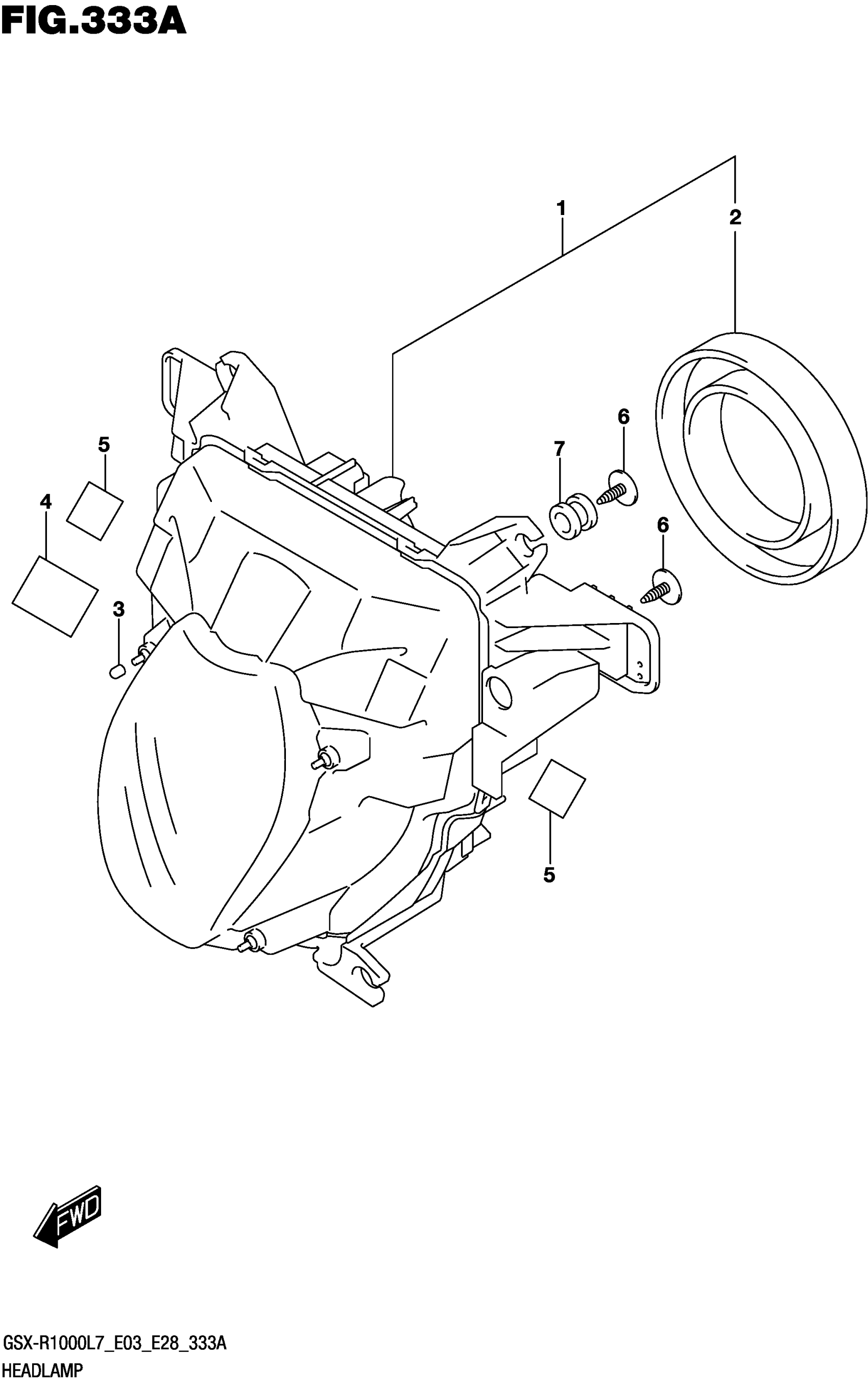

2017 Suzuki GSX-R1000AL Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY This part replaces 35100-17K00.

35100-17K01

1
Out of stock

2

.SOCKET COVER

35125-17K00

2
Out of stock

3

CUSHION,FUEL TANK COVER This part replaces 44294-43H00.

44294-43H11

4
Out of stock

4

FASTENER

44572-02F01

1
Out of stock

5

FASTENER

44572-37H00

2
Out of stock

6

SCREW (5X15)

09136-05062

6
Out of stock

7

.CUSHION (9X18X14) This part replaces 09320-09039.

09320-09059

4
Out of stock
