Description

Price

1

BRACKET,FUEL TANK FRONT

44521-17K00

$86.32

2

SCREW (5X16.4)

09139-05078

$3.49

3

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

4

NUT

09148-05052

$3.37

5

COVER COMP,FUEL This part replaces 44290-17KA0-YSF.

44290-17KA1-YSF

$252.68

6

.TAPE SET, FUEL TANK COVER

68120-17K00-BDH

$38.82

7

EMBLEM "S"

68111-47HA0

$40.44

8

SCREW (6X40)

09139-06210

$4.82

9

WASHER This part replaces 09160-06012.

09160-06054

$1.62

10

CUSHION (10X22X13)

09320-10050

$3.35

11

SPACER

44512-17K00

$5.98

12

PROTECTOR, FUEL TANK COVER | CUT AS REQUIRED

33652-20C00

$2.99

13

CUSHION,FUEL TANK COVER (L:38

44277-17K00

$4.37

14

SCREW (6X10)

09139-06181

$3.83

15

NUT

44523-47H00

$10.02

16

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

17

FASTENER, COVER FRONT

44572-44G00

$10.18

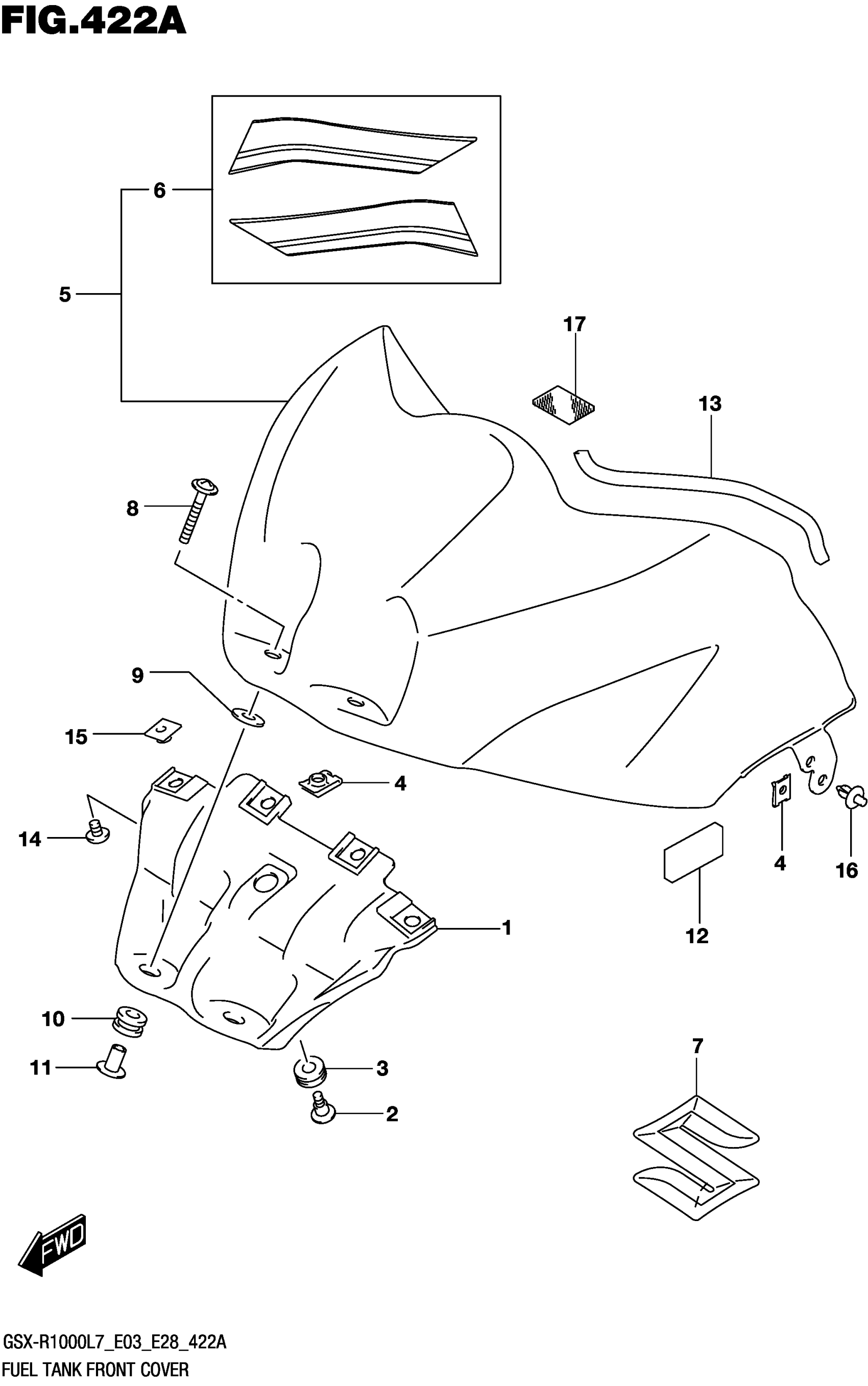

Suzuki GSX-R1000AL (2017) FUEL TANK FRONT COVER (YSF) Diagram
