2017 Suzuki GSX-R1000AL Fuel Pump Diagram

← All diagrams

Find the part on the Fuel Pump diagram for your 2017 Suzuki GSX-R1000AL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

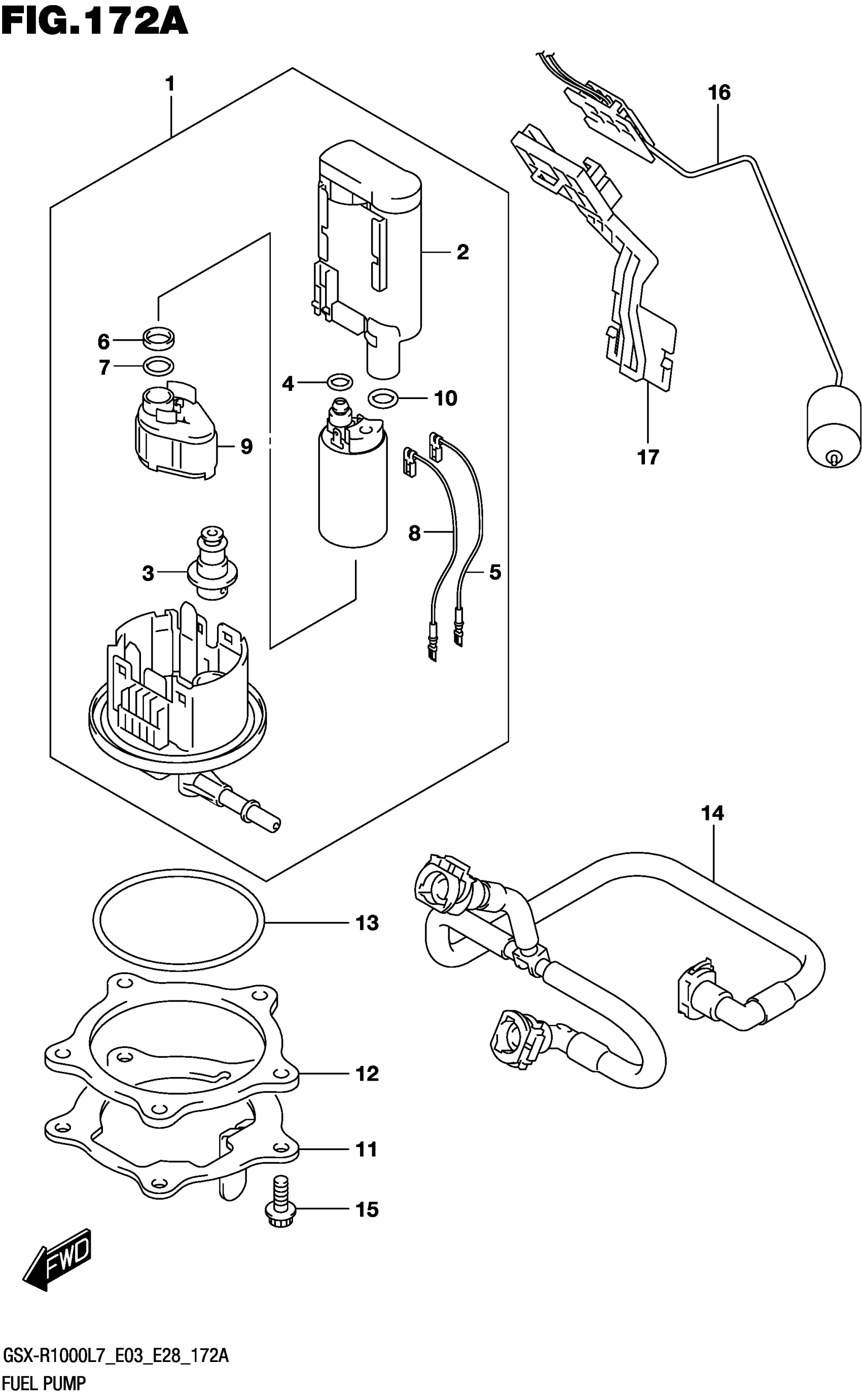

2017 Suzuki GSX-R1000AL Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY,FUEL

15100-17K50

1
Out of stock

2

.FILTER

15310-17K00

1
Out of stock

3

.REGULATOR

15610-17K50

1
Out of stock

4

.O RING

15113-05H00

1
Out of stock

5

.WIRE, EARTH | BLACK

15114-17K00

1
Out of stock

6

.COLLAR

15116-17K00

1
Out of stock

7

.O-RING

15113-17K00

1
Out of stock

8

.WIRE,LEAD | BLUE

15115-17K00

1
Out of stock

9

.STRAINER

15420-17K00

1
Out of stock

10

.O RING

15113-35F00

1
Out of stock

11

PLATE,FUEL PUMP OUTER

15120-17K00

1
Out of stock

12

PLATE,FUEL PUMP INNER

15122-17K00

1
Out of stock

13

O-RING,FUEL PUMP This part replaces 15201-17K01.

15201-07L00

1
Out of stock

14

HOSE,FUEL

15810-17K00

1
Out of stock

15

BOLT

07120-0616A

5
Out of stock

16

GAUGE ASSY,FUEL LEVEL SENDER

34810-17K10

1
Out of stock

17

ATTACHMENT,FUEL LEVEL GAUGE

34815-17K10

1
Out of stock
