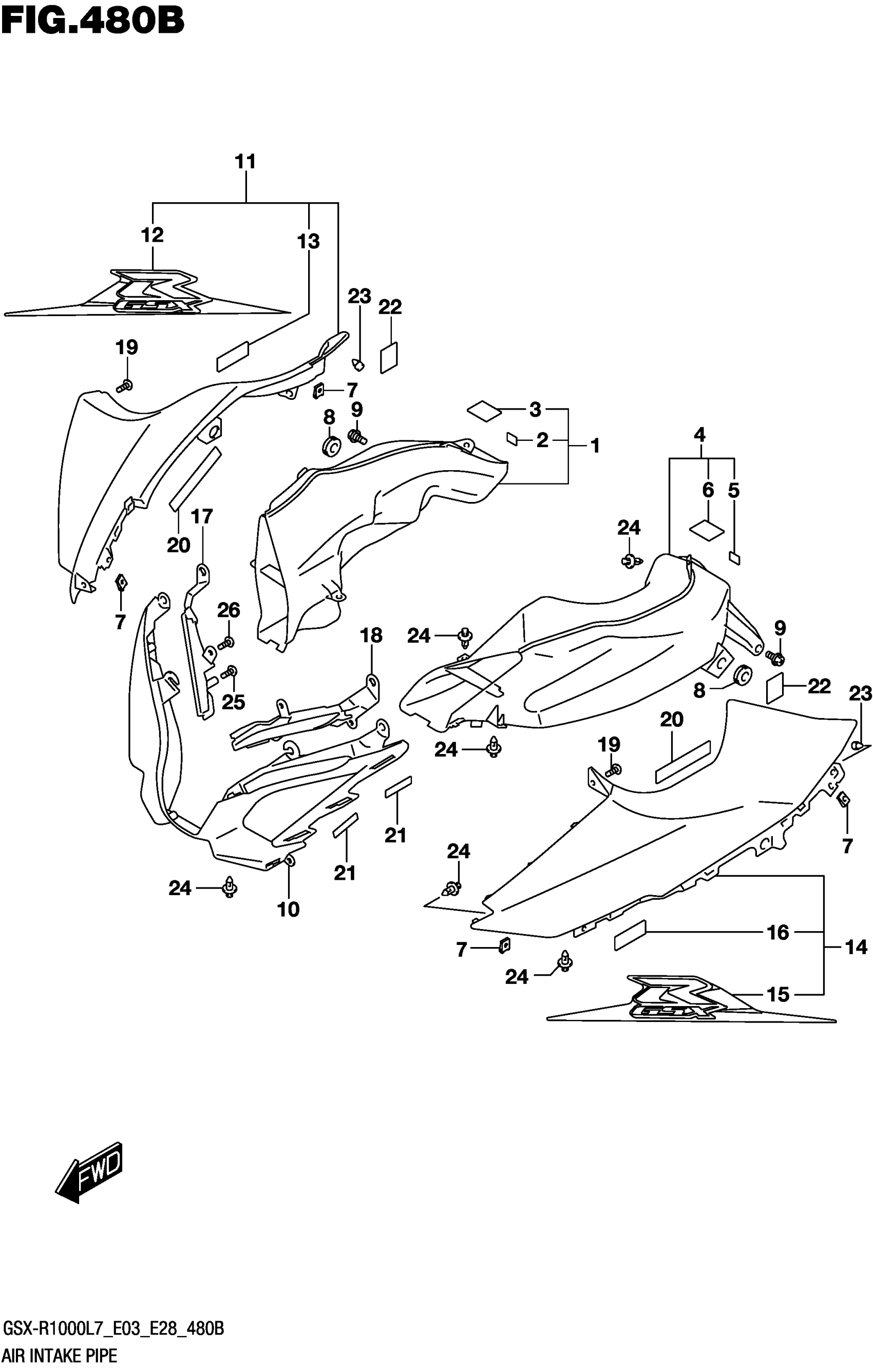

Suzuki GSX-R1000AL (2017) AIR INTAKE PIPE (YKV,YVZ) Diagram

#

Description
Price

1

PIPE,AIR INTAKE,R

94420-17K00

$57.70

2

CUSHION (10X10X1)

63115-37H00

$3.42

3

.CUSHION, INATAKE PIPE

36930-60A10

$2.80

4

PIPE,AIR INTAKE,L

94430-17K00

$81.37

5

CUSHION (10X10X1)

63115-37H00

$3.42

6

.CUSHION, INATAKE PIPE

36930-60A10

$2.80

7

NUT

09148-05052

$3.04

8

CUSHION

09320-08028

$2.80

9

BOLT (6X12)

09111-06106

$2.28

10

COVER, INTAKE (BLACK)

94671-17K00-YKV

$97.23

11-1

COVER, INTAKE RH (BLACK) | FOR YKV

94670-17K00-YKV

$150.72

11-2

COVER, INTAKE RH (RED) | FOR YVZ

94670-17K00-YVZ

$201.80

12-1

.TAPE, INTAKE COVER RH | FOR YKV

68275-17K00-BDK

$48.50

12-2

.TAPE, INTAKE COVER RH | FOR YVZ

68275-17K00-BDQ

$48.50

13

PAD (8X20X2)

73415-70A00

$1.50

14-1

COVER, INTAKE LH (BLACK) | FOR YKV

94680-17K00-YKV

$211.53

14-2

COVER, INTAKE LH (RED) | FOR YVZ

94680-17K00-YVZ

$201.80

15-1

.TAPE, INTAKE COVER LH | FOR YKV

68276-17K00-BDK

$48.50

15-2

.TAPE, INTAKE COVER LH | FOR YVZ

68276-17K00-BDQ

$48.50

16

PAD (8X20X2)

73415-70A00

$1.50

17

COVER,INTAKE UPPER,R

94414-17K00

$10.57

18

COVER,INTAKE UPPER,L

94415-17K00

$10.57

19

SCREW (5X12)

09132-05050

$1.89

20

CUSHION, COVER INTAKE NO.1

36930-82010

$4.05

21

CUSHION, COVER INTAKE CTR | CUT AS REQUIRED

94476-38C00

Unavailable

22

CUSHION, COVER SIDE

94633-31J00

$2.43

23

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

24

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

25

SCREW

03541-0412B

$1.55

26

SCREW

03541-0512B

$1.77
