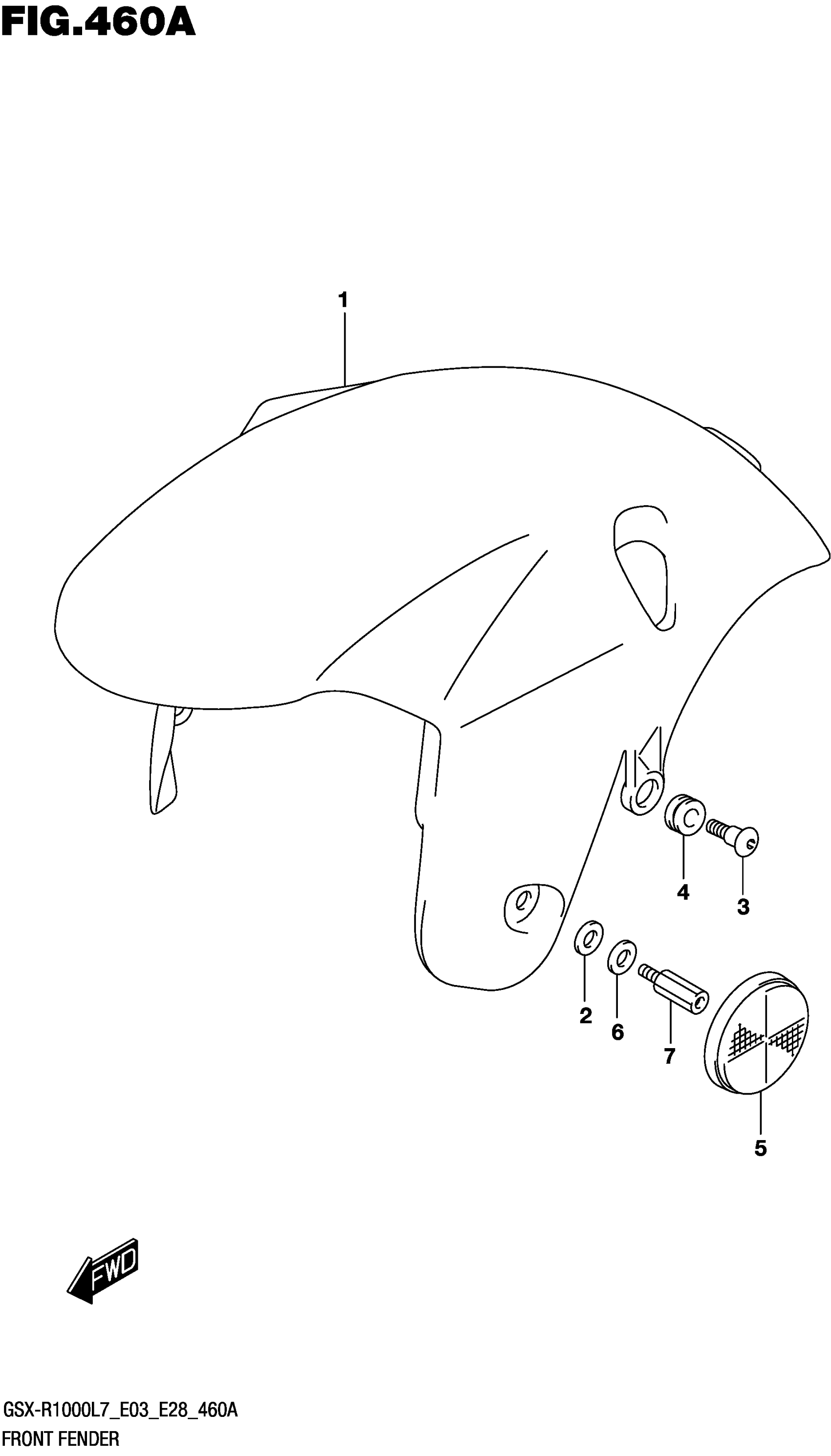

Suzuki GSX-R1000AL (2017) FRONT FENDER (GSX-R1000L7 E03) Diagram

FENDER, FRONT (BLACK) | FOR YKV

53111-17K00-YKV

$211.28

FENDER, FRONT (BLUE) | FOR YSF

53111-17K00-YSF

Unavailable

FENDER, FRONT (RED) | FOR YVZ

53111-17K00-YVZ

$211.28

WASHER

53121-33E00

$3.43

SCREW (6X20)

09139-06206

$3.32

CUSHION

09320-09016

$1.97

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$15.23

WASHER (8.5X18X1)

09160-08043

$1.83

BOLT This part replaces 35952-17K00.

35952-17K01

$11.56
