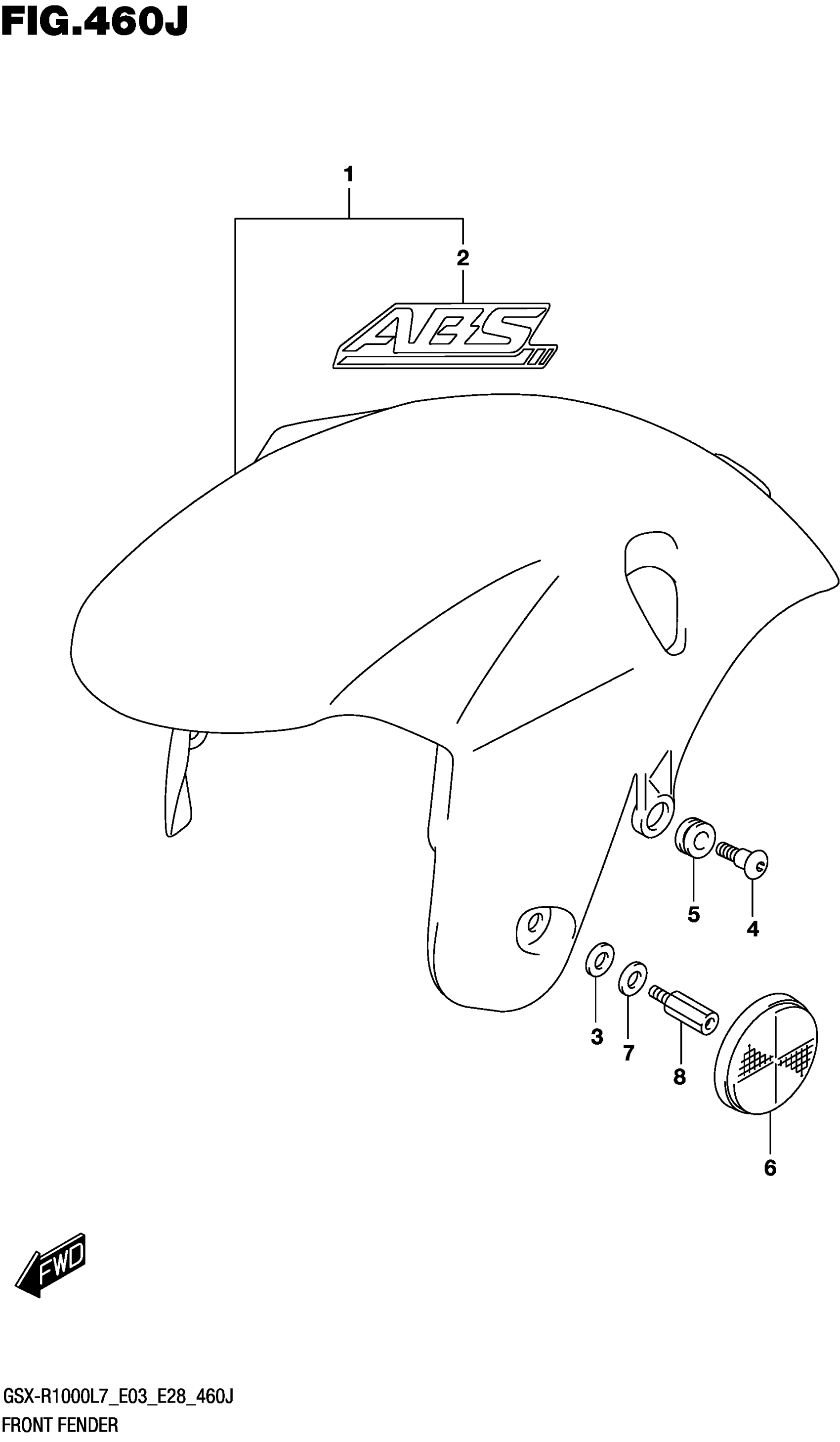

Suzuki GSX-R1000AL (2017) FRONT FENDER (GSX-R1000AL7 E33) (YKV) Diagram

#

Description

Price

1

FENDER,FRONT (BLACK) This part replaces 53110-17K20-YKV.

53110-17K21-YKV

$271.87

2

.EMBLEM,ABS (GRAY,BLACK) This part replaces 68151-44G10-GWM.

68151-44G11-GWM

$12.32

3

WASHER

53121-33E00

$3.43

4

SCREW (6X20)

09139-06206

$3.32

5

CUSHION

09320-09016

$1.97

6

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$15.23

7

WASHER (8.5X18X1)

09160-08043

$1.83

8

BOLT This part replaces 35952-17K00.

35952-17K01

$11.56
