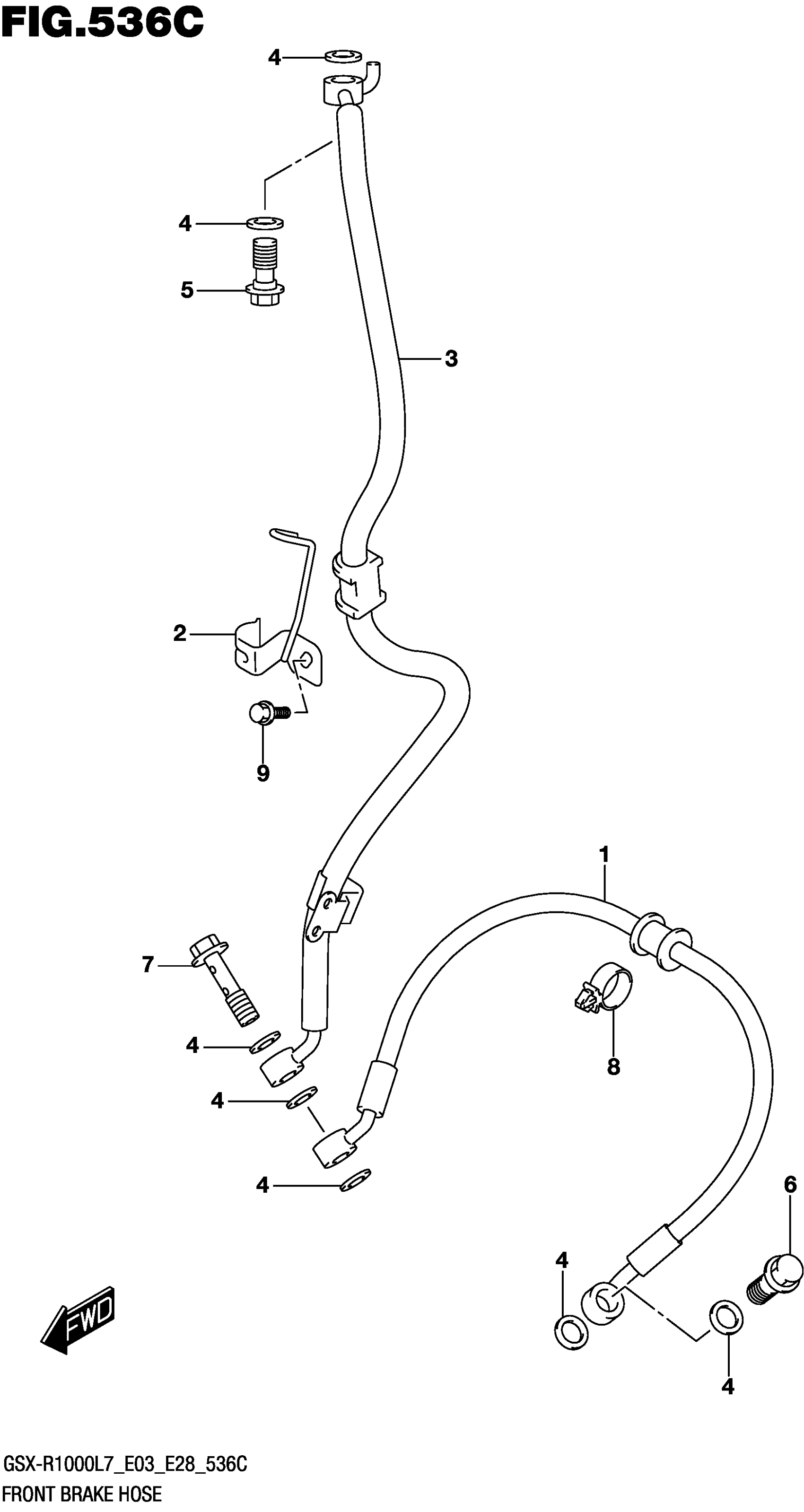

Suzuki GSX-R1000AL (2017) FRONT BRAKE HOSE (GSX-R1000L7 E33) Diagram

#

Description
Price

1

HOSE, FRONT CALIPER

59240-17K00

$86.32

2

CLAMP,FR BK HOSE NO.1

59260-47H00

$27.13

3

HOSE, FRONT BRAKE NO.1

59480-17K00

$121.12

4

WASHER (10X15X1.5)

09161-10009

$1.84

5

UNION

09360-10062

$6.43

6

UNION | LH

09360-10062

$6.43

7

UNION | RH

09360-10064

$6.43

8

CLAMP

09403-16412

$3.37

9

BOLT

01547-0612A

$2.03
