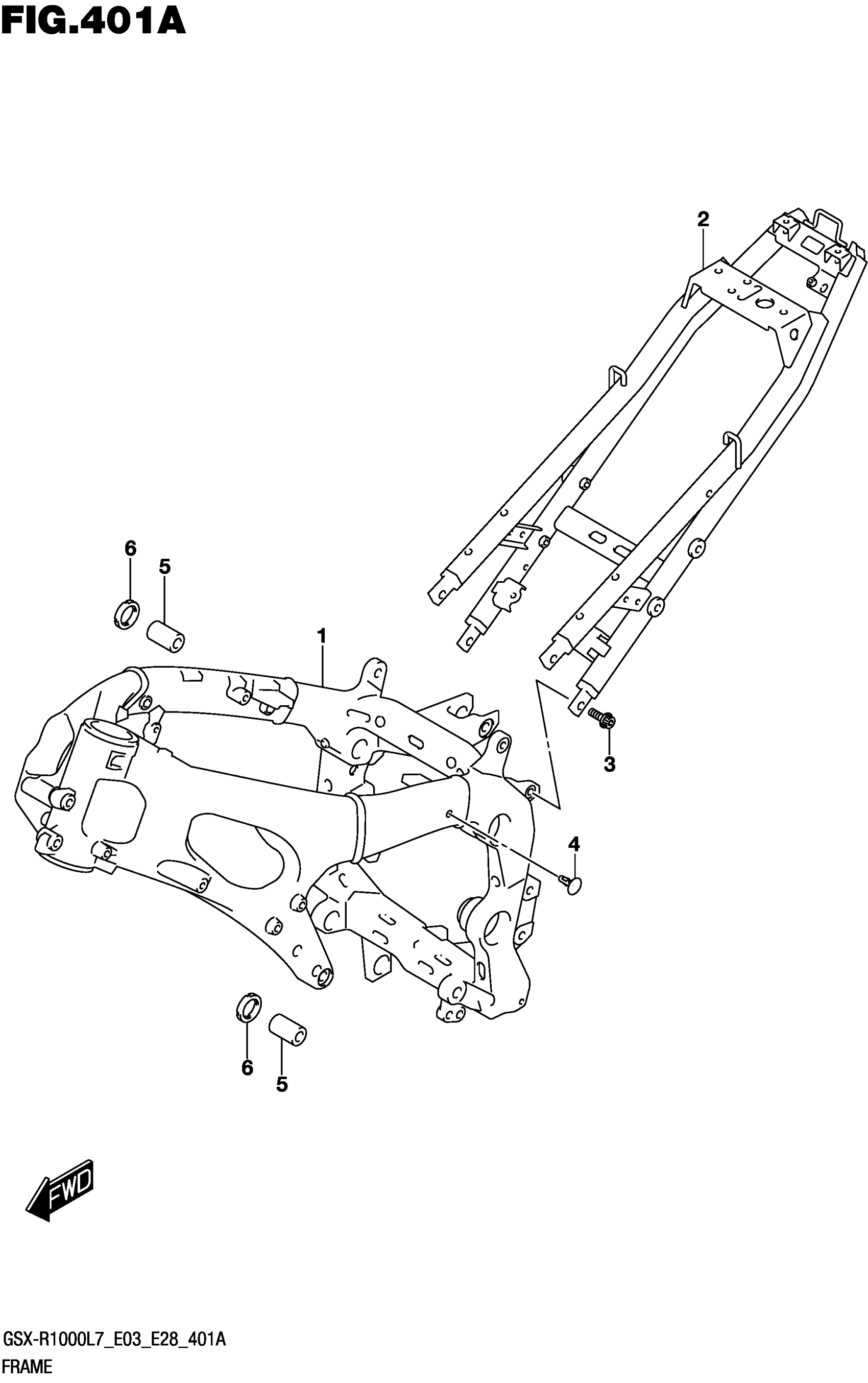

Suzuki GSX-R1000AL (2017) FRAME Diagram

#

Description

Price

1

FRAME This part replaces 41100-17K00.

41100-17K10

$4,304.82

2

RAIL,SEAT This part replaces 41200-17K00.

41200-17K10

$1,010.12

3

BOLT,SEAT RAIL

41233-18G20

$8.65

4

CLIP (BLACK)

09409-05308-5PK

$1.83

5

BOLT, ADJUST

41921-47H00

$52.60

6

NUT,CRANK CASE ADJUST BOLT

41922-47H00

$37.42
