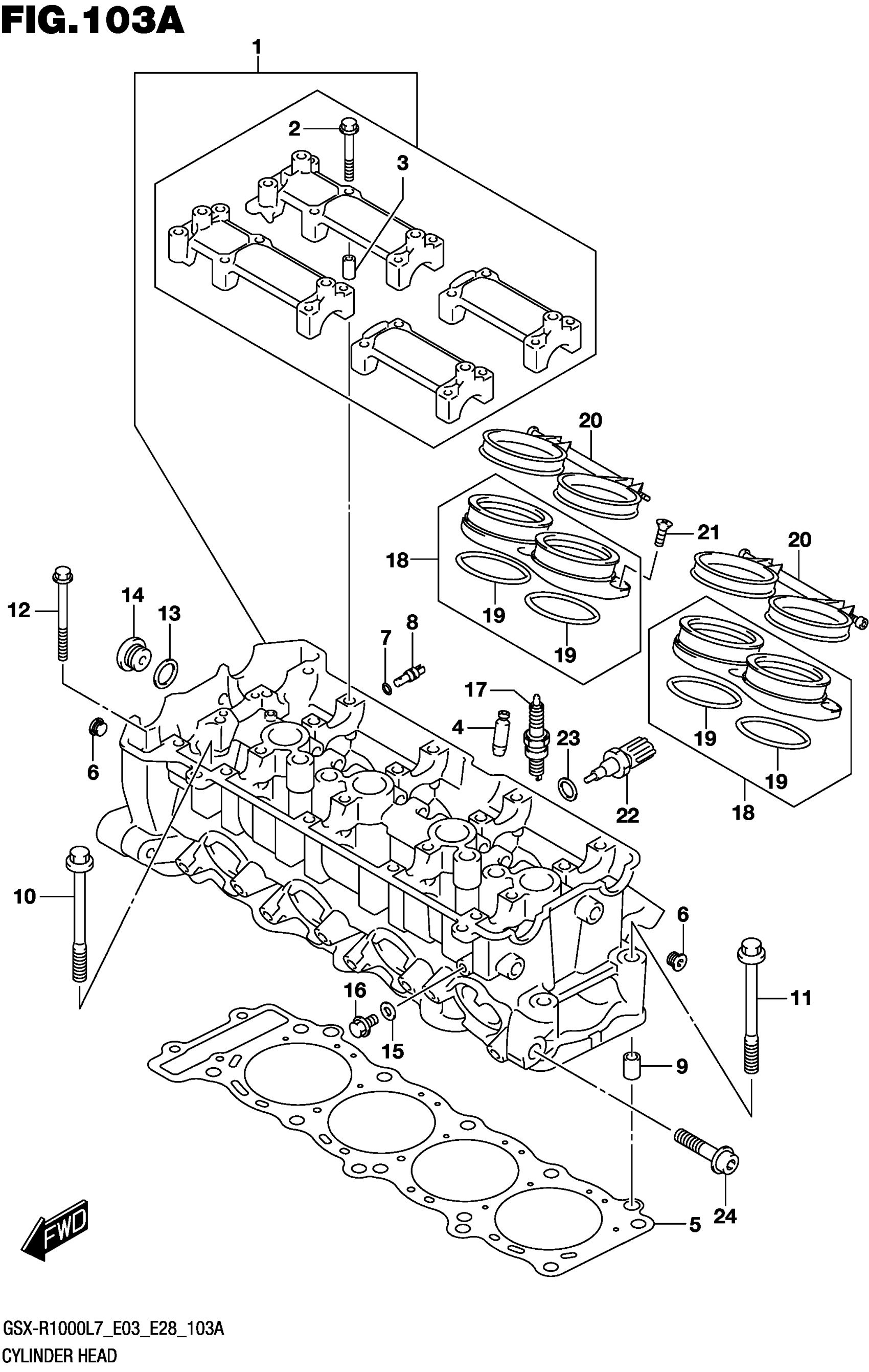

Suzuki GSX-R1000AL (2017) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY,CYLINDER

11100-17K00

$1,712.62

2

.BOLT (6X40)

09103-06266

$2.12

3

.PIN (6.2X8X16)

09206-08007

$2.60

4

GUIDE, VALVE (OS 0.3) | OPT

11115-29G70

$32.87

5

GASKET, CYLINDER HEAD

11141-17K00

$66.66

6

PLUG (10X5)

09248-10006

$4.68

7

O RING (D:1.2,ID:4)

09280-04004

$1.91

8

JET (8)

09493-80005

$16.25

9

PIN

04211-11169

$1.78

10

BOLT, CYLINDER HEAD (L95)

11117-29G00

$8.93

11

BOLT,CYLINDER HEAD (10X95)

11117-29G20

$8.00

12

BOLT

01547-0665A

$2.32

13

GASKET (16X22X0.8)

09168-16009

$2.50

14

PLUG (16X8)

09248-16012

$4.64

15

GASKET (5.8X13X1.2)

09168-06023

$2.35

16

BOLT

01550-0612A

$1.97

17-1

SPARK PLUG (CR9EIA-9) | NGK

09482-00558

$12.14

17-2

SPARK PLUG (IU27D) | DENSO

09482-00557

$16.60

17-3

SPARK PLUG (CR8EIA-9) | OPT

09482-00556

$10.85

17-3

PLUG,SPARK (CR8EIA-9) | NGK

09482-00556

$10.85

17-4

SPARK PLUG (CR10EIA-9) | OPT

09482-00560

$10.85

17-4

PLUG,SPARK (CR10EIA-9) | NGK

09482-00560

$10.85

17-5

SPARK PLUG (IU24D) | OPT

09482-00555

$17.96

17-5

PLUG,SPARK (IU24D) | DENSO

09482-00555

$17.96

17-6

SPARK PLUG (IU31D) | OPT

09482-00559

$20.10

17-6

PLUG,SPARK (IU31D) | DENSO

09482-00559

$20.10

18

PIPE ASSY,INTAKE

13101-17K00

$63.30

19

.O RING (D:2.4,ID:44.7)

09280-45004

$3.68

20

CLAMP,INTAKE PIPE

13170-17K00

$21.43

21

SCREW

02122-0616A

$1.49

22

SENSOR, WATER TEMPERATURE

13650-49X00

$90.19

23

GASKET (12X17X1)

09168-12017

$1.95

24

BOLT (10X45)

09106-10069

$4.24
