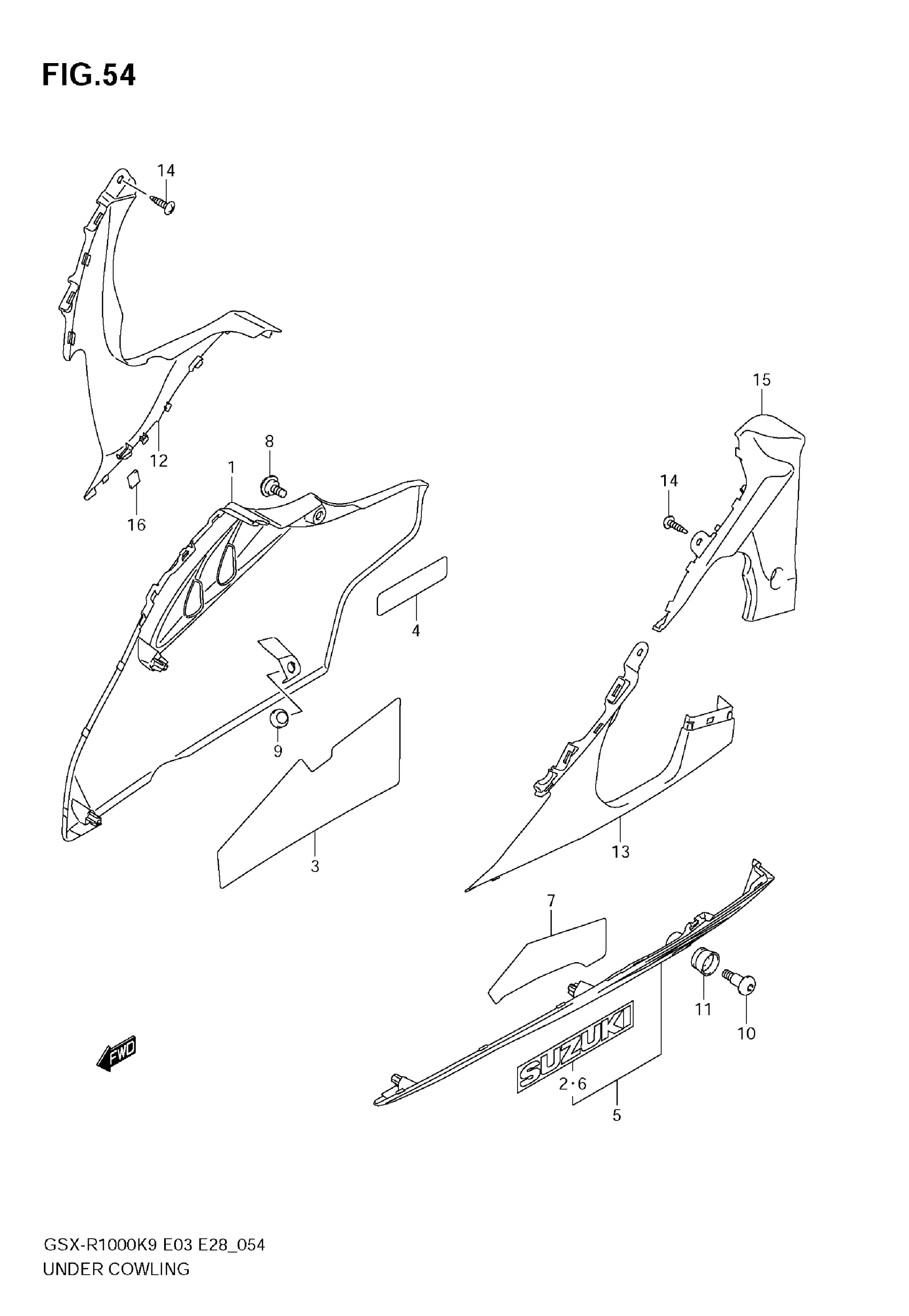

Suzuki GSX-R1000 (2009) UNDER COWLING Diagram

#

Description
Price

1

COWL, UNDER RH (BLACK) | FOR CRU,FGF,GRD

94470-47H00-YKV

Unavailable

1

COWL, UNDER RH (WHITE) | FOR GLR; Includes Item(s) 2 - 2

94470-47H00-YBD

$332.42

2

EMBLEM (GRAY) | FOR YKV

68181-33C20-YU8

$31.45

2

EMBLEM (BLACK) | FOR YBD

68181-33C20-019

$26.75

3

SHIELD, HEAT FRONT RH

94476-47H00

$13.18

4

SHIELD, HEAT REAR RH

44194-31G00

$14.27

5

COWL, UNDER LH (BLACK) | FOR CRU,FGF,GRD

94480-47H00-YKV

Unavailable

5

COWL, UNDER LH (WHITE) | FOR GLR; Includes Item(s) 6 - 6

94480-47H00-YBD

$332.42

6

EMBLEM (GRAY) | FOR YKV

68191-47H00-YU8

Unavailable

6

EMBLEM (BLACK) | FOR YBD

68191-47H00-019

$35.93

7

SHIELD, HEAT LH

94486-47H00

$22.97

8

SCREW, RH

09139-05064

$2.57

9

CUSHION

09321-10018

$5.45

10

SCREW, LH

09139-06126

$4.04

11

CUSHION

94479-15H00

$4.48

12

COWL, SIDE LOWER RH

94474-47H00

$47.92

13

COWL, SIDE LOWER LH

94484-47H00

$47.03

14

SCREW

03541-0516A

$1.49

15

COVER, SIDE COWL LH

94482-47H00

$46.60

16

CUSHION (10X10X1)

63115-37H00

$3.64
