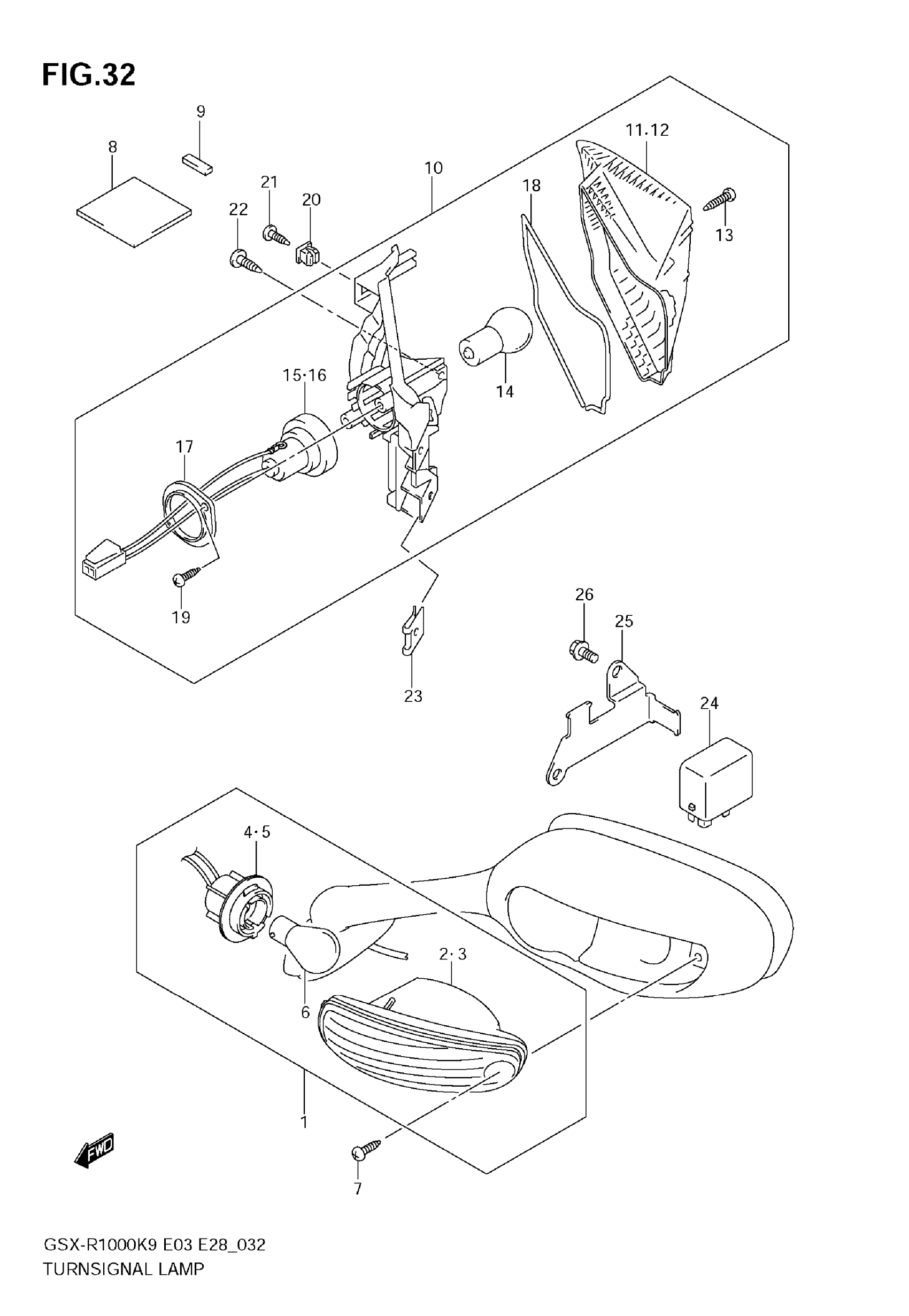

Suzuki GSX-R1000 (2009) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY,FR TURN SIGNAL,R

35601-41G00

$51.81

1

LAMP ASSY,FR TURN SIGNAL,L | Includes Item(s) 2 - 6

35602-41G00

$51.81

2

.LAMP UNIT,R

35610-41G00

$50.15

3

.LAMP UNIT,L

35630-41G00

$34.90

4

.SOCKET,R

35618-10G50

$34.12

5

.SOCKET,L

35638-10G50

$32.85

6

BULB (12V21W)

09471-12186

$16.18

7

SCREW, FR TURNSIGNAL (4X20)

09132-04032

$1.98

8

PROTECTOR (50X50X5) This part replaces 33652-21G10.

33652-20C00

$2.80

9

TAPE,FR TURNSIGNAL (5X20X0.4) | 5X20X0.4

94443-21H00

$4.47

10

LAMP ASSY,RR TURNSIGNAL,R

35603-47H00

$121.77

10

LAMP ASSY,RR TURNSIGNAL,L | Includes Item(s) 11 - 19

35604-47H00

$86.35

11

.LENS,R

35652-47H00

$34.03

12

.LENS,L

35672-47H00

$34.03

13

SCREW

03211-0416A

$1.43

14

BULB (12V21W)

09471-12186

$16.18

15

.SOCKET & CORD,R

35658-41G00

$36.30

16

.SOCKET & CORD,L

35678-41G00

$36.30

17

PLATE

35716-07A30

$11.18

18

GASKET

35653-47H00

$12.20

19

SCREW

03211-0412A

$0.73

20

NUT, REAR TURNSIGNAL

09148-04021

$1.43

21

SCREW, REAR TURNSIGNAL

03541-0412A

$1.37

22

SCREW, REAR TURNSIGNAL

03541-0512A

$1.37

23

NUT, REAR TURNSIGNAL

09148-05038

$1.97

24

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$81.99

25

BRACKET, RELAY

38621-37H00

Unavailable

26

BOLT

01550-0612A

$1.97
