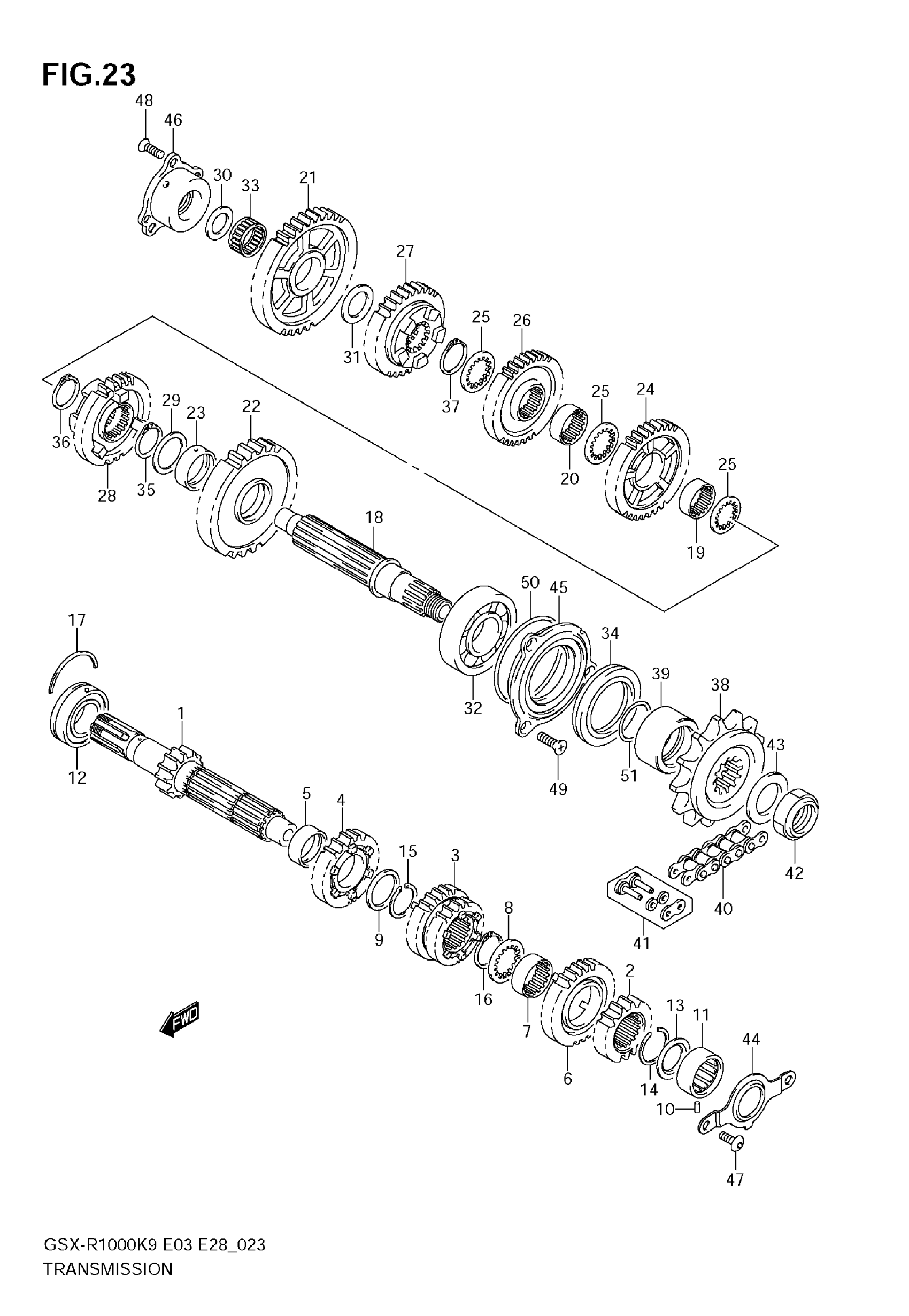

Suzuki GSX-R1000 (2009) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, CNTR (NT:16)

24120-47H00

Unavailable

2

GEAR,2ND DRIVE (NT:19)

24221-40F30

$118.08

3

GEAR, 3RD & 4TH DRIVE

24231-47H00

$211.72

4

GEAR, 5TH DRIVE (NT:25)

24251-47H00

$168.55

5

BUSH, 5TH DRIVE GEAR

24252-24F10

$35.47

6

GEAR, 6TH DRIVE (NT:26)

24261-47H00

$143.28

7

BUSH,6TH DRIVE GEAR

24262-24F20

$36.82

8

WASHER, 6TH DRIVE GEAR

09167-27001

$3.63

9

WASHER, 5TH DRIVE GEAR | 27X36X1

09160-27008

$3.68

10

PIN, COUNTER SHAFT BEAR

04221-07129

$1.86

11

BEARING, COUNTER SHAFT, L | 20X34X16

09263-20103

$75.13

12

BEARING, CNTR SHAFT, R | 25X52X20.6

09267-25013

$106.33

13

SEAL, OIL | 20X31.2X2.7

09285-20006

$6.51

14

CIRCLIP, 2ND DRIVE GEAR

09380-27004

$3.70

15

CIRCLIP, 5TH DRIVE GEAR

09380-27006

$2.73

16

CIRCLIP, 6TH DRIVE GEAR

09380-27006

$2.73

17

C-RING, CNTR SHAFT BRG, R

09390-58001

$3.42

18

SHAFT, DRIVE This part replaces 24131-47H00.

24131-47H01

$256.55

19

BUSH, 3RD DRIVEN GEAR

24332-24F20

$36.82

20

BUSH, 4TH DRIVEN GEAR

24332-24F20

$36.82

21

GEAR,1ST DRIVEN (NT:41)

24311-47H00

$171.00

22

GEAR, 2ND DRIVEN (NT:39)

24321-47H00

$171.00

23

BUSH, 2ND DRIVEN GEAR

24322-24F10

$35.47

24

GEAR, 3RD DRIVEN (NT:36) This part replaces 24331-47H00.

24331-47H10

Unavailable

25

WASHER, 3RD & 4TH DRIVE

24333-47H00

$7.77

26

GEAR,4TH DRIVEN (NT:36) This part replaces 24341-47H00.

24341-47H10

$186.30

27

GEAR,5TH DRIVEN (NT:34)

24351-47H00

$171.00

28

GEAR,6TH DRIVEN (NT:33) This part replaces 24361-47H00.

24361-17K00

$129.25

29

WASHER, 2ND DRIVEN GEAR | 30X40X1

09181-30167

$3.68

30

WASHER, 1ST DRIVEN GEAR, R | 22X34X1

09181-22223

$3.12

31

WASHER, 1ST DRIVEN GEAR, L | 24X34X1

09181-24005

$3.55

32

BEARING, DRIVE SHAFT, L | 30X62X23.8

09267-30014

$150.80

33

BEARING, 1ST DRIVEN GEAR | 24X28X13

09263-24030

$25.37

34

SEAL, DRIVE SHAFT OIL | 38X56X7

09283-38027

$38.93

35

CIRCLIP, 2ND DRIVEN GEAR

09380-30009

$3.49

36

CIRCLIP, 3RD DRIVEN GEAR

09380-30009

$3.49

37

CIRCLIP, 4TH DRIVEN GEAR

09380-30009

$3.49

38

SPROCKET, ENGINE

27510-15H10

$154.40

39

SPACER, ENGINE SPROCKET

27531-47H00

Unavailable

40

CHAIN ASSY, DRIVE (DID50VAZ)

27600-40F20-114

Unavailable

41

JOINT SET,DRIVE | OPT This part replaces 27620-40F20.

27620-40F21

$17.48

42

NUT, ENGINE SPROCKET

09159-22008

$30.18

43

WASHER, ENGINE SPROCKET | 27X42X1.5

09181-27016

$5.70

44

RETAINER,CL PUSH ROD OIL SEAL

24741-01H00

$7.32

45

RETAINER, DRIVE SHAFT BRG, L

24751-47H00

$106.45

46

HOUSING, DRIVE SHAFT SET

24771-01820

Unavailable

47

SCREW, PUSH ROD OIL SEAL | 6X13

09139-06153

$2.62

48

SCREW, DRIVE SHAFT BRG HOUSING | 6X20

09139-06159

$4.10

49

SCREW, DRIVE SHAFT BEARING RTNR | 6X20

09139-06159

$4.10

50

O-RING, DRIVE SHAFT RETURN | D:1.9,ID:61.5

09280-62004

$20.50

51

O-RING, ENGINE SPROCKET | D:2.4,ID:26.2

09280-26005

$2.30
