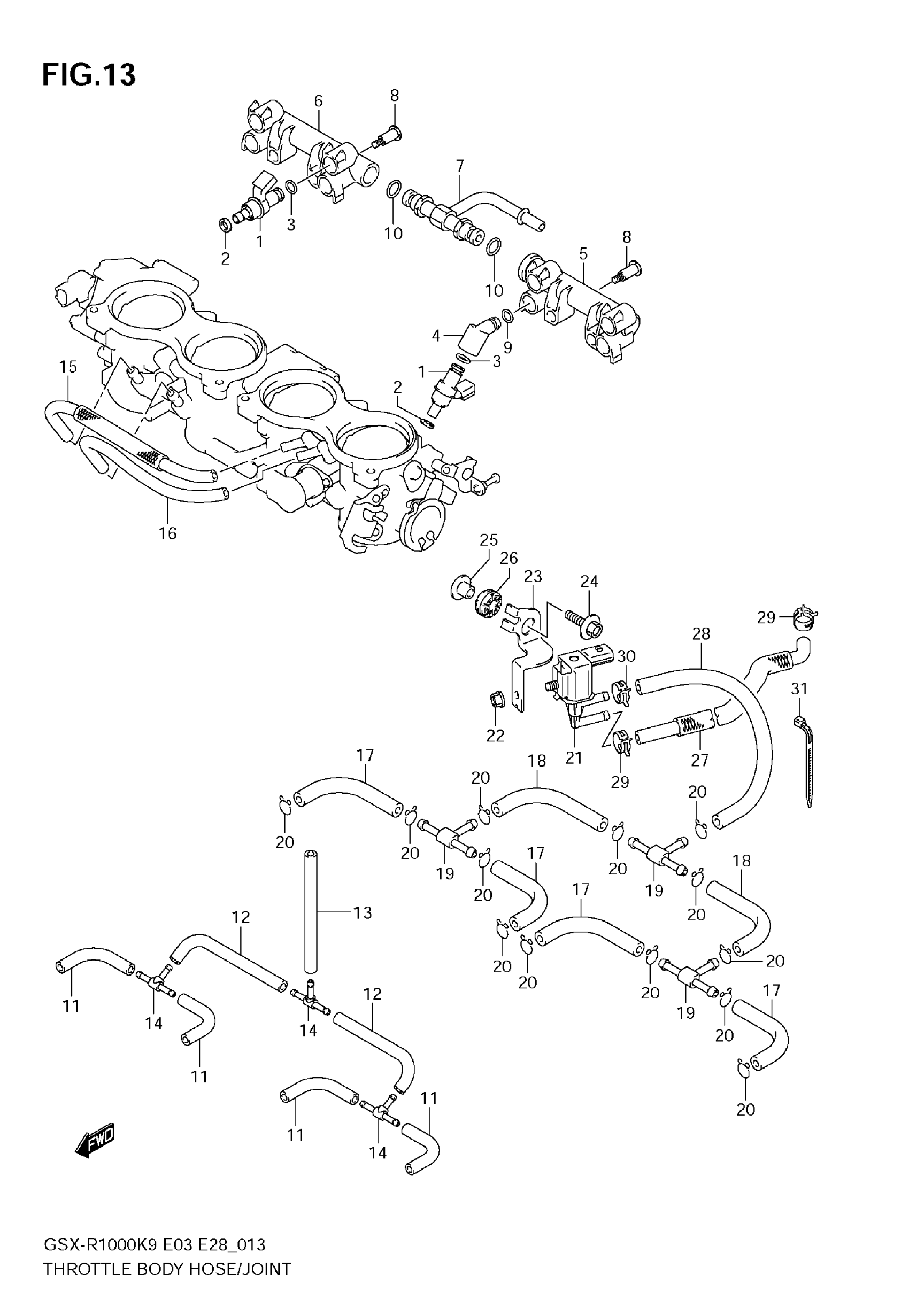

Suzuki GSX-R1000 (2009) THROTTLE BODY HOSE/JOINT Diagram

#

Description
Price

1

INJECTOR ASSY

15710-21H00

$309.40

2

.RING,SEAL

15722-21H00

$11.25

3

.O-RING

15721-21H00

$9.09

4

PIPE, FUEL

13473-21H00

$18.08

5

PIPE, FUEL

13474-47H00

Unavailable

6

PIPE, FUEL

13474-47H10

Unavailable

7

PIPE, FUEL

13473-15H00

Unavailable

8

SCREW

13601-35F00

$7.50

9

.O-RING

15721-24F00

$9.09

10

O-RING

15721-10G00

$9.09

11

HOSE, RUBBER (L:48)

13683-47H00

Unavailable

12

HOSE, RUBBER (L:92.5)

13683-47H10

Unavailable

13

HOSE,RUBBER(L:1 This part replaces 13697-24F20.

13697-24F21

$3.47

14

T JOINT

13471-24F30

$16.48

15

TUBE This part replaces 13680-21H10.

13680-21H11

$17.53

16

TUBE This part replaces 13698-21H00.

13698-21H01

$9.18

17

HOSE | E33

13683-21H10

Unavailable

18

HOSE | E33

13683-21H20

Unavailable

19

JOINT | E33

13685-36E50

Unavailable

20

CLIP | E33

13693-24F00

$3.22

21

VALVE,CANISTER PURGE | E33

18117-52G10

$151.17

22

NUT | E33

08316-1006A

$2.19

23

BRACKET | E33

13165-47H00

Unavailable

24

BOLT | E33

09116-06171

$3.08

25

SPACER | E33

09180-06319

$3.85

26

CUSHION | E33

09320-10055

$4.50

27

HOSE | E33

13680-47H00

Unavailable

28

HOSE | E33

13683-15H00

Unavailable

29

CLIP | E33

09401-11413

$2.26

30

CLIP | E33

09401-10411

$2.80

31

CLAMP | E33

09407-14403

$2.26
