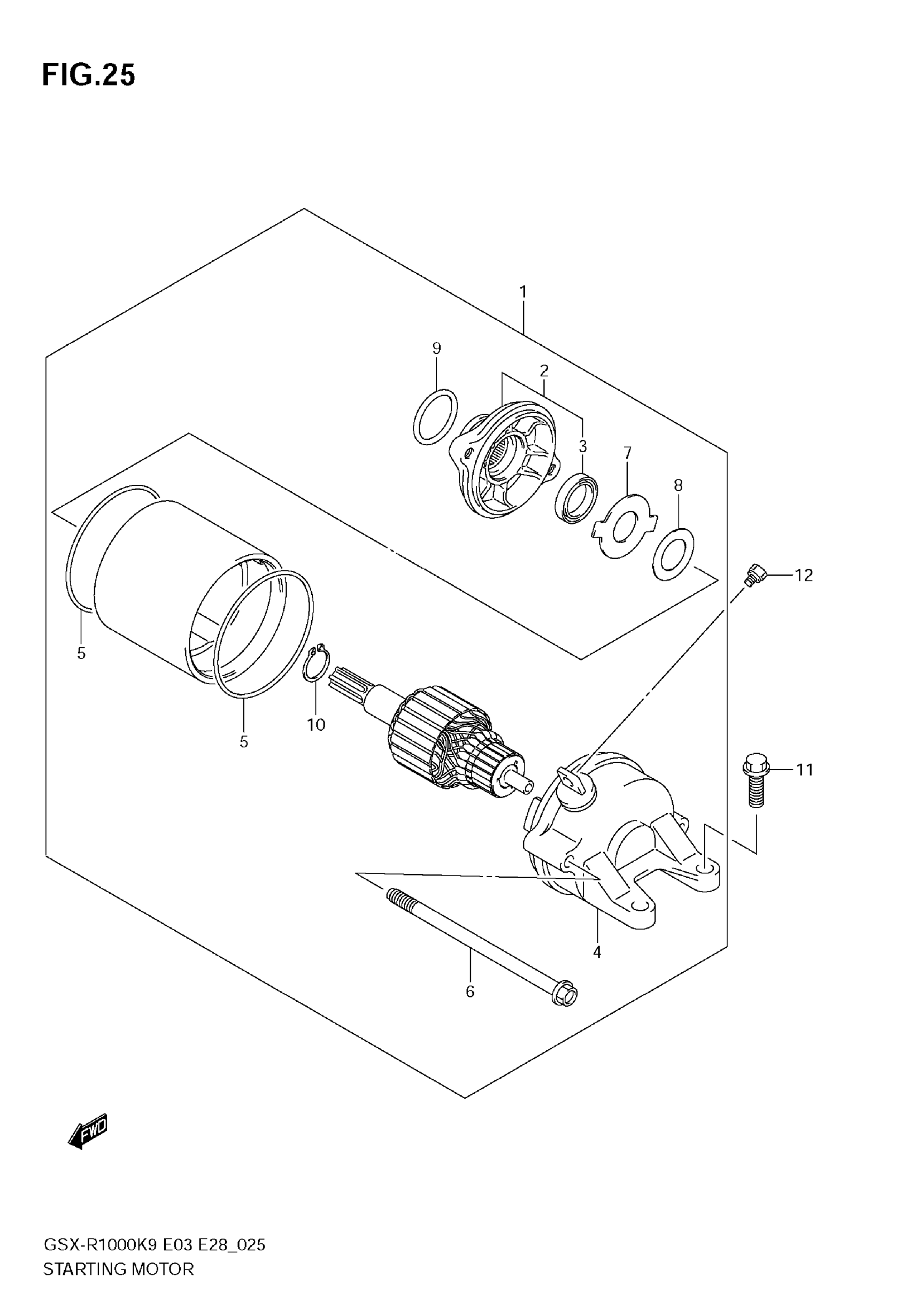

Suzuki GSX-R1000 (2009) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 10

31100-47H00

$858.22

2

HOUSING ASSY

31150-40F01

Unavailable

3

OIL SEAL

31153-49210

$27.32

4

FRAME ASSY

31175-40F01

$169.70

5

O RING

31264-32C10

$16.03

6

BOLT

31281-40F00

Unavailable

7

PLATE

31361-32C10

Unavailable

8

SHIM

31361-10200

Unavailable

9

O RING (DD:3,ID:24.5) | COLOR:BROWN

31156-40F01

$13.82

10

WASHER

31361-38300

Unavailable

11

BOLT, STARTING MOTOR (6X20)

09103-06223

$2.49

12

SCREW, STARTING MOTOR (5X8)

09137-05004

$2.50
