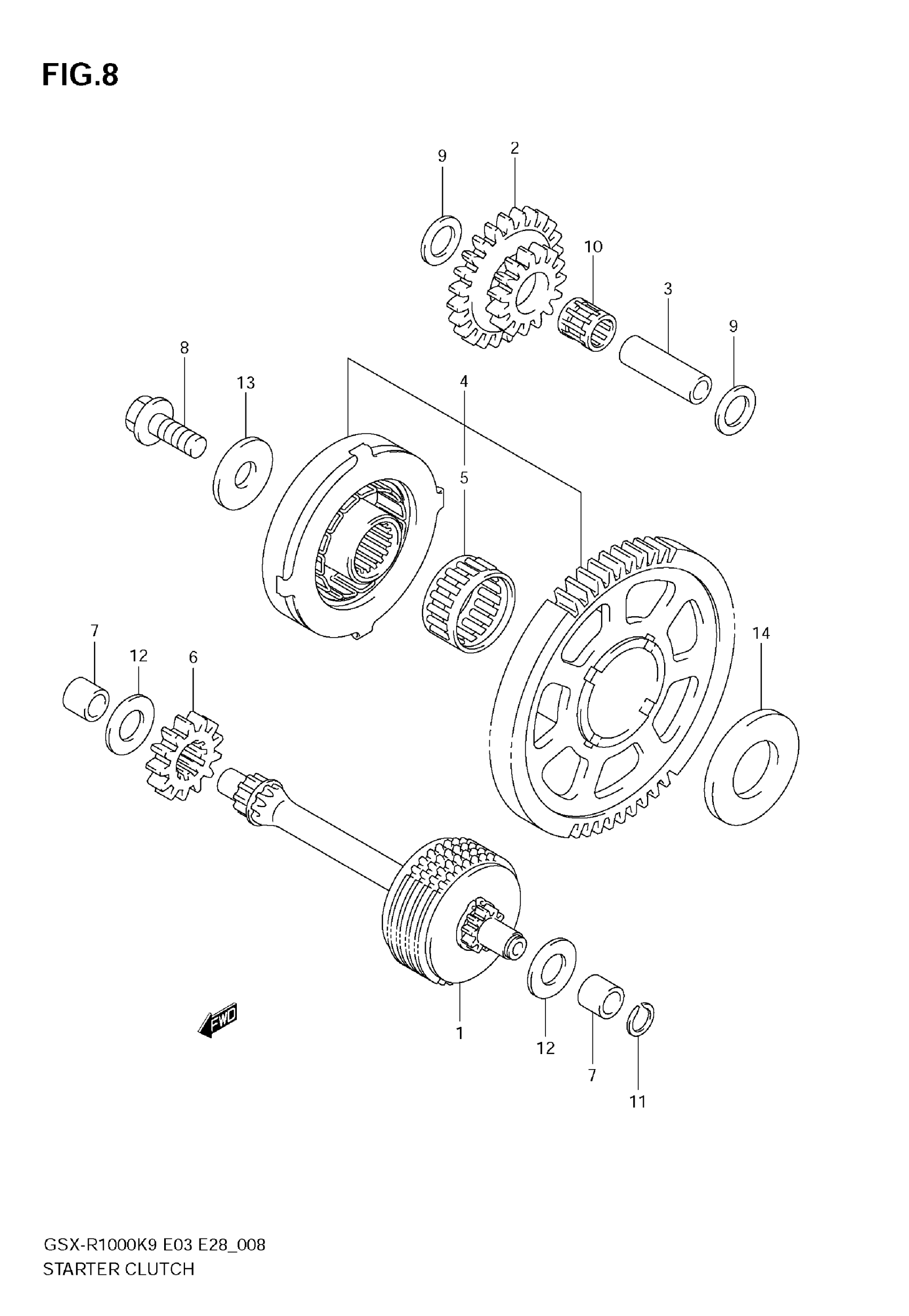

Suzuki GSX-R1000 (2009) STARTER CLUTCH Diagram

#

Description
Price

1

LIMITER ASSY, START IDLE NO.1 This part replaces 12600-47H00.

12600-47850

Unavailable

2

GEAR, STARTER IDLE NO.2

12612-47H00

$102.17

3

PIN

12151-09204

$10.17

4

CLUTCH SET,STAR | Includes Item(s) 5 This part replaces 12600-47840.

12600-47842

$215.13

5

BEARING

09263-26035

$71.72

6

GEAR, LIMITER DRIVEN

12617-47H00

$51.82

7

BUSH

12618-31G00

$4.03

8

BOLT

09103-10189

$4.04

9

WASHER

09181-12167

$2.26

10

BEARING

09263-12023

$10.19

11

CIRCLIP

09380-09003

$1.67

12

WASHER

08211-10221

$2.28

13

WASHER

08211-10285

$3.49

14

WASHER

08211-20403

$4.32
