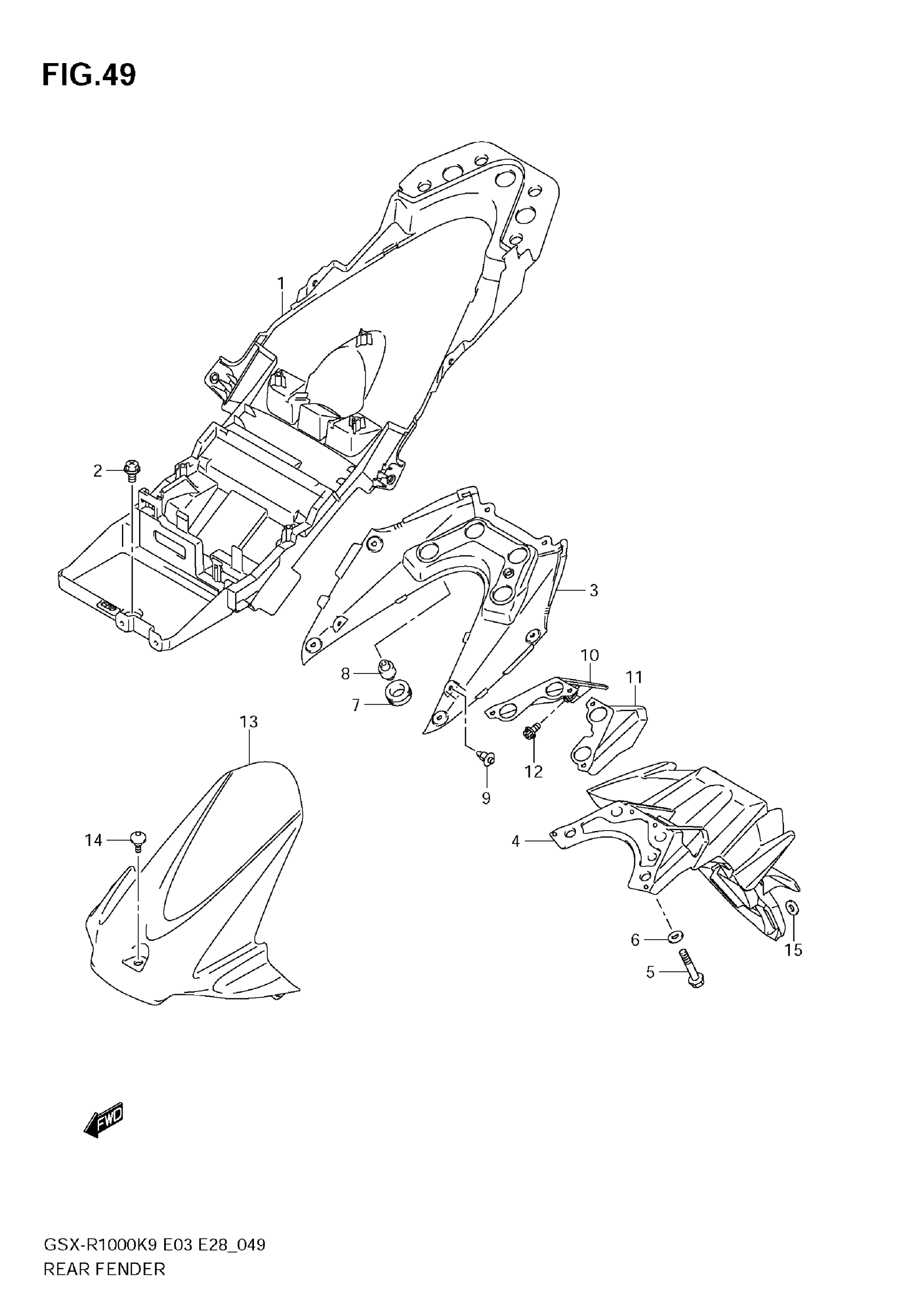

Suzuki GSX-R1000 (2009) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR FRONT This part replaces 63111-47H00.

63111-47H10

$154.22

2

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

$2.60

3

COVER, FENDER FRONT (BLACK) | FOR CRU This part replaces 63112-47H00-YKV.

63112-47H10-YKV

Unavailable

3

COVER,RR FENDER | FOR FGF This part replaces 63112-47H00-YMD.

63112-47H10-YMD

$142.00

3

COVER, FENDER FRONT (BLUE) | FOR GLR This part replaces 63112-47H00-YSF.

63112-47H10-YSF

Unavailable

3

COVER,REAR FEND | FOR GLR This part replaces 63112-47H00-YMK.

63112-47H10-YMK

Unavailable

4

FENDER, REAR REAR

63113-47H00

$148.07

5

BOLT

09103-06204

$2.82

6

WASHER (6.5X18X1.0)

09160-06028

$1.49

7

CUSHION (20X32X9) This part replaces 09320-20010.

09320-20011

$2.69

8

SPACER

63147-47H00

$24.20

9

CLIP, SIDE (BLACK)

09409-06314-5PK

$2.78

10

COVER, FENDER REAR RH (SILVER)

63170-47H00-YUS

Unavailable

11

COVER, FENDER REAR LH (SILVER)

63180-47H00-YUS

Unavailable

12

BOLT

07120-0510B

$3.05

13

FENDER, REAR LOWER

63114-47H00

$54.18

14

BOLT

09139-06131

$2.93

15

WASHER, PLATE

08322-0106A

$1.84
