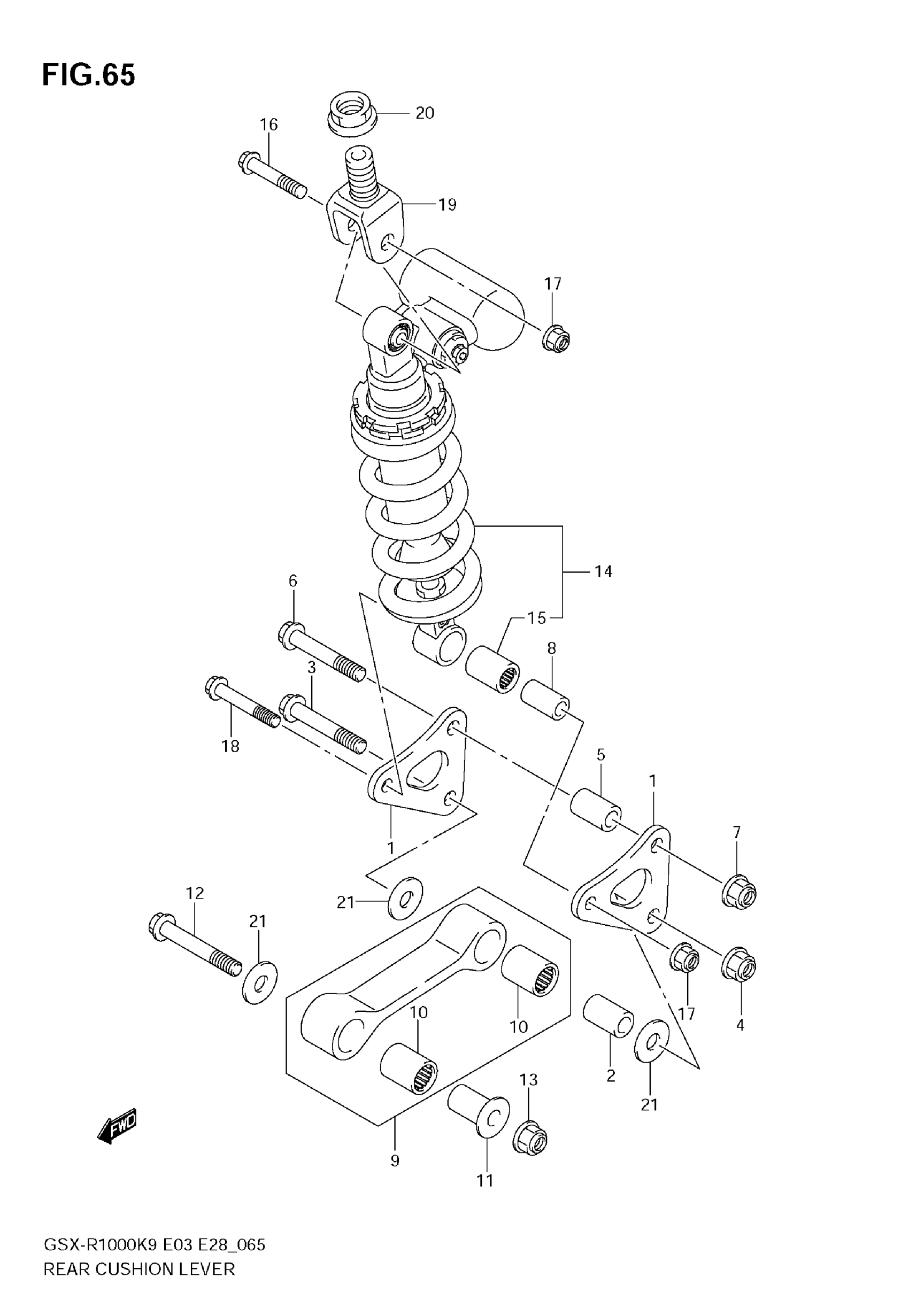

Suzuki GSX-R1000 (2009) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION

62611-47H00

$32.52

2

SPACER, LOWER

62317-27C10

$16.76

3

BOLT, LOWER

62658-47H00

$10.75

4

NUT

09159-12056

$7.37

5

SPACER, UPPER

62317-44B00

$21.03

6

BOLT, UPPER

62658-47H00

$10.75

7

NUT

09159-12056

$7.37

8

SPACER, FRONT

62317-47H00

$20.45

9

ROD SET,RR CUSH | Includes Item(s) 10 This part replaces 62600-47810.

62600-47811

$157.23

10

.BEARING This part replaces 09263-20074.

09263-20116

$31.15

11

SPACER, ROD

62647-47H00

$35.28

12

BOLT,RR CUSHION ROD

62621-47H00

$14.27

13

NUT

09159-12056

$7.37

14

ABSORBER ASSY, REAR SHOCK | E3,E33

62100-47820-163

Unavailable

14

ABSORBER ASSY, REAR SHOCK | E28; Includes Item(s) 15

62100-47810-163

Unavailable

15

BEARING

09263-17046

$41.45

16

BOLT, UPPER (10X55)

09103-10143

$4.52

17

NUT

09159-10115

$3.55

18

BOLT, LOWER (10X55)

62313-47H00

$11.95

19

BRACKET,RR SHOCK ABSORBER UPR

62993-47H00

$135.35

20

NUT

62994-47H00

$42.02

21

WASHER

09160-12037

$3.83
