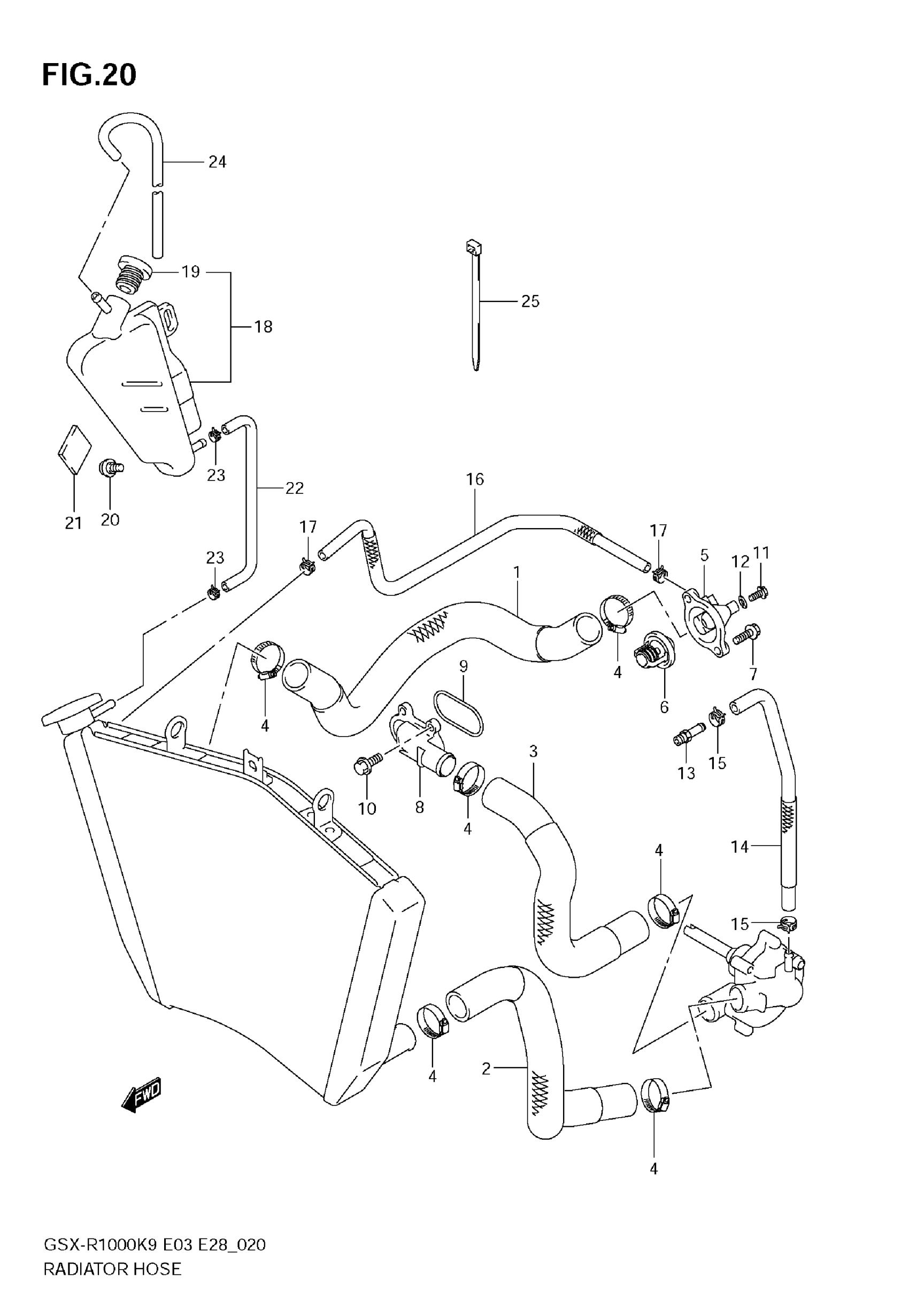

Suzuki GSX-R1000 (2009) RADIATOR HOSE Diagram

#

Description
Price

1

HOSE, RADIATOR INLET

17851-47H00

Unavailable

2

HOSE, RADIATOR OUTLET

17852-47H00

Unavailable

3

HOSE, CYLINDER INLET

17853-47H00

$64.72

4

CLAMP

09402-38512

$10.73

5

COVER, THERMOSTAT

17661-35F00

$57.22

6

THERMOSTAT COMP This part replaces 17670-47H00.

17670-47H01

$24.44

7

BOLT

01547-0620A

$2.01

8

CONNECTOR, CYLINDER INLET

17861-47H00

Unavailable

9

O RING

17863-47H00

$9.70

10

BOLT

01547-0620A

$2.01

11

BOLT, THERMOSTAT COVER AIR

17568-50F00

$6.32

12

GASKET (6.4X11.5X0.8)

09168-06026

$2.80

13

UNION, BYPASS

09362-09011

$7.57

14

HOSE, WATER BYPASS

17854-47H00

Unavailable

15

CLIP This part replaces 09401-12409.

09401-12414

$2.98

16

HOSE, WATER AIR BLEED

17855-47H00

Unavailable

17

CLIP (ID:10.5,H:8)

09401-10409

$2.28

18

TANK ASSY, RESERVOIR | Includes Item(s) 19

17910-47H00

$87.95

19

.CAP,RESERVOIR TANK

17931-02FA0

$5.09

20

BOLT

09111-06085

$4.16

21

CUSHION

63191-25C00

$2.88

22

HOSE, RESERVOIR TANK INLET

17981-47H00

$15.47

23

CLIP

09401-08411

$1.77

24

HOSE, OVER FLOW

17982-47H00

Unavailable

25

CLAMP

09407-10404

$2.71
