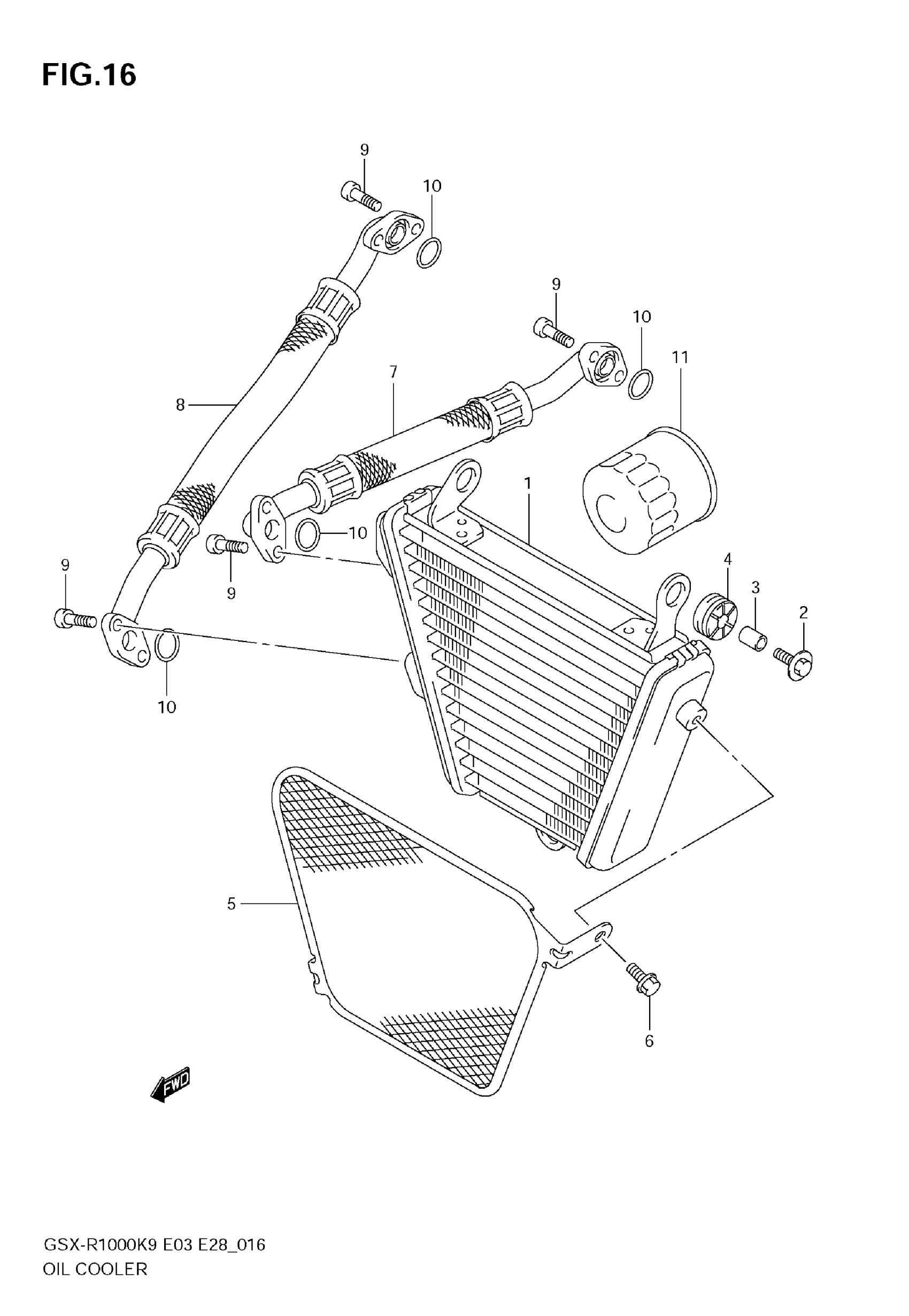

Suzuki GSX-R1000 (2009) OIL COOLER Diagram

#

Description
Price

1

COOLER ASSY, OIL

16600-47H00

Unavailable

2

BOLT

09118-06122

$4.23

3

SPACER

09180-06290

$2.09

4

CUSHION

09320-10051

$2.91

5

GUARD, OIL COOLER This part replaces 16650-47H00.

16650-47H10

$129.67

6

BOLT

01550-0610A

$2.01

7

HOSE, OIL COOLER RH

16460-47H00

$206.92

8

HOSE, OIL COOLER LH

16470-47H00

Unavailable

9

BOLT, CRANKCASE LOWER

09106-06073

$2.44

10

O RING

09280-15015

$4.55

11

FILTER, ENGINE OIL This part replaces 16510-03G00-X07.

16510-07J00

$12.35
