2009 Suzuki GSX-R1000 Muffler Diagram

← All diagrams

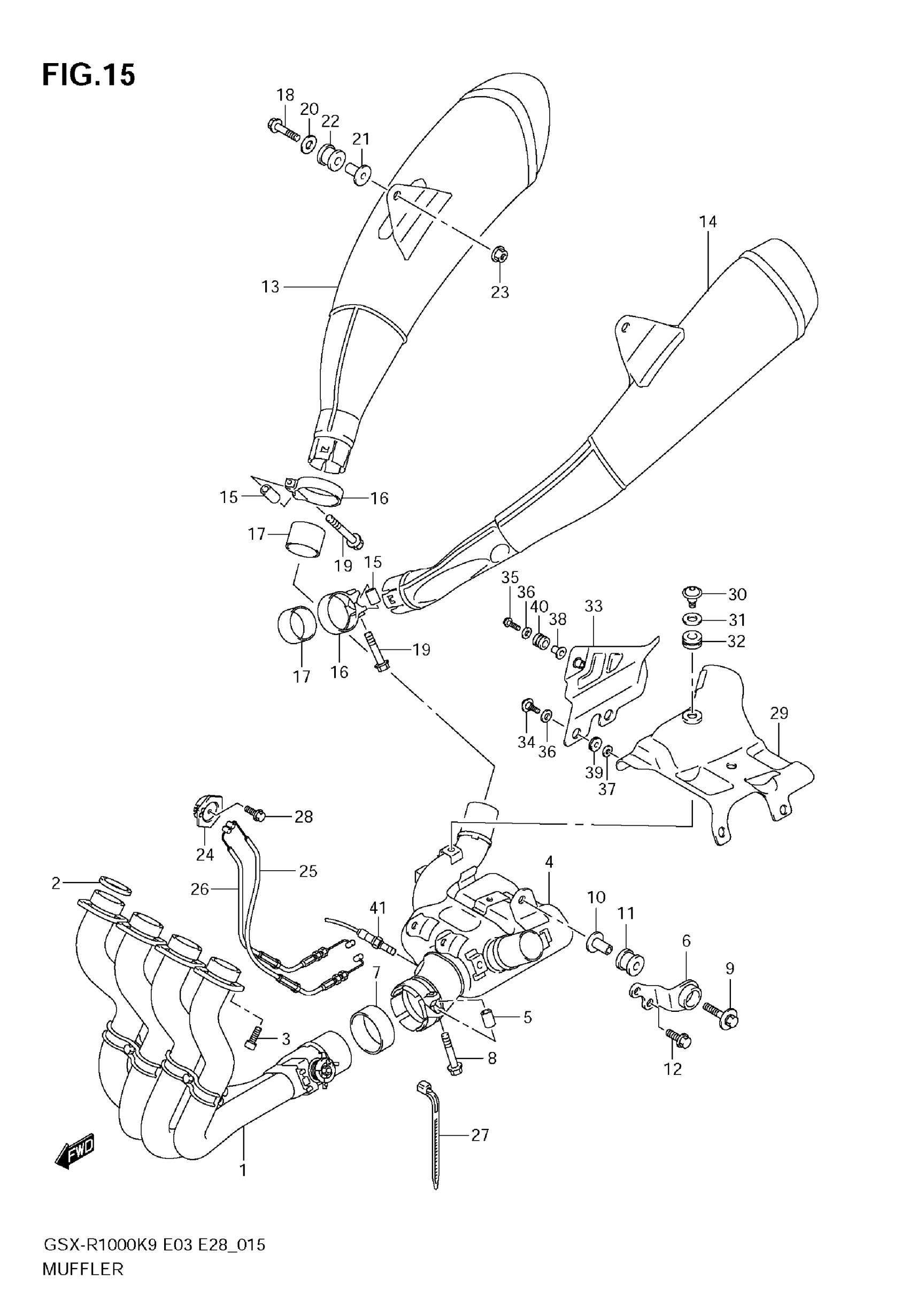

Find the part on the Muffler diagram for your 2009 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki GSX-R1000 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE, EXHAUST

14100-47H00

1
Out of stock

2

.GASKET,EXHAUST PIPE

14181-22D01

4
Out of stock

3

BOLT

09106-08165

8
Out of stock

4

CHAMBER | W/CATALYST

14200-47H00

1
Out of stock

5

SPACER

14458-06H00

1

$7.95

In stock

6

BRACKET

14770-47H00

1
Out of stock

7

CONNECTOR

14771-21H00

1
Out of stock

8

BOLT

09103-08392

1
Out of stock

9

BOLT (8X45) This part replaces 09118-08152.

09118-08152-A05

3
Out of stock

10

SPACER

09180-08152

3
Out of stock

11

CUSHION

09320-12077

3
Out of stock

12

BOLT (8X16)

01550-0816A

2
Out of stock

13

BODY,MUFFLER,R This part replaces 14310-47H00-H01.

14310-47H02-H01

1
Out of stock

14

BODY,MUFFLER,L This part replaces 14340-47H00-H01.

14340-47H02-H01

1
Out of stock

15

SPACER

14458-06H00

2

$7.95

In stock

16

CLAMP

14459-21H30

2
Out of stock

17

CONNECTOR

14771-42F10

2
Out of stock

18

BOLT

09103-08358

2
Out of stock

19

BOLT

09103-08392

2
Out of stock

20

WASHER

09160-08142

2
Out of stock

21

SPACER

09180-08152

2
Out of stock

22

CUSHION

09320-12077

2
Out of stock

23

NUT

08361-2508A

2

$2.10

In stock

24

1

$32.50

In stock

25

CABLE, EXH VALVE NO.1

11276-47H00

1
Out of stock

26

CABLE, EXH VALVE NO.2

11277-47H00

1
Out of stock

27

CLAMP

09407-14403

1
Out of stock

28

BOLT

01547-0516A

1
Out of stock

29

GUARD, CHAMBER HEAT NO.1

14731-47H00

1
Out of stock

30

SCREW

09139-06124

5
Out of stock

31

WASHER

09160-08043

5
Out of stock

32

CUSHION This part replaces 09320-08030.

09320-08511

5
Out of stock

33

GUARD, CHAMBER HEAT NO.2

14732-47H00

1
Out of stock

34

SCREW

09139-06028

2

$3.58

In stock

35

SCREW

09139-06029

1
Out of stock

36

WASHER

09160-06094

3
Out of stock

37

WASHER

09169-06040

2
Out of stock

38

SPACER (6.2X8.4X10.9)

09180-06331

1
Out of stock

39

CUSHION This part replaces 09320-08030.

09320-08511

2
Out of stock

40

CUSHION

09320-09501

1
Out of stock

41

SENSOR, OXYGEN This part replaces 18213-18H00.

18213-18H10

1
Out of stock
