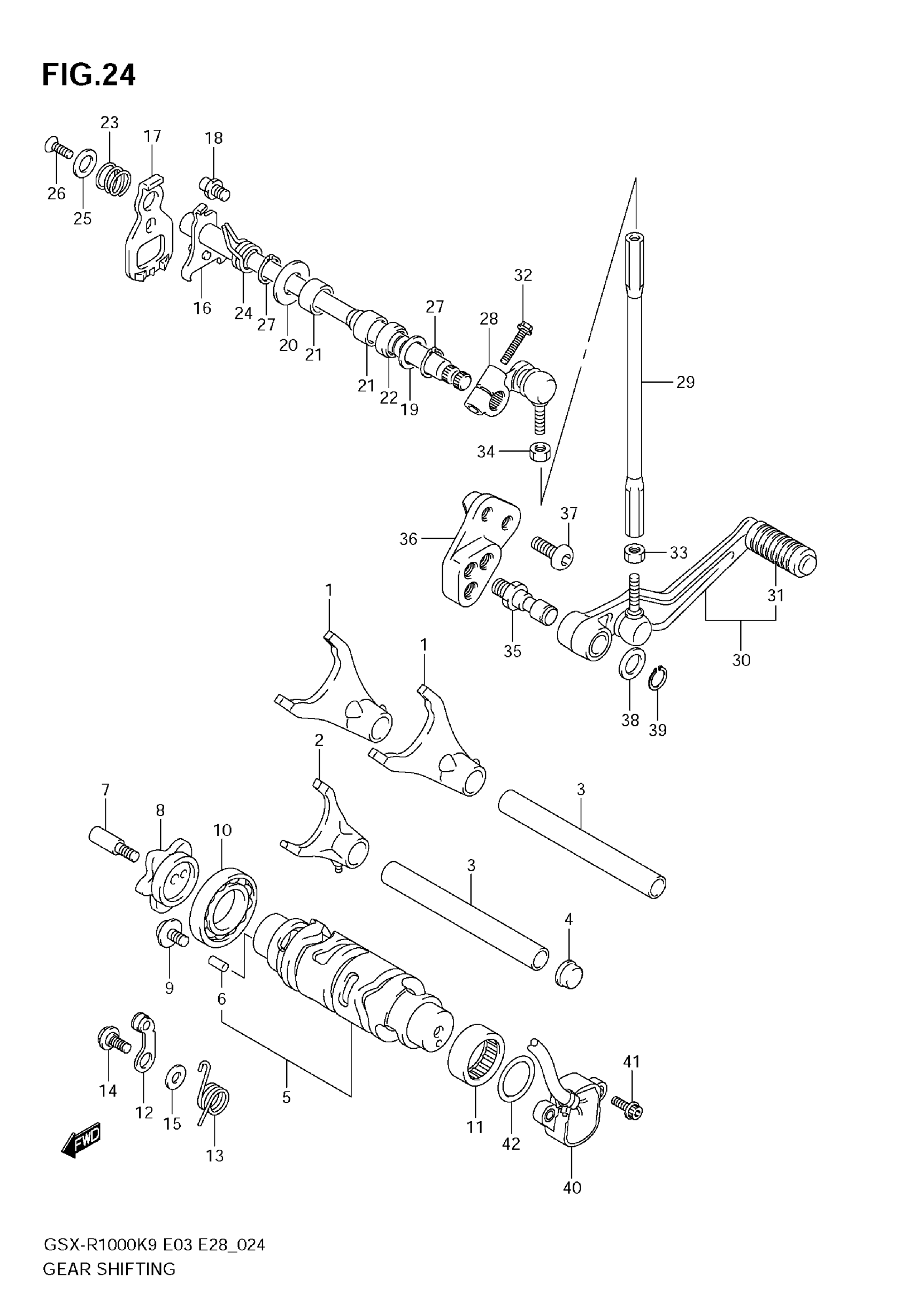

Suzuki GSX-R1000 (2009) GEAR SHIFTING Diagram

#

Description
Price

1

FORK,GEAR SHIFT NO.1 This part replaces 25211-01H10.

25211-01H11

$87.97

2

FORK,GEAR SHIFT NO.3 This part replaces 25231-01H01.

25231-01H02

$86.33

3

SHAFT, GEAR SHIFT FORK

25411-27A00

$33.02

4

PLUG, GEAR SHIFT FORK SHAFT

25712-37H00

$8.55

5

CAM, GEAR SHIFT | Includes Item(s) 6

25310-47H00

Unavailable

6

PIN (4X13.8)

04221-04089

$1.10

7

BOLT, GEAR SHIFT CAM PLATE

25312-42F01

$7.28

8

PLATE, GEAR SHIFT CAM

25381-13E30

$63.98

9

SCREW, GEAR SHIFT CAM RETAINER | 6X12

09136-06147

$3.48

10

BEARING, GEAR SHIFT CAM | 25X47X8

09262-25006

$23.05

11

BEARING, GEAR SHIFT CAM, L | 25X32X12

09263-25018

$19.30

12

STOPPER,SHIFT CAM This part replaces 25350-06G00.

25350-06G10

$20.35

13

SPRING, GEAR SHIFT CAM

25355-01H00

$5.75

14

BOLT, SHIFT CAM STOPPER ARM | 6X14.3

09111-06041

$2.63

15

WASHER, CAM STOPPER THRUST

08211-06141

$1.61

16

SHAFT, GEAR SHIFT

25510-47H00

Unavailable

17

PLATE,GEAR SHIFT CAM DRIVE This part replaces 25512-06G10.

25512-06G20

$22.32

18

STOPPER, GEAR SHIFT ARM

25671-01011

$4.09

19

WASHER, GEAR SHIFT SHAFT, L | 14X29X0.8

09160-14016

$1.91

20

WASHER, GEAR SHIFT SHAFT | 14X24X1

09181-14195

$3.30

21

BEARING, GEAR SHIFT SHAFT | 14X20X12

09263-14027

$12.21

22

SEAL, GEAR SHIFT SHAFT OIL | 14X22X6

09283-14006

$6.04

23

SPRING, GEAR SHIFT PLATE

25518-01H00

Unavailable

24

SPRING, SHIFT SHAFT RETURN

09444-20001

$4.80

25

WASHER, GEAR SHIFT SHAFT END

25519-01H00

$6.75

26

BOLT, GEAR SHIFT SHAFT END | 6X16

09126-06014

$2.07

27

CIRCLIP, GEAR SHIFT SHAFT

08331-3114A

$1.89

28

ARM,GEAR SHIFT This part replaces 25520-01H00.

25520-01H01

$42.85

29

ROD, GEAR SHIFT LINK

25525-01H00

$28.75

30

LEVER ASSY,GEAR | Includes Item(s) 31 This part replaces 25600-47H00.

25600-47H01

$123.06

31

RUBBER, GEAR SHIFT PEDAL

25652-20C00

$4.98

32

BOLT, GEAR SHIFT LINK ARM

01547-0625A

$2.01

33

NUT, GEAR SHIFT LINK ROD, L

09140-06025

$1.84

34

NUT, GEAR SHIFT LINK ROD

09140-06020

$1.67

35

SHAFT, GEAR SHIFT LEVER

25617-03F10

$11.29

36

BRACKET, GEAR SHIFT LEVER This part replaces 25681-47H00.

25681-47H01

Unavailable

37

BOLT, GEAR SHIFT LEVER BRCKT | 8X20

09106-08167

$3.15

38

WASHER, GEAR SHIFT LEVER | 12.5X20X1

09160-12011

$1.48

39

CIRCLIP, GEAR SHIFT LEVER

08331-3112A

$1.77

40

SENSOR ASSY,GEAR POSITION This part replaces 37730-01H01.

37730-14J01

$67.60

41

BOLT, GEAR SHIFT SWITCH | 5X16

09106-05023

$2.80

42

O-RING, GEAR SHIFT LEVER | D:2.4,ID:26.2

09280-26005

$2.31
