Description

Price

1

WASHER, PRI DRIVEN GEAR THR | 25X54X2.4

09160-25073

$15.75

2

BEARING, PRIMARY DRIVEN GEAR | 35X40X26.8

09263-35015

$30.38

3

GEAR ASSY, PRIMARY DRIVEN

21200-47810

$577.12

4

SPACER, OIL PUMP DRIVE

21253-01H10

$46.80

5

BEARING, OIL PUMP DRIVE | 35X40X12

09263-35045

$25.43

6

HUB, CLUTCH SLEEVE

21410-41G40

$259.70

7

SPRING, CLUTCH

21413-47H00

$11.18

8

WASHER, CLUTCH SPRING

21414-29F00

$5.88

9

PLATE, CLUTCH DRIVE NO.1

21441-42F20

$26.42

10

PLATE, CLUTCH DRIVE NO.2

21442-42F10

$37.43

11

PLATE, CLUTCH DRIVEN NO.1

21451-47H00

$19.52

12

PLATE, CLUTCH DRIVEN NO.2

21451-47H10

$18.18

13

PLATE, CLUTCH DRIVEN NO.3

21451-47H20

$19.52

14

DISC, CLUTCH PRESSURE

21462-41G10

$89.50

15

SEAT,WAVE WASHER

21471-02F20

$19.60

16

WASHER,CLUTCH PLATE WAVE

21472-02F20

$28.17

17

BOLT, CLUTCH SPRING

21482-41G10

$3.07

18

CAM,CLUTCH DRIVE

21611-41G20

$158.50

19

CAM,CLUTCH DRIVEN

21612-41G20

$133.88

20

WASHER,CAM REACTION WAVE

21621-41G00

$13.97

21

WASHER, CAM REACTION SEAT

21624-41G20

$17.53

22

LIFTER, CLUTCH PRESSURE DISK

21622-41G10

$13.52

23

NUT, CL PRESS DISC LIFT LOCK

21623-41G00

$2.80

24

WASHER, LIFTER LOCK NUT

09181-08139

$1.92

25

NUT, CLUTCH SLEEVE HUB

09159-24010

$11.92

26

.WASHER (25X50X2.5) | 25X50X2.5

09160-25056

$10.63

27

WASHER, CLUTCH SLEEVE HUB | 25X41X2.5

09160-25077

$11.38

28

WASHER, CLUTCH SLEEVE HUB WAVE

09164-24008

$5.00

29

ROD, CLUTCH

23110-27A00

$19.86

30

ROD, CLUTCH PUSH, L

23111-47H00

$21.88

31

PIECE, CLUTCH PUSH

23121-41G20

Unavailable

32

CAMSHAFT,CLUTCH RELEASE

23122-41G00

$64.22

33

CAP, CLUTCH PUSH ROD

23123-41G00

$10.01

34

SPRING, CLUTCH RELEASE RETURN

23125-41G00

$2.97

35

ARM, CLUTCH RELEASE This part replaces 23271-41G30.

23271-41G31

$64.42

36

BOLT, CL RELEASE ARM | 6X20

09103-06223

$2.49

37

SCREW, CLUTCH PUSH ROD | 6X73

09134-06015

$6.21

38

WASHER, CLUTCH RELEASE | 10.5X24X1

09160-10020

$1.86

39

WASHER, CLUTCH PUSH | 15.5X28X1

09160-15045

$3.52

40

BEARING, CLUTCH PUSH | 15X28X2

09263-15003

$7.49

41

BEARING, CLUTCH RELEASE LOW | 10X14X10

09263-10014

$12.21

42

BEARING, CLUTCH RELEASE UPR | 12X18X12

09263-12027

$6.59

43

SEAL, CL RELEASE | 10X20X6

09282-10012

$7.20

44

SEAL, CLUTCH PUSH ROD OIL | 6X34X10.5

09283-06010

$15.16

45

SEAL, CLUTCH PUSH ROD CAP | 10X17X5

09285-10004

$3.04

46

NUT, CLUTCH RELEASE ADJ

08310-0006A

$1.83

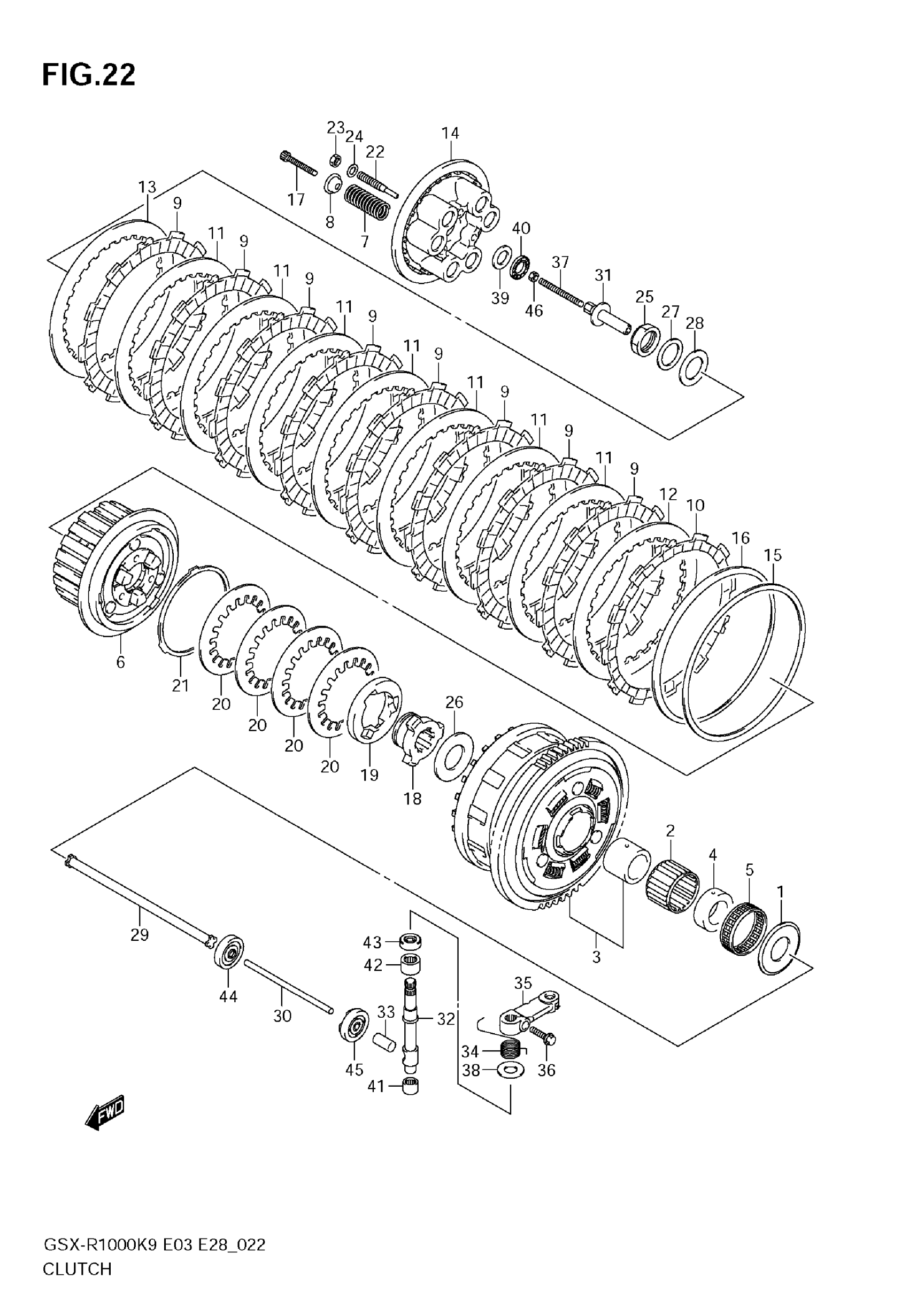

Suzuki GSX-R1000 (2009) CLUTCH Diagram
