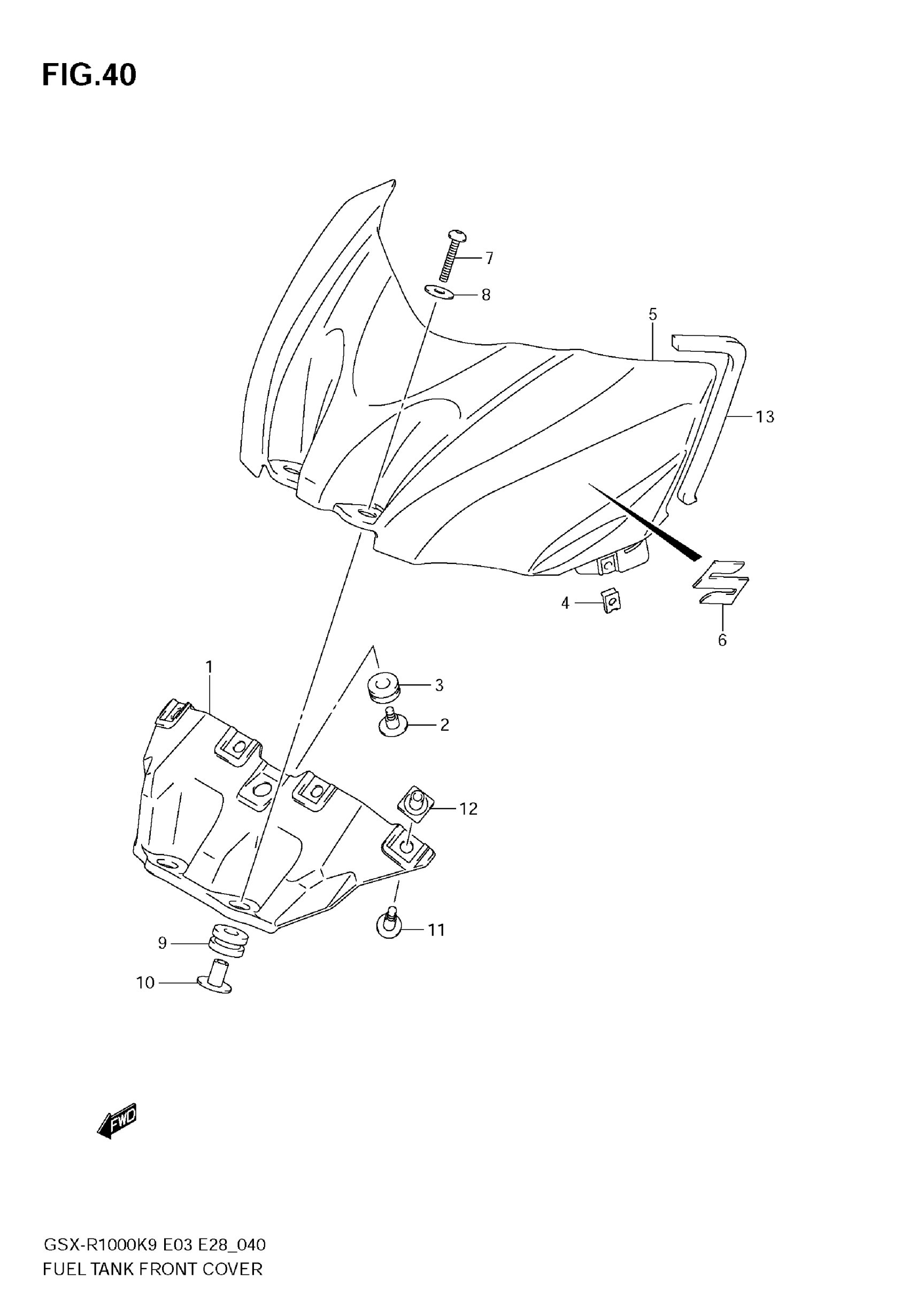

Suzuki GSX-R1000 (2009) FUEL TANK FRONT COVER Diagram

#

Description
Price

1

BRACKET, FRONT

44521-47H00

Unavailable

2

SCREW

09139-05078

$3.49

3

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

4

NUT

09148-05052

$3.37

5

COVER, FRONT (BLACK) | FOR CRU

44291-47H00-YKV

Unavailable

5

COVER, FRONT (WHITE) | FOR FGF

44291-47H00-YBD

Unavailable

5

COVER, FRONT (BLUE) | FOR GLR

44291-47H00-YSF

$327.07

5

COVER, FRONT (RED) | FOR GRD

44291-47H00-YMK

Unavailable

6

EMBLEM

68111-18G20

$32.30

7

BOLT, FRONT

09139-06105

$7.35

8

WASHER

09160-06054

$1.62

9

CUSHION (10X22X13)

09320-10050

$3.35

10

SPACER

44512-47H00

$12.82

11

SCREW

09139-06181

$3.83

12

NUT

44523-47H00

$10.02

13

CUSHION

44277-37H00

$5.18
