2009 Suzuki GSX-R1000 Frame Cover Diagram

← All diagrams

Find the part on the Frame Cover diagram for your 2009 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

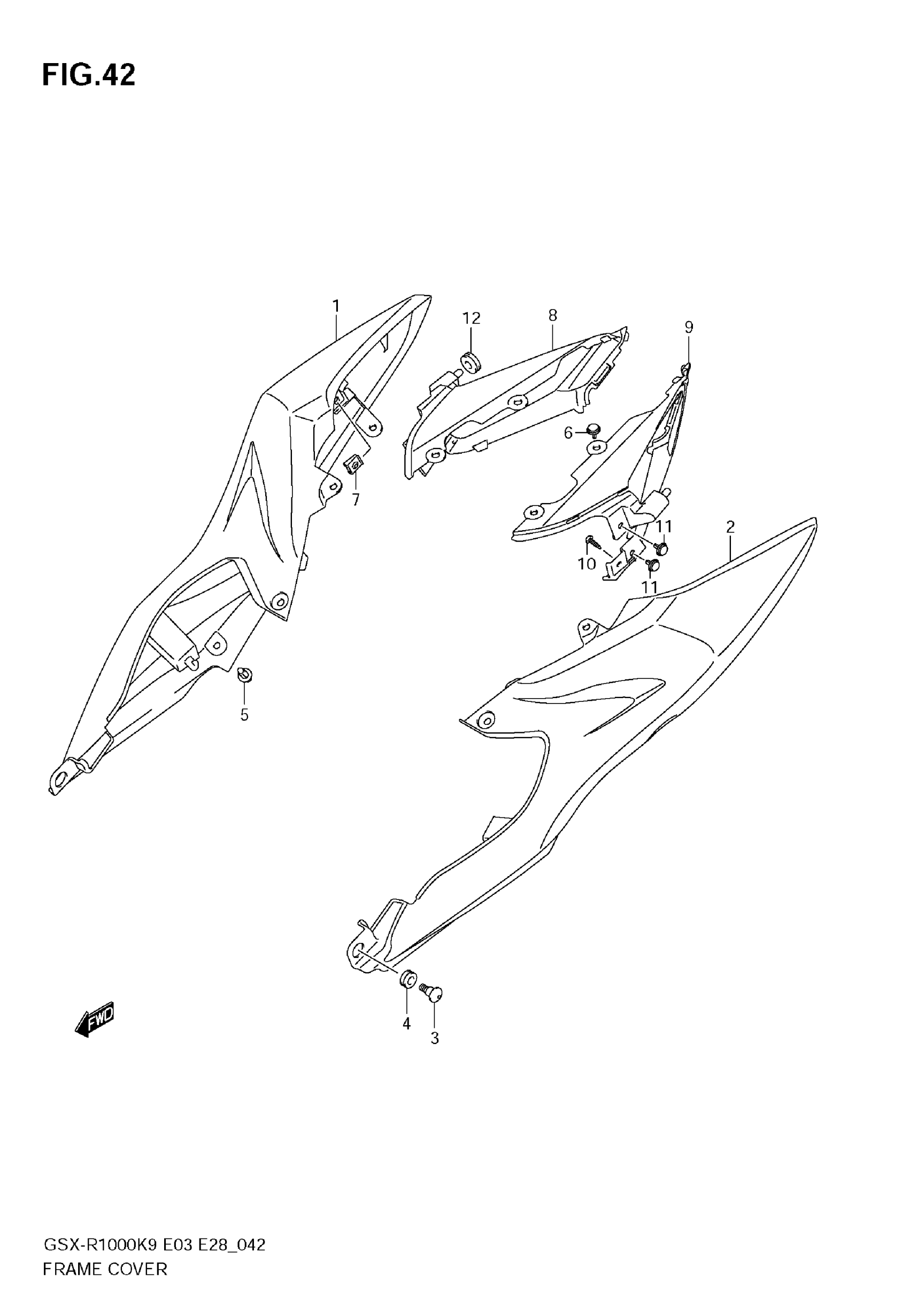

2009 Suzuki GSX-R1000 Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$220.40

In stock

1

1

$216.32

In stock

2

1

$220.40

In stock

2

1

$220.40

In stock

3

SCREW, FRONT

47133-43H00

2
Out of stock

4

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

2
Out of stock

5

CLIP (BLACK)

09409-06314-5PK

2

$2.92

In stock

6

CLIP

09409-06328

4
Out of stock

7

NUT

09148-05038

2
Out of stock

8

1

$125.30

In stock

9

1

$122.98

In stock

10

SCREW

03541-0512A

2
Out of stock

11

CLIP

09409-06328

4
Out of stock

12

CUSHION

09320-06504

2
Out of stock
← Frame Center Cover Frame Side Cover →
