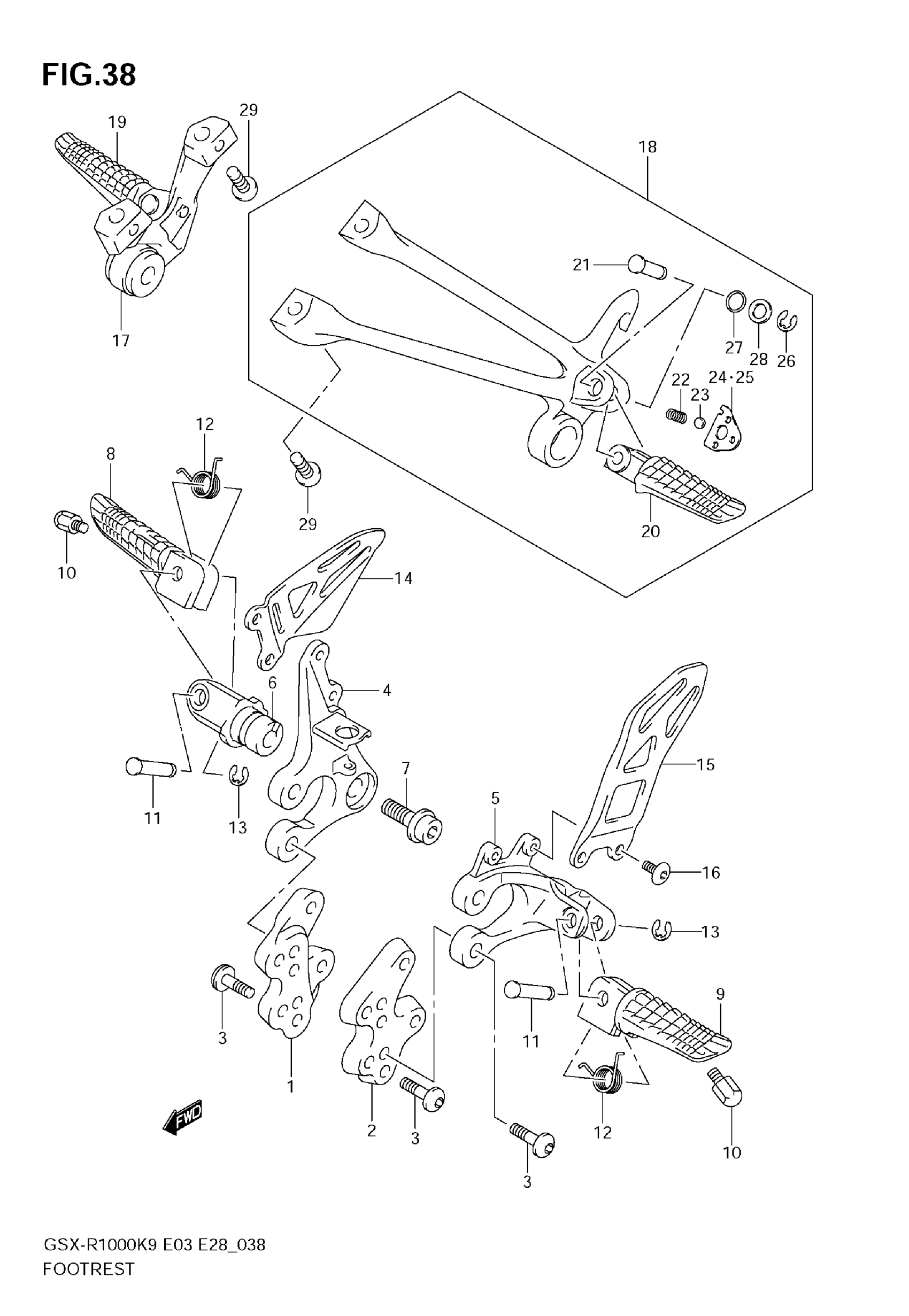

Suzuki GSX-R1000 (2009) FOOTREST Diagram

#

Description
Price

1

BRACKET, FRONT NO.1 RH

43541-47H00

$74.95

2

BRACKET, FRONT NO.1 LH

43551-47H00

$72.20

3

BOLT

09106-08186

$3.08

4

BRACKET, FRONT NO.2 RH

43511-47H00

$159.87

5

BRACKET, FRONT NO.2 LH This part replaces 43521-47H00.

43521-47H10

$153.22

6

HOLDER, FOOTREST RH

43531-41G10

$111.40

7

BOLT, RH

09106-10064

$4.42

8

BAR, FOOTREST RH

43516-37H00

$54.45

9

BAR, FOOTREST LH

43526-37H00

$37.35

10

BOLT, BANK SENSOR

43576-48B02

$6.85

11

PIN

09208-08010

$2.80

12

SPRING

09448-14037

$2.90

13

E RING

08332-1106A

$1.43

14

GUARD, FOOTREST RH

43571-47H00

$90.33

15

GUARD, FOOTREST LH This part replaces 43576-47H00.

43576-47H10

$88.67

16

SCREW,FOOTREST GUARD,L This part replaces 43577-35F00.

43577-35F10

$3.65

17

FOOTREST ASSY, PILLION RH

43600-47H00

$321.47

18

FOOTREST ASSY, PILLION LH | Includes Item(s) 19 - 28

43700-47H00

$321.47

19

BAR,PILLION FOOTREST,R This part replaces 43611-37H00.

43611-37H20

$50.40

20

BAR,PILLION FOOTREST,L This part replaces 43621-37H00.

43621-37H20

$48.75

21

PIN

09208-08020

$3.62

22

SPRING

09440-05005

$1.45

23

BALL

06111-07004

$1.22

24

.PLATE,PILLION FOOTREST,R

43816-47H00

Unavailable

25

.PLATE,PILLION FOOTREST,L

43826-47H00

$8.21

26

E RING

08332-1106A

$1.43

27

O RING

09280-08013

$2.67

28

WASHER This part replaces 09160-08091.

09160-08082

$1.64

29

BOLT

09106-08186

$3.08
