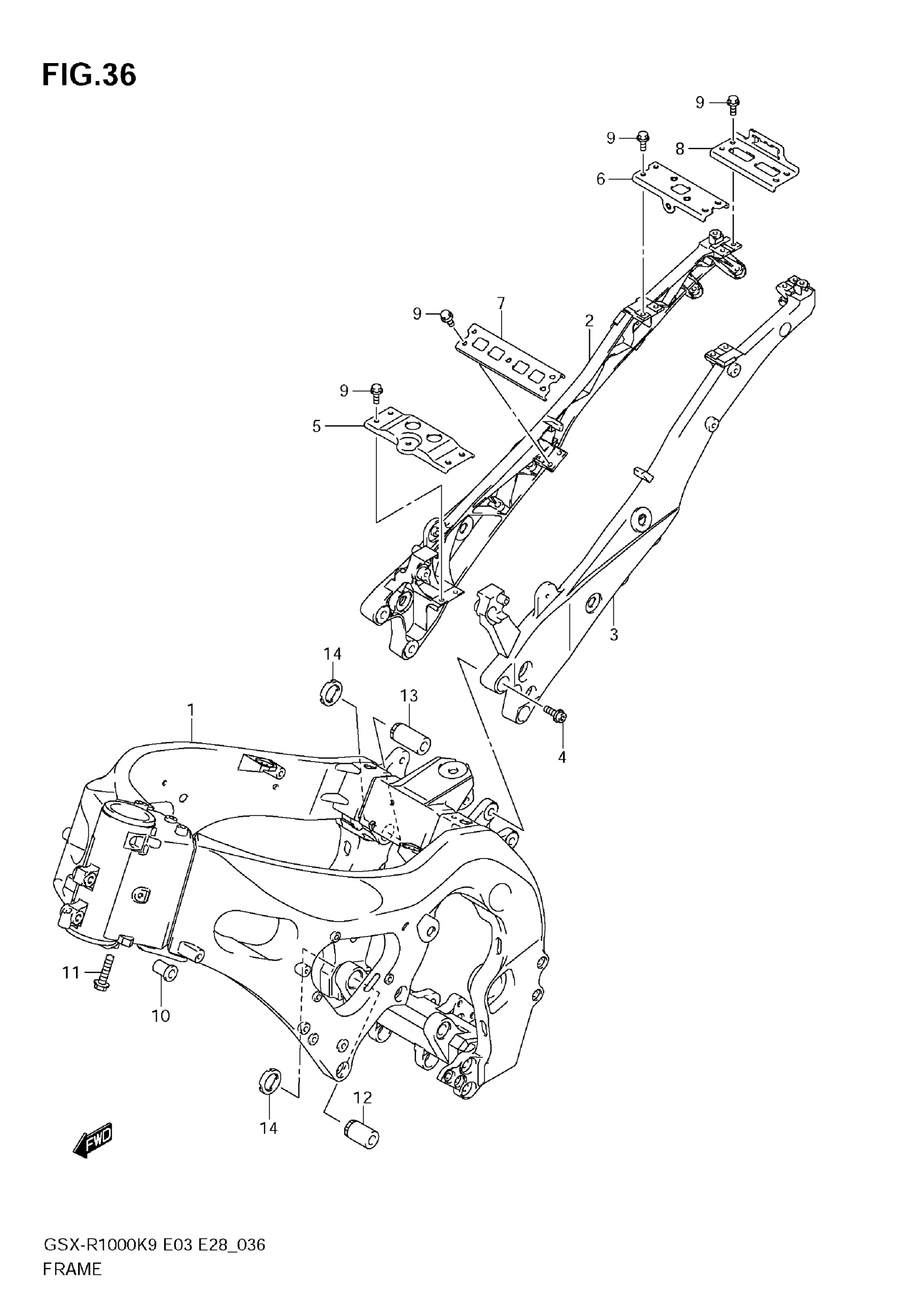

Suzuki GSX-R1000 (2009) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-47H00-YAP

Unavailable

2

RAIL, SEAT RH

41211-47H00

$527.23

3

RAIL, SEAT LH

41221-47H00

Unavailable

4

BOLT,SEAT RAIL

41233-18G20

$8.65

5

BRIDGE,SEAT RAIL FR

41770-01H00

$61.13

6

BRIDGE, UPPER

42730-47H00

$43.65

7

BRIDGE, LOWER

42741-37H00

$27.40

8

BRIDGE, REAR

42751-47H00

$27.40

9

BOLT, BRIDGE

09103-06285

$1.97

10

SPACER, MOUNT

41911-40F01

$22.56

11

BOLT, SPACER

09103-08512

$2.92

12

BOLT, ADJUST

41921-47H00

$52.60

13

BOLT, ADJUST UPPER

41921-47H10

Unavailable

14

NUT,CRANK CASE ADJUST BOLT

41922-47H00

$37.42
