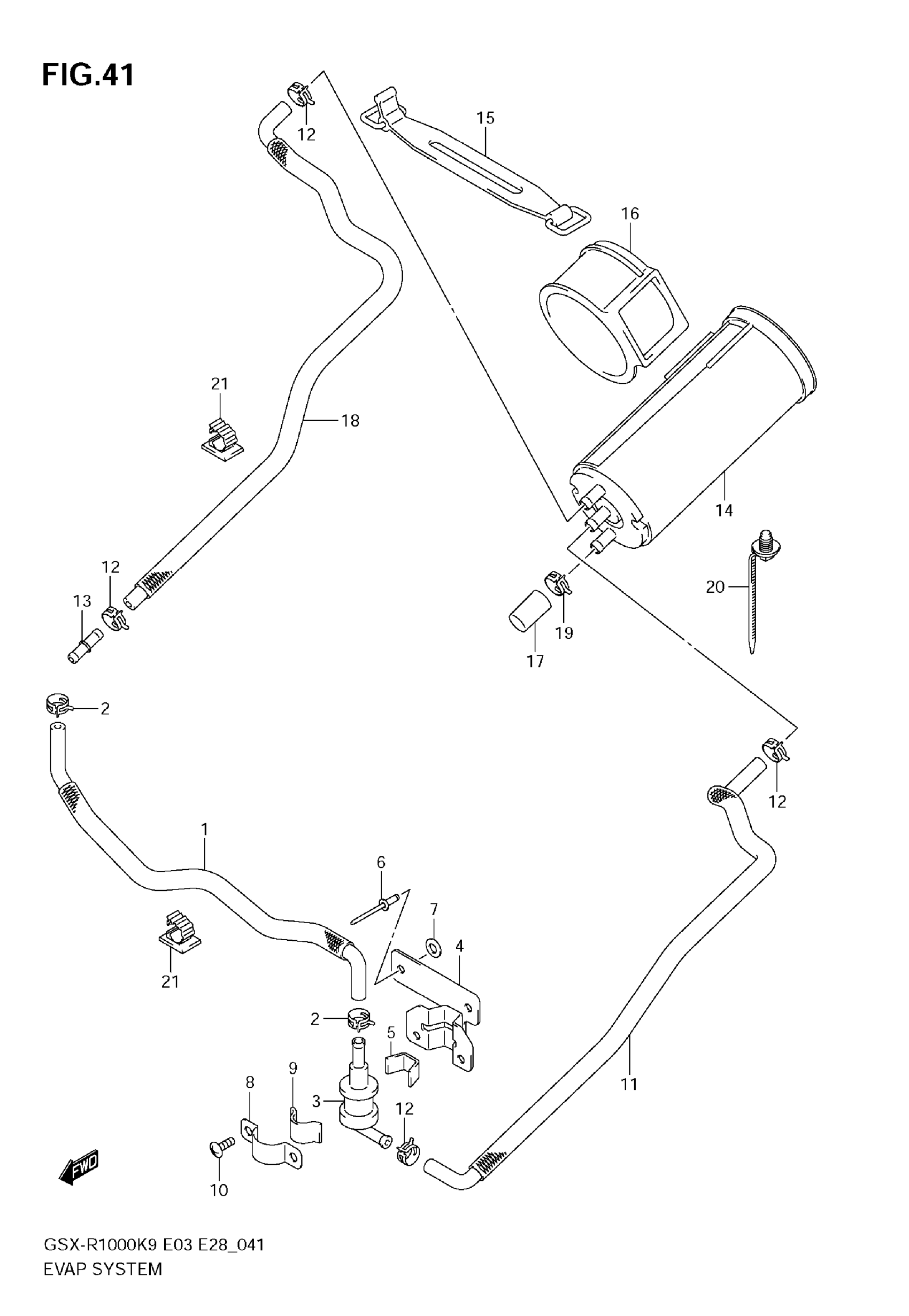

Suzuki GSX-R1000 (2009) EVAPO SYSTEM (E33) Diagram

#

Description
Price

1

HOSE, TANK BREATHER VALVE

44434-47H00

Unavailable

2

CLIP

09401-11413

$2.26

3

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

4

BRACKET, BREATHER VALVE | Includes Item(s) 5

44890-47H00

Unavailable

5

CUSHION (10X30X2)

44894-24A00

$1.72

6

RIVET

09229-04038

$1.49

7

WASHER

08322-0104A

$1.91

8

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 9

44892-24A00

$4.52

9

CUSHION (10X30X2)

44894-24A00

$1.72

10

SCREW

02142-0408A

$1.55

11

HOSE, VALVE & 2 WAY VALVE

44435-47H00

Unavailable

12

CLIP

09401-11413

$2.26

13

JOINT

09367-06009

Unavailable

14

CANISTER

17210-15H00

$305.77

15

BAND, CANISTER

44881-47H00

Unavailable

16

CUSHION, CANISTER

44883-47H00

Unavailable

17

CAP

09251-07003

$2.53

18

HOSE, PURGE

44436-47H00

Unavailable

19

CLIP

09401-12404

$2.34

20

CLAMP

09407-17403

$4.91

21

CLAMP, HOSE

09403-14311

$5.33
