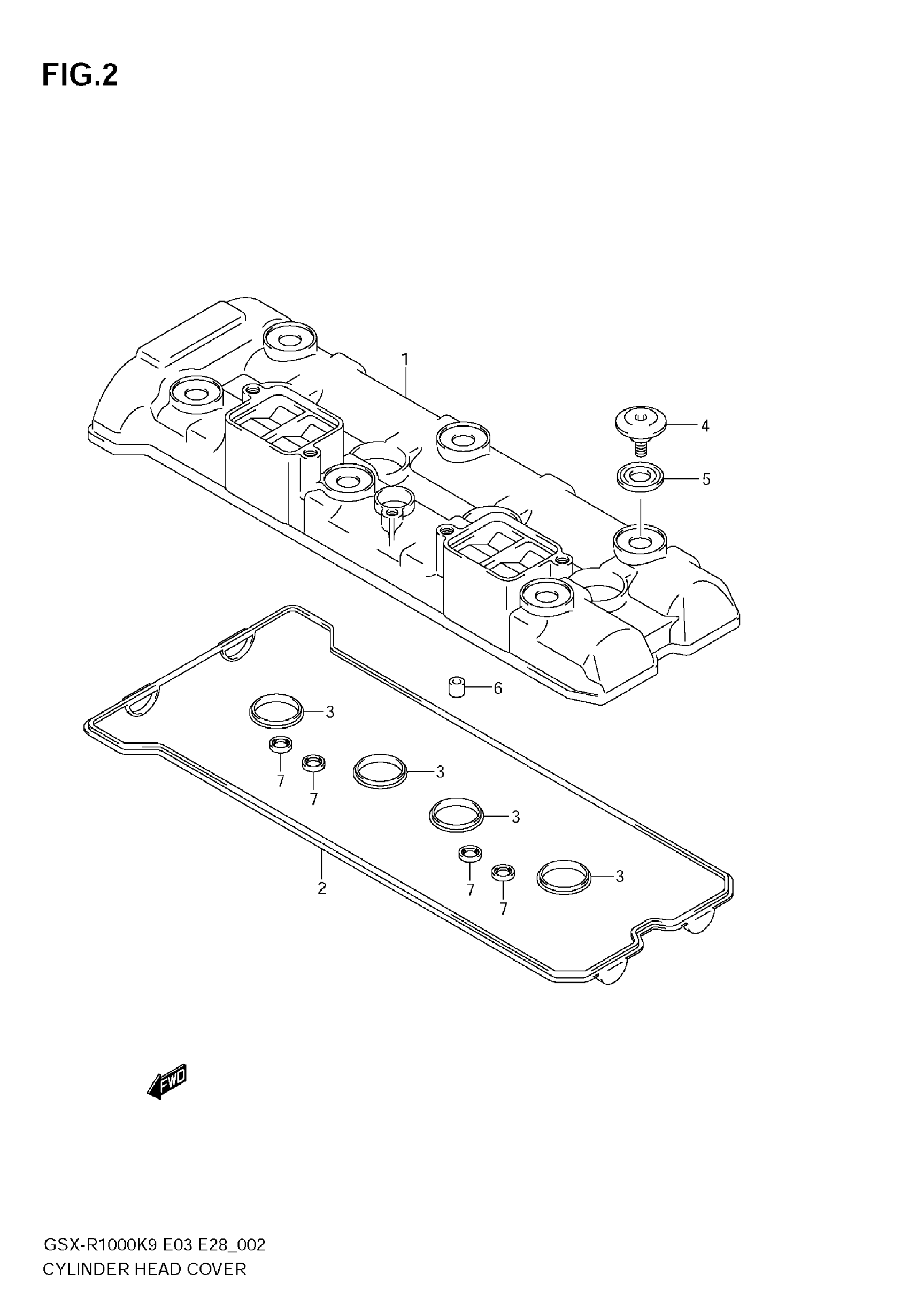

Suzuki GSX-R1000 (2009) CYLINDER HEAD COVER Diagram

#

Description

Price

1

COVER, CYLINDER HEAD

11171-47H00

Unavailable

2

GASKET, HEAD COVER NO.1

11173-35F00

$49.57

3

GASKET, HEAD COVER NO.2

11178-33E00

$6.20

4

BOLT (7X17.5) This part replaces 09106-07009.

09106-07021

$4.50

5

WASHER

11191-27E00

$4.27

6

PIN (8.2X10X13)

09206-10016

$8.04

7

GASKET, 2ND AIR PASSAGE

11182-35F10

$4.72
